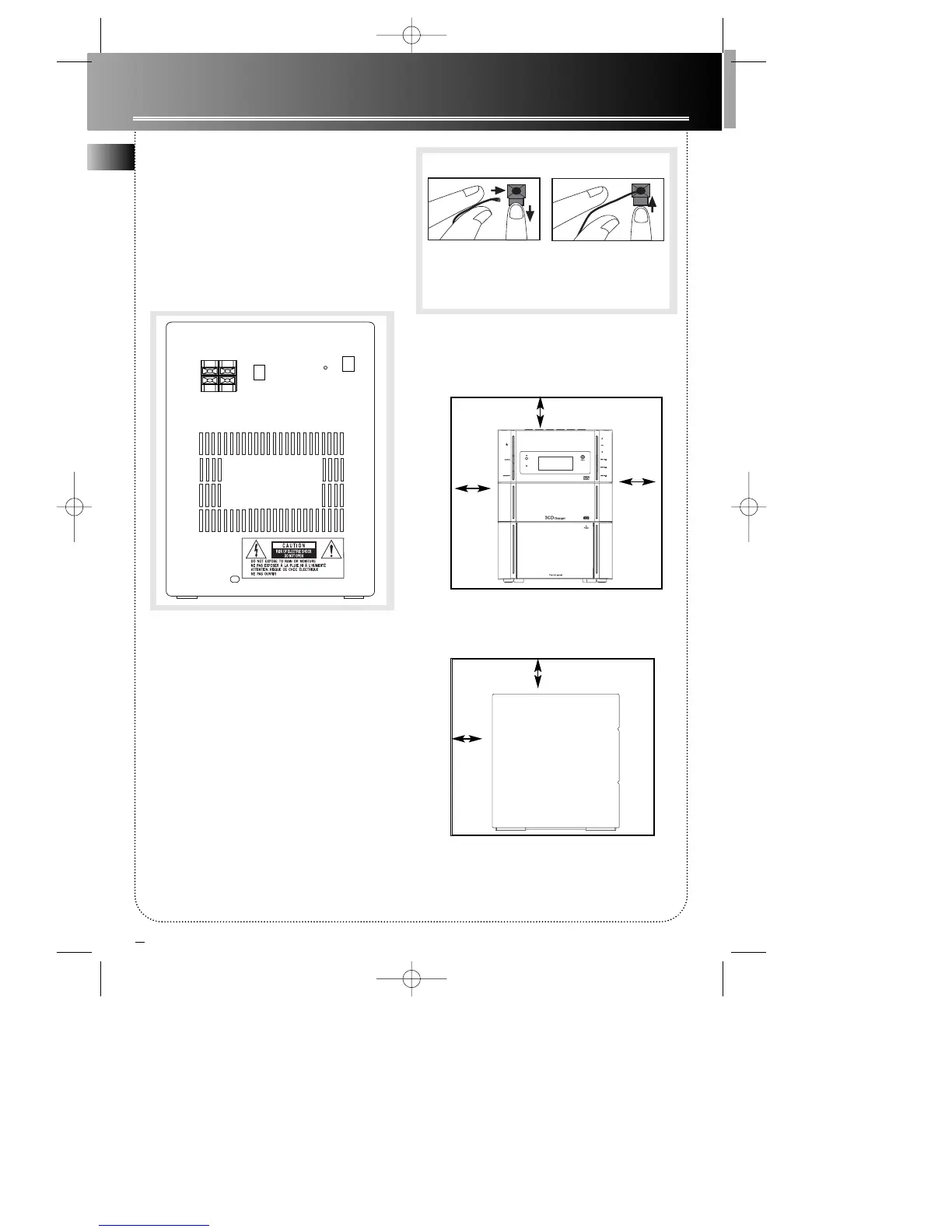

Getting Started

Unpacking the system:

You should have the following:

• one main unit (with 2 main speakers);

• one remote control;

• one user’s guide;

• one safety leaflet.

• Owner and registration Card

Back View

1. FM Pigtail Antenna

2. Main Speaker Jacks

Installation

To ensure sufficient ventilation, keep the spacings

shown below free from other surfaces:



POWER

STANDBY

STEREO



4 inches

Front View

4 inches

2 inches

Side View

SPEAKERS

8Ω

FM ANT

Release tab to lock wire in

the terminal.

NOTE: Make sure the insulation

is completely removed from the

ends of the

speaker wires at all connection

points.

Speaker

Wire Connection

Push terminal tab

down to

insert wire.

RS2005/07 EN rev.1 6/14/02 8:38 AM Page 6

RCA RS2005 User Manual
