RCA RTS7131B User Manual

4
EN

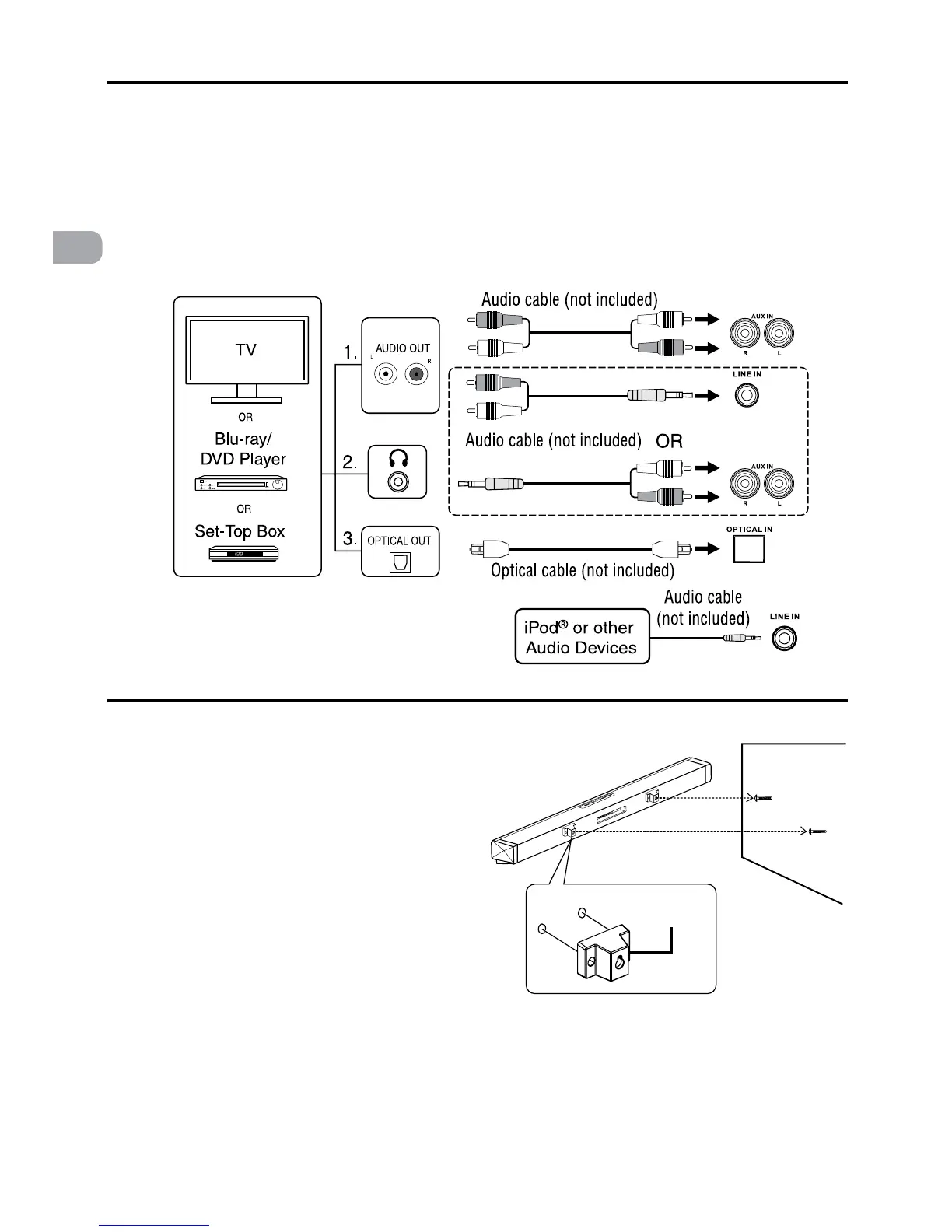

CONNECTIONS
CONNECT AUDIO THROUGH AN ANALOG AUDIO CABLE
1. ConnectanAudioCable(notincluded)fromtheAUXINjackstotheAUDIOOUTjacksofyourTV,Set-Top
BoxorBlu-ray/DVDPlayer.
2. Connecta3.5mmAudioCable(notincluded)fromtheLINEINjacktotheAUDIOOUTjacksorfromtheAUX
INjackstotheHeadphoneOutjackofyourTV,Set-TopBoxorBlu-ray/DVDPlayer.
CONNECT AUDIO THROUGH A DIGITAL OpTICAL CABLE
3.ConnectanOpticalCable(notincluded)fromtheOPTICALINjacktotheOPTICALOUTjackofyourTV,Set-
TopBoxorBlu-ray/DVDPlayer.
Note:OPTICALINonlysupportsPCMsignal.YoumayneedtoactivatePCM(Downmix)onyoursourcedevice,
e.g.TV,Set-TopBoxorBlu-ray/DVDPlayer.
Plugoneendofa3.5mmAudioCable(notincluded)
intotheLINEINjackandotherendintoyouriPad®,
iPhone®,iPod®orotheraudiodevices.
pLACEMENT
TheSoundbarcanbeplacedfreestandingonatableormountedonawall.
pLACING THE SOUNDBAR ON A WALL
TheSoundbarrequiresadditionalmountinghardware
thatmustbepurchasedseparately.
1. InstalltheWallMountBracketstotheSoundbaras
shown.
2.PlacetheWallMountTemplate(included)onthe
wall and then mark the locations of the screw
holes.
3.Drill the screws (not supplied) into the wall
carefully.
4.GentlyhangtheSoundbarontothescrewsinthe
wall.
Note:Allow2mmspacebetweenscrewandthewall
forttingthewallmountbracket.
CAUTION:
• WerecommendthatWall-mountingbecarriedout
by a professional. The wall mount bracket “key-
holes”areintendedforusewith#8(Imperial)or
M4 (Metric) with head size: Diameter 7.5 - 9.4
mm.Additionaloralternativepartsmaybeneeded
forcertaintypesofwallconstructions.
• Make sure that the wall-mount is xed securely
enough so that it meets safety standards.
• Allowatleast2”(5cm)separationinalldirections
betweentheSoundBarandotherAVequipment
(suchasyourTVorSet-TopBox).
• It is recommended that all cables (AC adapter
andAudiocables)beconnectedtotheSoundBar
beforeplacingitonthewall.
Wall Mount
Bracket
