52
Connections
Connecting Your VCR
Refer to these pages to help you connect your VCR.

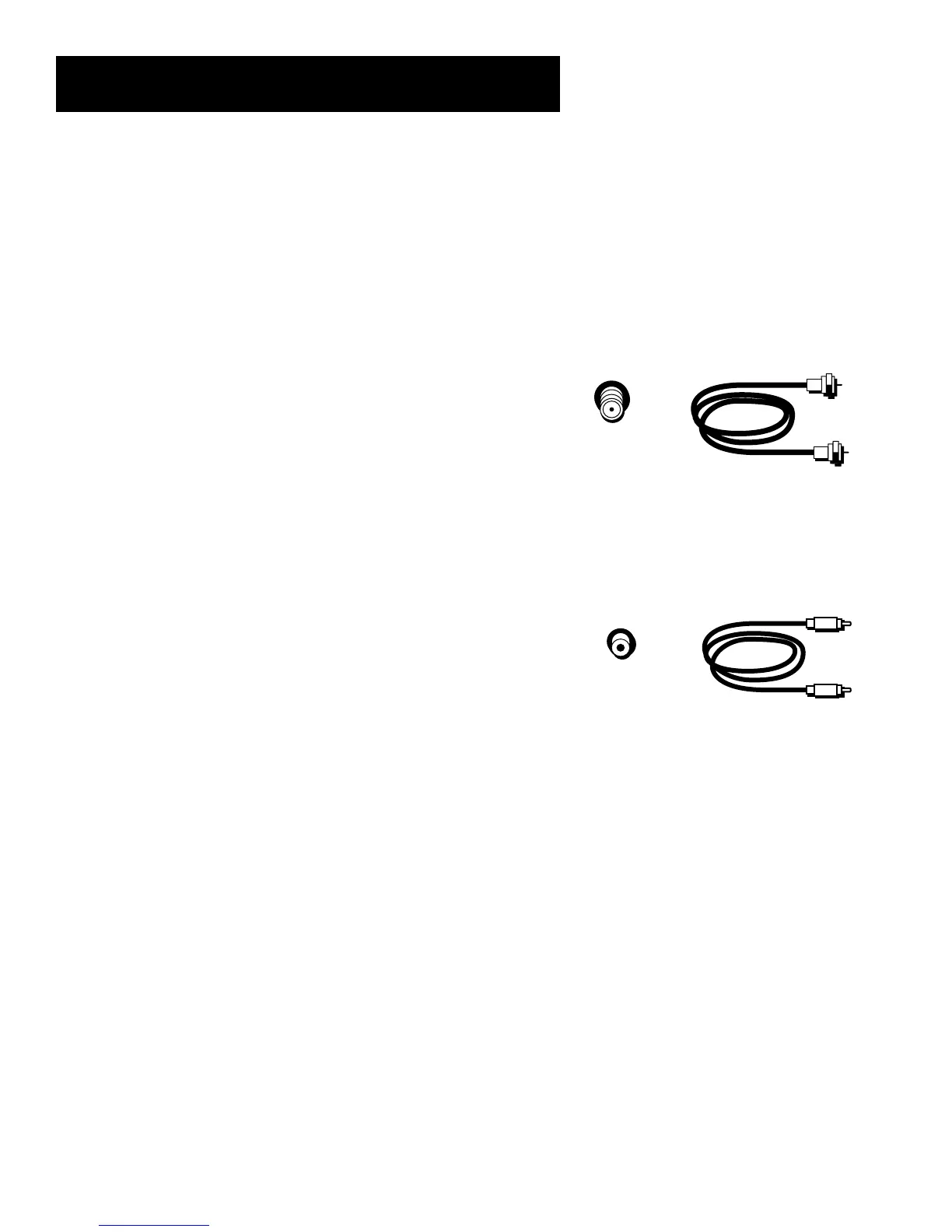

Jacks and Cables
RF Jacks and Coaxial Cables (F-type)
The RF jacks provide good picture and mono sound quality, and
must be used if audio/video connections are not available for
your TV.
These jacks are required for antenna or cable-TV connections.
The RF jacks on the VCR are labeled ANT. IN and RF OUT. The
coaxial cable supplied with your VCR is used to connect the VCR’s
RF OUT jack and your TV’s antenna input.
Audio/Video Jacks and Cables (RCA-type)
The AUDIO/VIDEO jacks provide very good picture quality and
stereo sound, and can be used if your TV has audio/video input
jacks. For more information about the TV’s Video Input Channel,
see page 68.
These jacks are used for most audio/video connections between
components. The VCR’s AUDIO/VIDEO jacks are color coded
(yellow for video and red and white for audio). If your TV only
has one input for audio, you may need a Y-adapter to hear sound
from both channels.
RF Jack
Audio/Video Jack
To Next Page
