RZ/T2M Group RZ/T2M Motor Solution Board Hardware Manual
R01AN5986EJ0100 Rev.1.00 Page 20 of 30
Jul.31.21

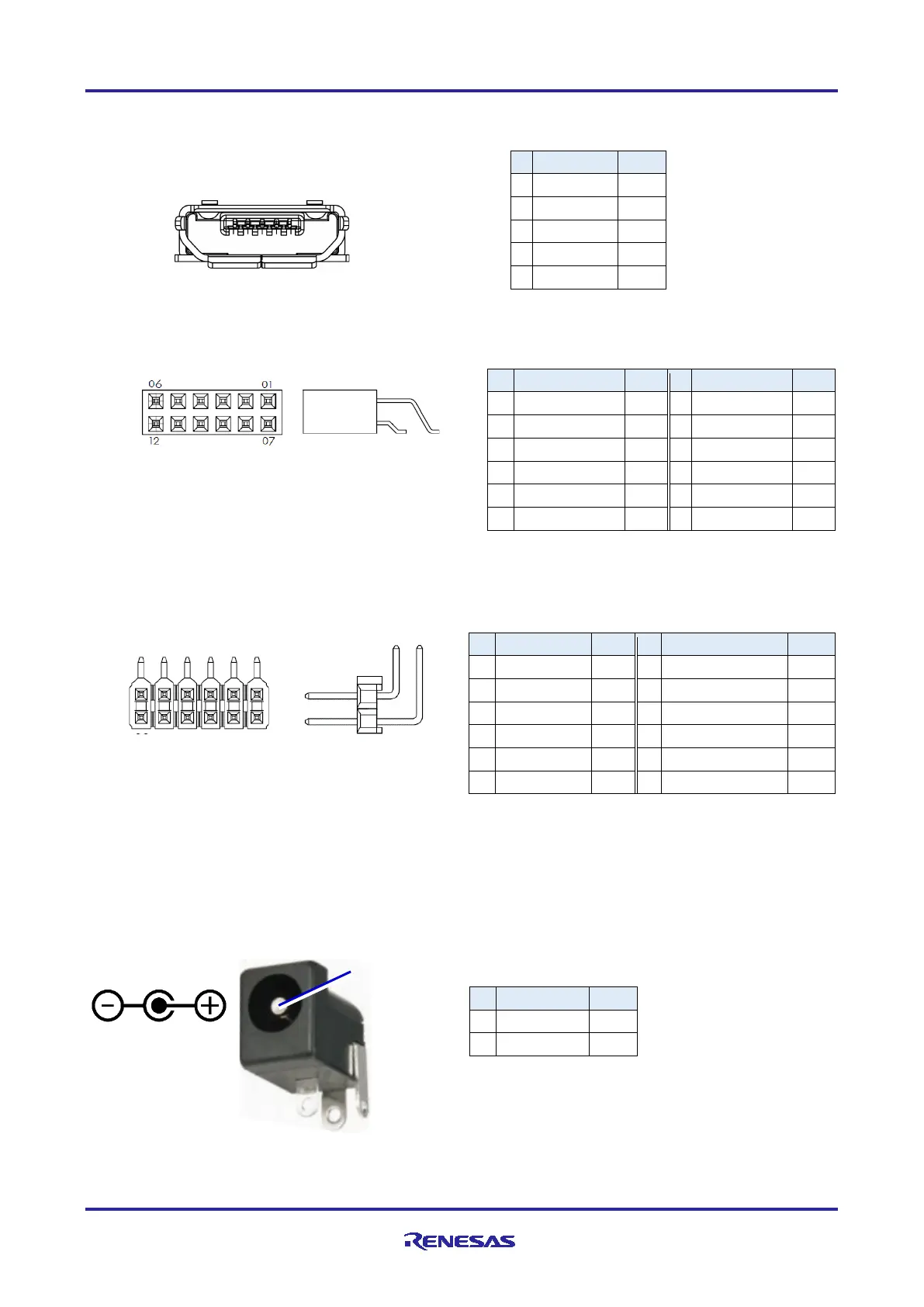

■USB Micro B (P0400)
FCI 10118192-0001LF
■Pmod-Type 6A (P0700)
SAMTEC SMH-106-02-L-D
■Pmod- Type 2A (P0701) [Through holes]
SAMTEC TSW-106-25-L-D-RA
■DC24V DC Power Jack (P1701)
Kycon KLDX-0202-A
Caution: When supplying 24V DC from the inverter board, do not apply 24V DC to this connector.
No
Name
I/O
1
USB_VBUS
I
2
USB_DM
I/O
3
USB_DP
I/O
4
USBID
I
5
DGND
-
No
Name
I/O
No
Name
I/O
1
INT_6A_RZ
I/O
7
RTS0#_SS0#
I/O
2
RESET_6A_RZ
I/O
8
TXD0_MOSI0
O
3
SCL0
O
9
RXD0_MISO0
I
4
SDA0
I/O
10
PM7_SCK0
I/O
5
DGND
-
11
DGND
-
6
VDD3.3V_RZ
-
12
VDD3.3V_RZ
-
No
Name
I/O
No
Name
I/O
1
SSL30
O
7
INT_2A_RZ
I/O
2
MOSI3
O
8
RESET_2A_RZ
I/O
3
MISO3
I
9
PMOD_PG_4_RZ
I/O
4
RSPCK3
O
10
PMOD_PG_7_RZ
I/O
5
DGND
-
11
DGND
-
6
VDD3.3V_RZ
-
12
VDD3.3V_RZ
-
No
Name
I/O
1
DC24V
I
2
GND
-
① ⑤
⑦
①
⑫
⑥
①
