6 • Electrical wiring
6.1 • Connection to a three position switch
Measure whether the desired airflow is achieved with the chosen configuration.
If necessary, adapt the configuration and choose a lower/higher pressure curve.
Connect maximum one switch on each Cbase
®
.
Position 1: 1.6V
Position 2: 2.81V
Position 3: 4V
Position 4: 5.21V
Position 5: 6.43V
Choose 3 positions out of 1-5
(1-5 performance curves)

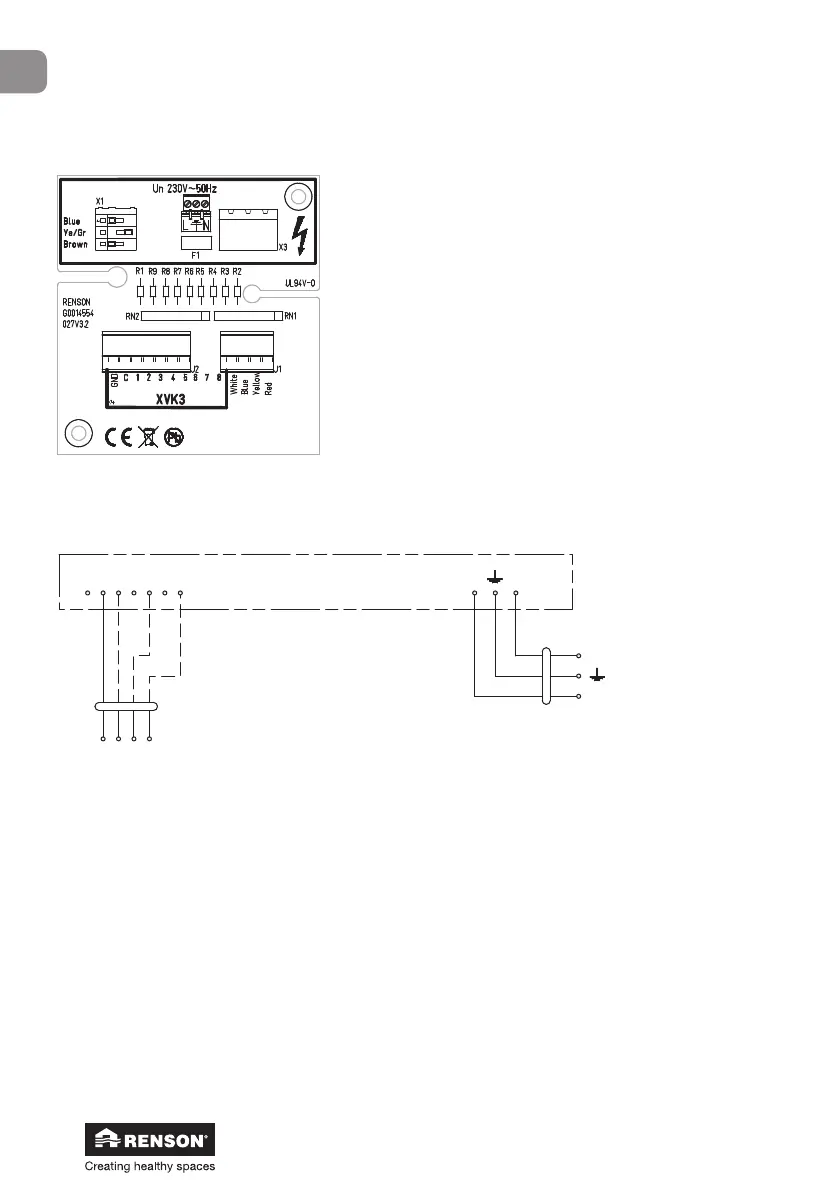

C 1 2 3 4 5 6 7 8
GND
N L
C 1 2 3
XVK3
Max 1,5mm²
Max 0,5mm²
L
N
230V ~ 50Hz
