MULTIPLE INSTALLATIONS
37

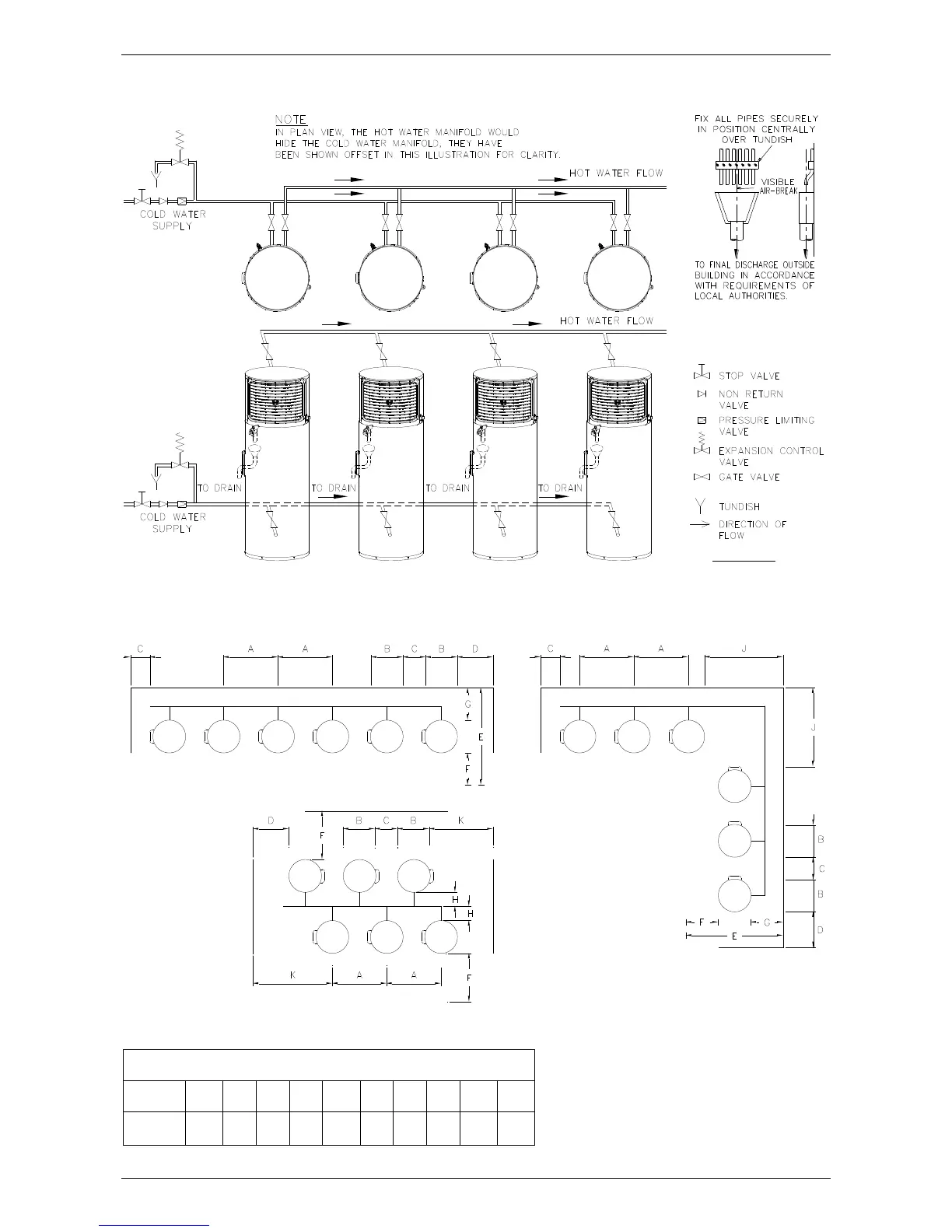

TYPICAL INSTALLATION MULTIPLE HEAT PUMP WATER HEATERS
MULTIPLE HEAT PUMP WATER HEATERS
TYPICAL INSTALLATION
LEGEND
INSTALLATION DIMENSIONS MULTIPLE HEAT PUMP WATER HEATERS
MULTIPLE HEAT PUMP WATER HEATERS INSTALLATION DIMENSIONS
Notes
Installation Layout Minimum Dimensions
1. A minimum clearance of 900 mm (C*, F* & G*)
should be left in front and at the sides of the
water heater for access, servicing and water
heater removal.
Model
A
B
C *
D
E
F *
G *
H
J
K
310 HAV
1545
645
900
900
2445
900
900
300
1670
1675
2. Air flow through the heat pump must be parallel
to the adjacent heat pump water heater.
TPR Valve Drain Line
Common Discharge
Point
In Line Manifold
Back to Back Manifold
Angle Manifold
