HEAT PUMP AND TANK ASSEMBLY
STORAGE TANK AND HEAT PUMP MODULE
The heat pump water heater is made of two main components, the storage tank and the heat pump module.
For transport and handling (weight) purposes both items are shipped separately and designed to be
assembled at the installation site. The water heater must not be operated until both components are
assembled. Both the storage tank and heat pump module must sit on a slab or solid base.
HEAT PUMP MODULE
The heat pump module is shipped in a box containing two hand holes to facilitate easy handling lifting. The
heat pump module is to be mounted against the side of the storage tank and must be fully supported by a
slab or solid base.
STORAGE TANK
The storage tank is designed to receive the heat pump module. There are two water fittings located at the
side of the storage tank to which water hoses from the heat pump module are connected. A power cable and
a tank sensor cable also protrude from the lower cover of the storage tank. These are connected to the heat
pump module during the assembly procedure.

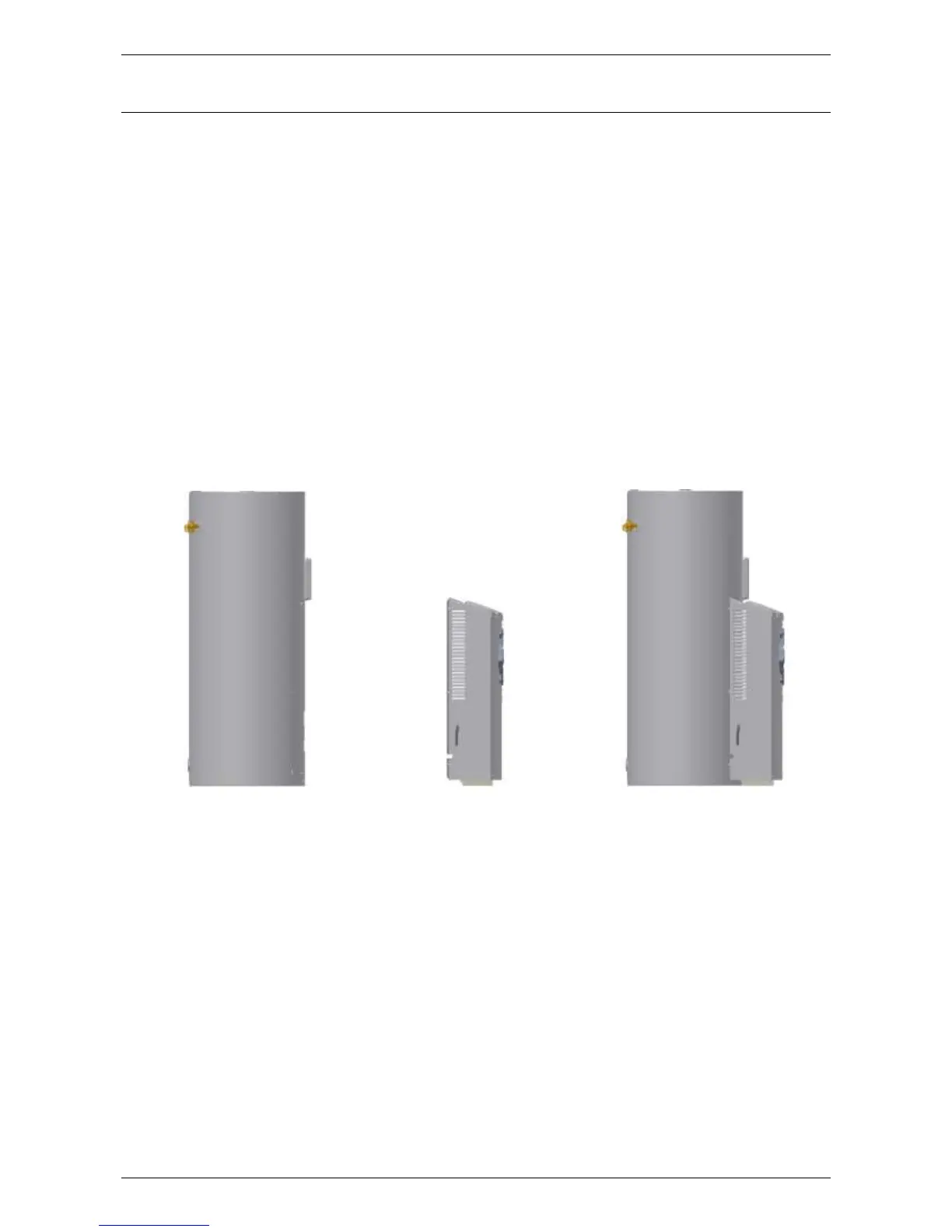

storage tank heat pump module heat pump water heater
