Replacement Parts.
For 30, 38, 40, 50, and 60 gallon models using natural or LP gas.
Instructions For Placing a Parts Order
All parts orders should include:
The model and serial number of the
water heater from the rating plate.
Specify type of gas (natural or LP)
as marked on the rating plate.
Part description (as noted below) and
number of parts desired.
CAUTION: For your safety, DO
NOT attempt repair of gas piping,
gas control (thermostat), burners,
vent connectors or other safety devices.
Refer repairs to qualified service
personnel.

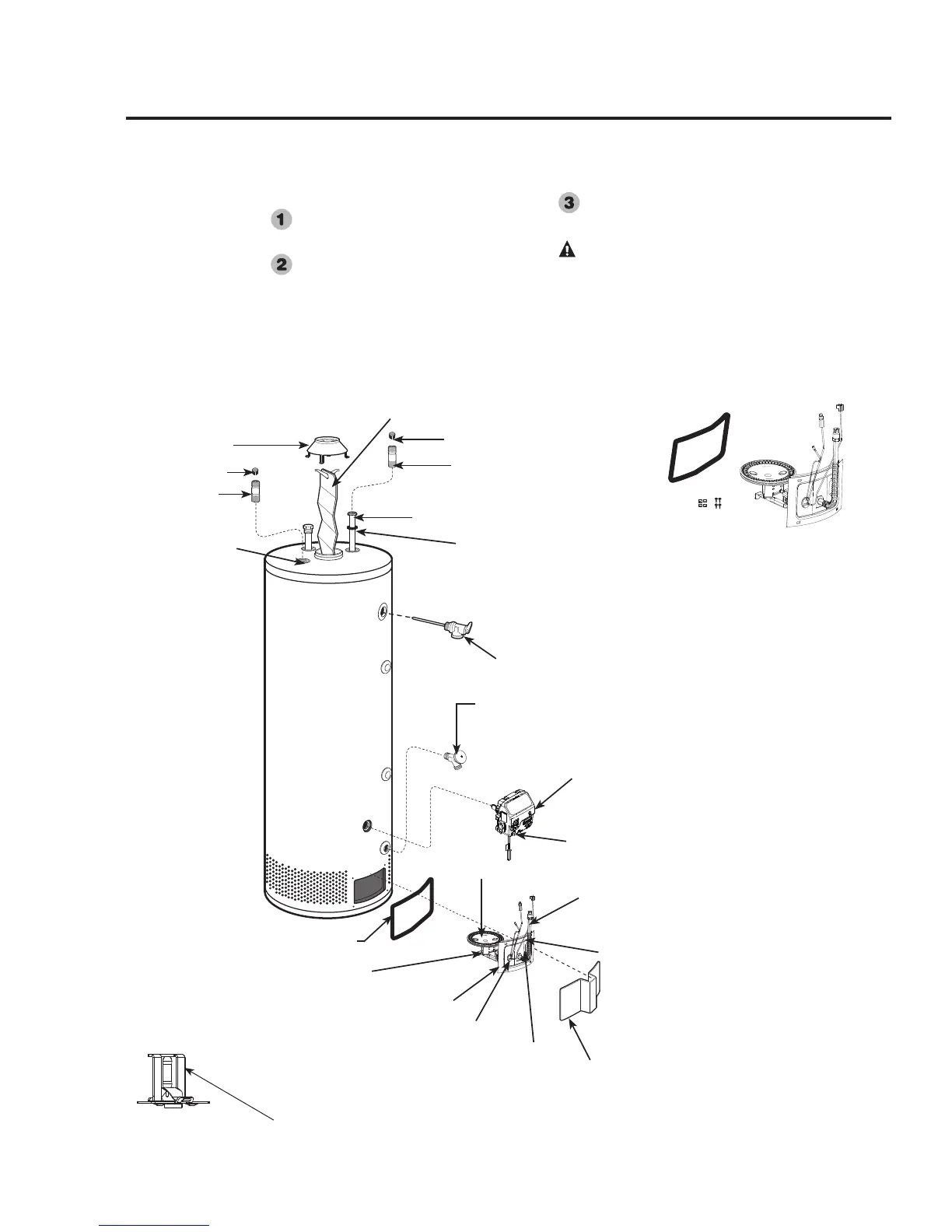

*Burner Assembly Kit
The kit provides extra speed clips
and tamper resistant screws.
**Not supplied with all models.
*Combustion Shut-off Device (enlarged view)
Located inside the combustion chamber.
Draft hood
Flue baffle and hanger
Anode rod
**Heat Trap
**Heat Trap
**Nipple
**Nipple
Dip tube
Dip tube gasket
Drain valve
Temperature and
pressure relief valve
*Burner supply tube
*Burner
Jacket Door
*Burner Access Door
*Burner Access Door Grommet
*Sight Glass
*Burner Access Door Gasket
*Thermopile
*Burner orifice
Piezo Ignitor Button
Combination Gas Control
(Thermostat)
