Refrigerant Circuit Information
RP17**H Series
23

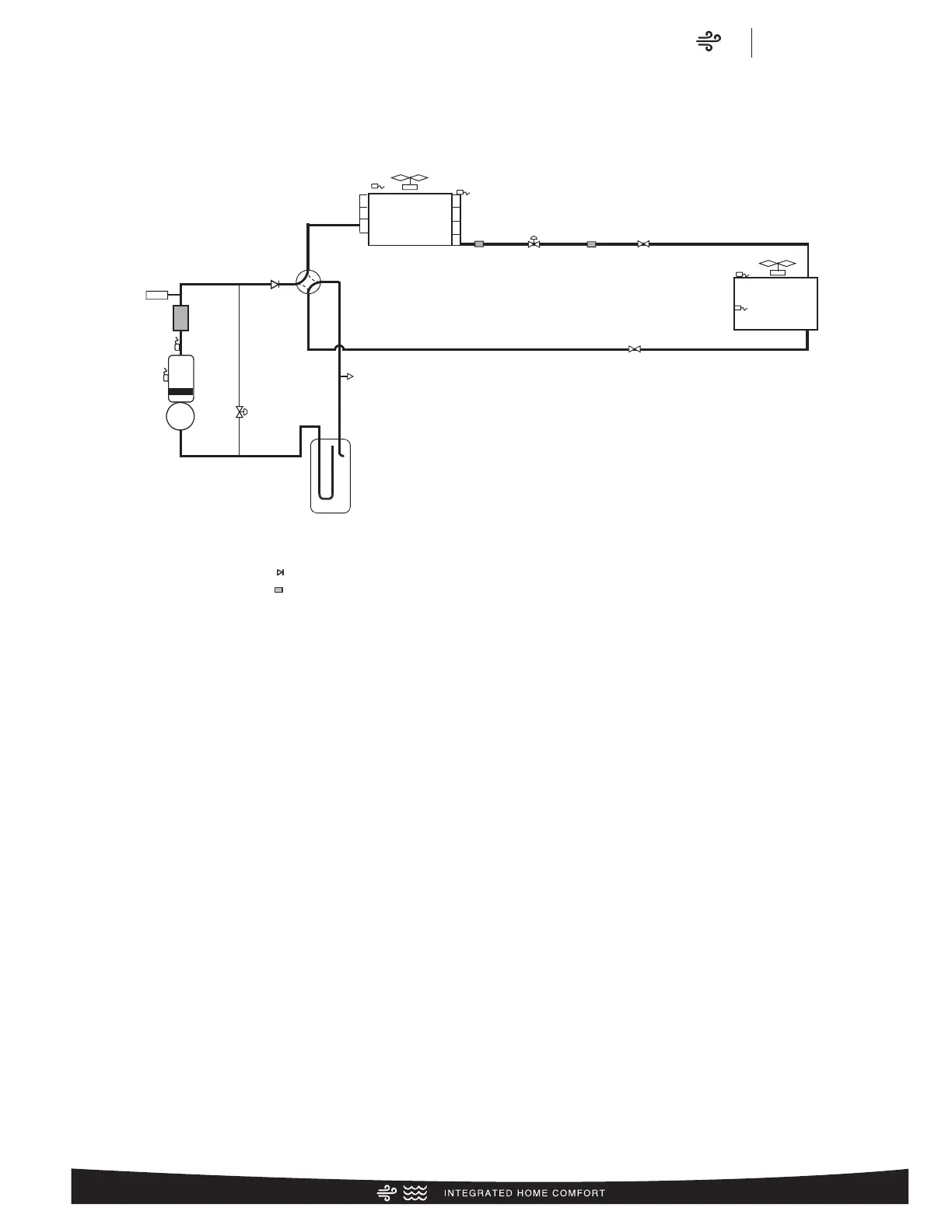

Refrigerant Circuit Information—RP1736HJVXA and RP1748HJVXA
INV
INDOOR UNIT
OUTDOOR UNIT
FAN
FAN
HEX
HEX
HEX
EEV
3WV
4WV
MUFFLER
CMP
INV
HPS
BELT
HEATER
EEV
CMP
ACM
3WV
FUSIBLE PLUG
ACM
TH
6
TH5
TH4
TH3
TH1
TH2
: CHECK VALVE
: STRAINER
CMP : COMPRESSOR (INVERTER TYPE)
HEX : HEAT EXCHANGER
ACM : ACCUMULATOR
HPS : HIGH PRESSURE SENSOR
4WV : 4-WAY VALVE
3WV : 3-WAY VALVE
EEV : ELECTRIC EXPANSION VALVE
TH
1 : THERMISTOR (SHELL)
TH
2 : THERMISTOR (DISCHARGE TEMPERTUR THERMISTOR)
TH
3 : THERMISTOR (OUTDOOR TEMPERATURE)
TH
4 : THERMISTOR (HEAT EXCHANGER OUT TEMPERATURE)
TH
5 : THERMISTOR (ROOM TEMPERATURE)
TH
6 : THERMISTOR (HEAT EXCHANGER MED TEMPERATURE)
