Triton Service Manual SVC1020T ; Rev 4
80 and 100 gallon chassis
Triton Servicing: Burner Assembly
54

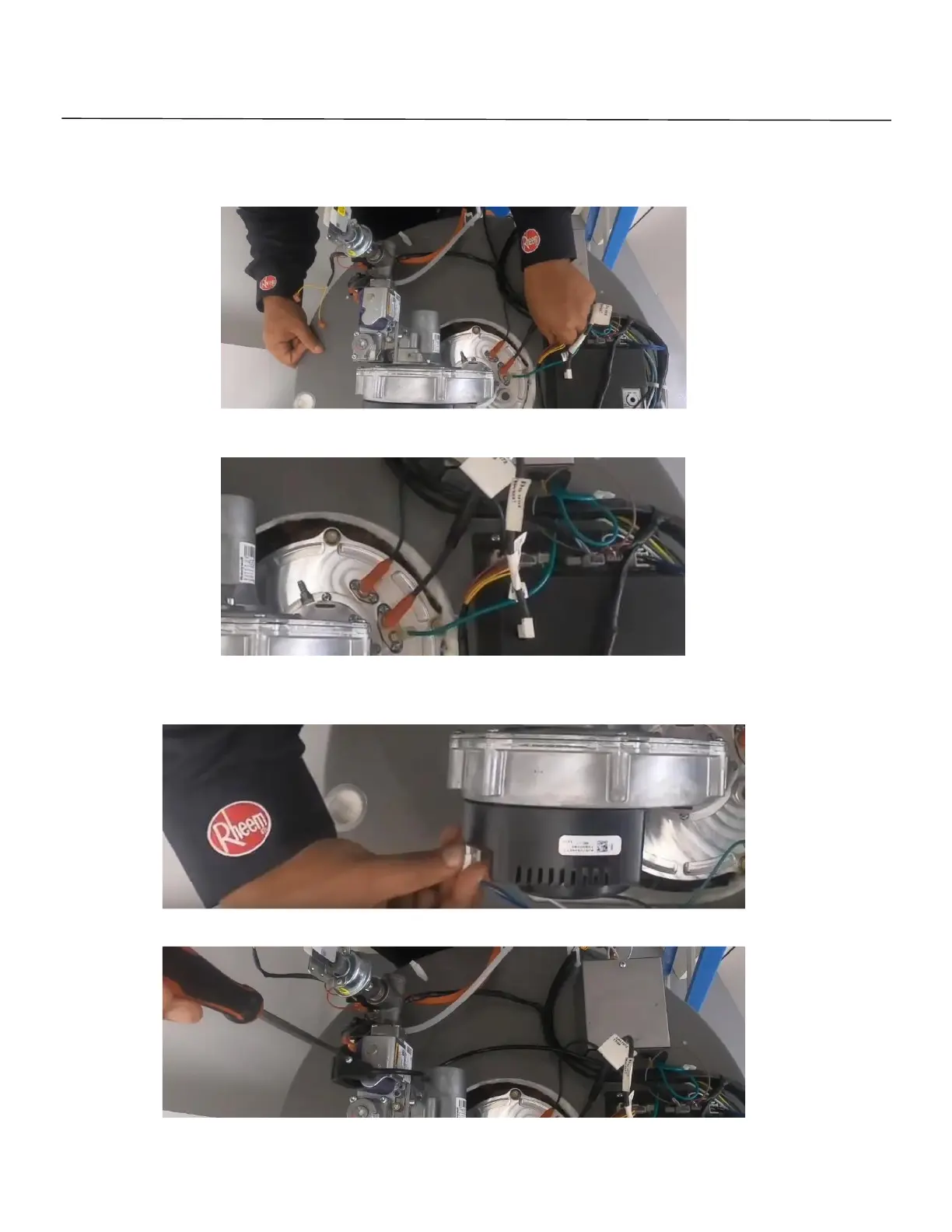

13. Reconnect the ground to the igniter and reconnect the lead to the control box
14. Reconnect the lead from the flame rod sensor to the control box.
15. Reconnect the two leads to the low gas pressure. (It does not matter which lead is connected to which tab.)
16. Reconnect the two harnesses to the front of the blower.
17. Reattach the cable harness to the top of the valve and secure it with the screw.
18. Reattach the intake hose to the front of the gas valve and the POF switch to the bottom of the blower.
