Triton Service Manual SVC1020T ; Rev 4
80 and 100 gallon chassis

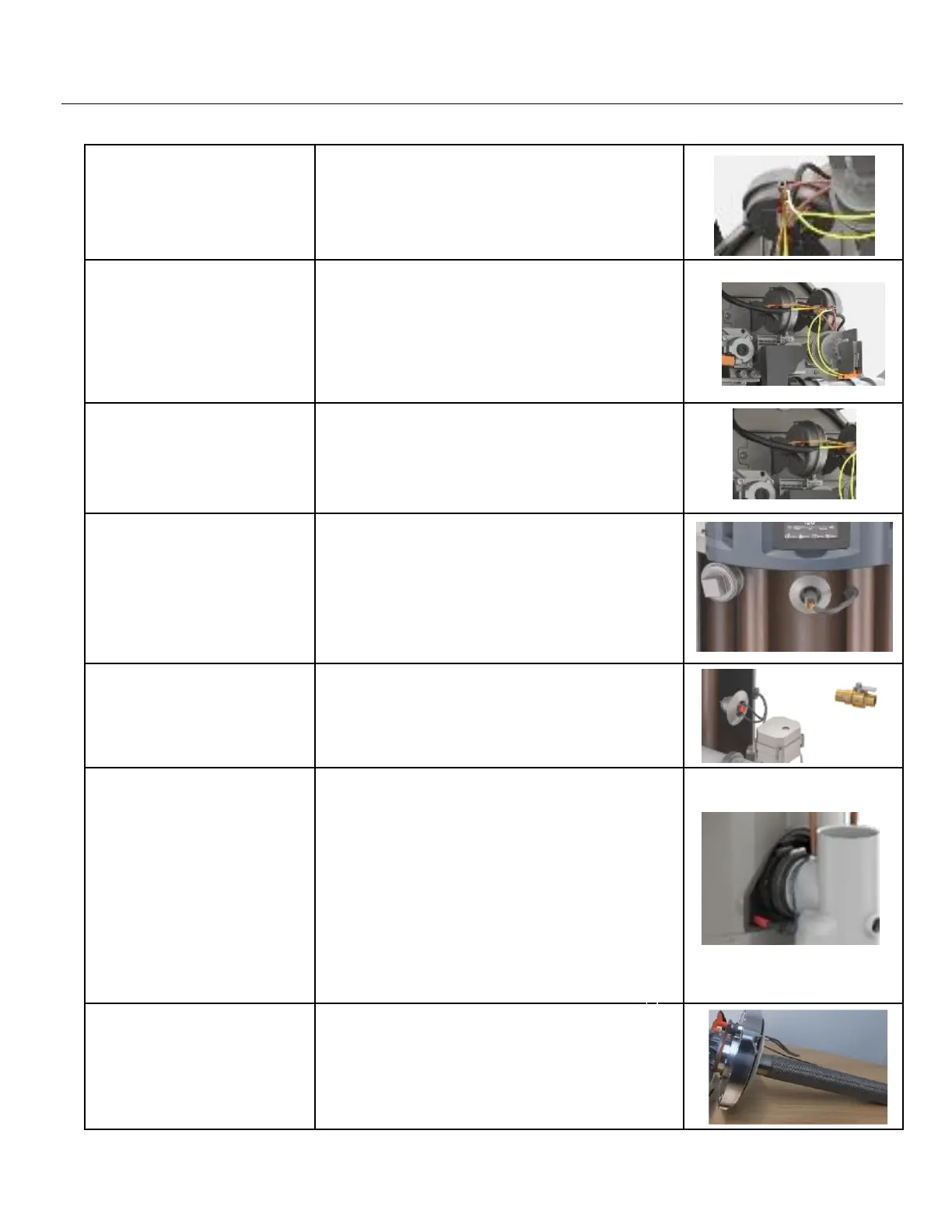

Proof of Fan (Pressure Switch)
The PoF pressure switch confirms the blower motor is
running. Each switch is available individually.
Blocked Outlet (Pressure Switch)
The blocked outlet pressure switch is a normally closed
contact that opens with a rise in pressure. Each switch
is available individually
Blocked Inlet (Pressure Switch)
The blocked inlet pressure switch is a normally closed
contact that opens with a fall in pressure.
Each switch is available individually
Water Temperature and ECO
Probe
This probe provides the water temperature to the
controller; and also provides an energy cut off in the event
the water gets too hot (>200
0
F).
Lower Temperature Probe
This prove provides the lower tank temperature to the
controller.
Leak Sensor
This sensor detects water when 2.5-5mL of water is
present. It is installed in the bottom pan of the unit and
has a splash proof guard above it so tank condensation
or sprayed water will not activate it. Unit can operate
with sensor unplugged but the display will flash an
alert stating that the leak sensor is disconnected.
Factory setting for leak detection is to “Alert Only”.
Can be changed to “Disable”(Shut down the unit if a
leak is detected.)
Burner
The burner in a combustion chamber maintains a
controlled flame by giving the flame a structure to rest
on.
Parts
