26
Installing a Remote Control
Device on Analog Heaters
Wiring
For a 2-wire control, use the TOTAL and COMMON
connections on the heat pump pool heater wiring
block.
For a 3-wire control, use the COMMON, SPA and
POOL connections on the heat pump pool heater
wiring block.
Heater Settings
1. To operate the heater using a 2-wire remote con-
trol device, simply switch the Spa-Remote-Pool
knob to the Remote position and make sure the
heater is enabled on the remote control device.
2. To operate the heater using a 3-wire remote con-
trol device, simply switch the Spa-Remote-Pool
knob to the Remote position and set the tempera-
ture for pool and spa.
Installing a Remote Control
Device on Digital Heaters
Wiring
For a 2-wire control, use the TOTAL and COMMON
c
onnections on the heat pump pool heater wiring
block.
For a 3-wire control, use the COMMON, SPA and
POOL connections on the heat pump pool heater
wiring block.
Heater Settings
1. Make sure the heater is disabled on the remote
control device. Then, push the SET key until POL
is displayed. Push the DOWN arrow key until OFF
is displayed. Wait until a temperature is displayed
before beginning the next step.
2. Push the SET key until SPA is displayed, then
push the UP arrow to 104°F. Wait until a tempera-
ture is displayed before beginning the next step.
3. Push the SET key until P_S is displayed, then
push the DOWN arrow until POL is displayed.
Wait until a temperature is displayed before begin-
ning the next step.
4. Finally, enable the heater on the remote control
device. When there is a call for heat, the heater
display will show SPA. When the heater is dis-
abled, the display will show POL.

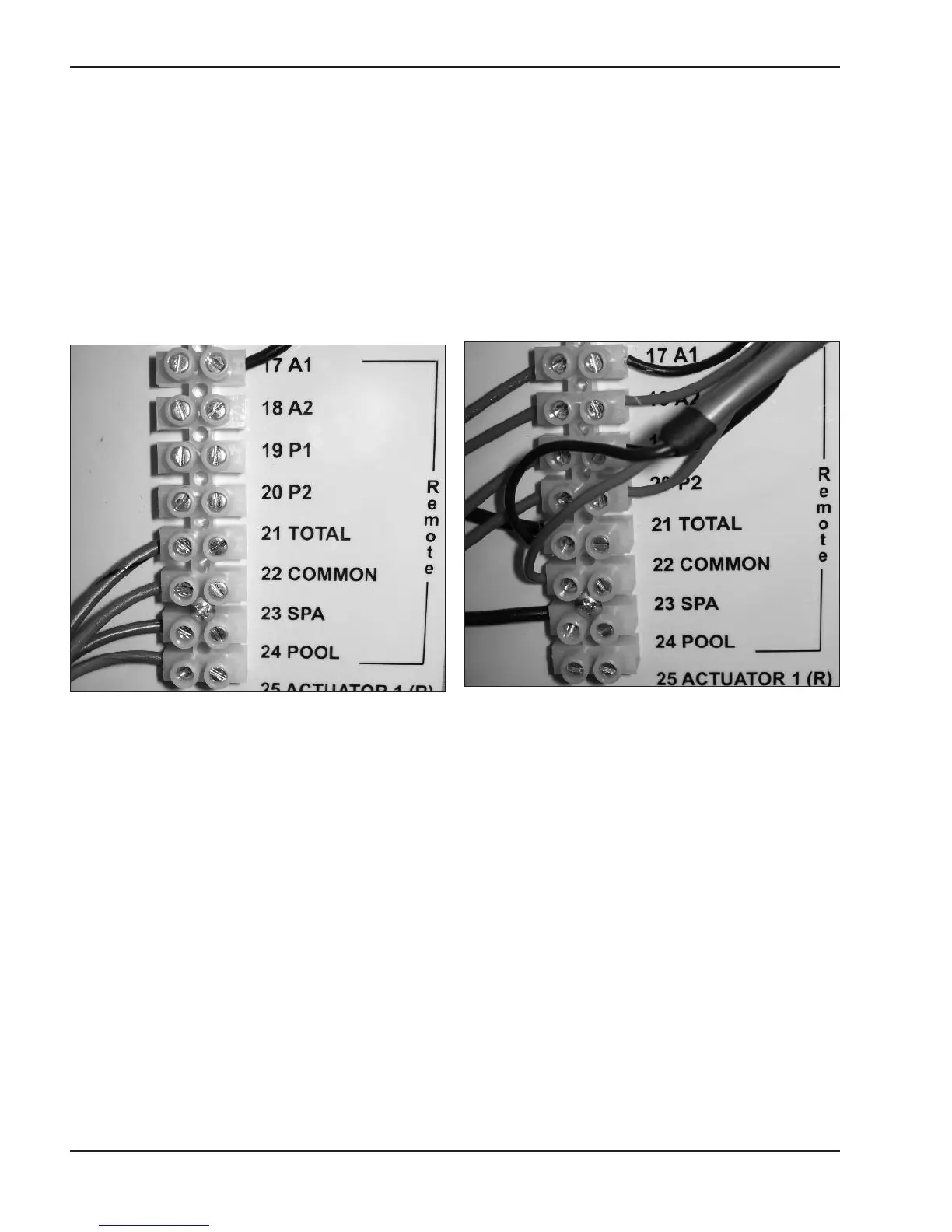

Fig. 10: Heater Wiring Block — Analog Heaters
Fig. 11: Heater Wiring Block — Digital Heaters
