Replacement Parts.
For 48, 63, 75, and 98 gallon models using natural or LP gas.
Instructions For Placing a Parts Order
All parts orders should include:
The model and serial number of the
water heater from the rating plate.
Specify type of gas (natural or LP)
as marked on the rating plate
Part description (as noted below) and
number of parts desired.
CAUTION: For your safety, DO
NOT attempt repair of gas piping,
gas control (thermostat), burners,
vent connectors or other safety devices.
Refer repairs to qualified service
personnel.

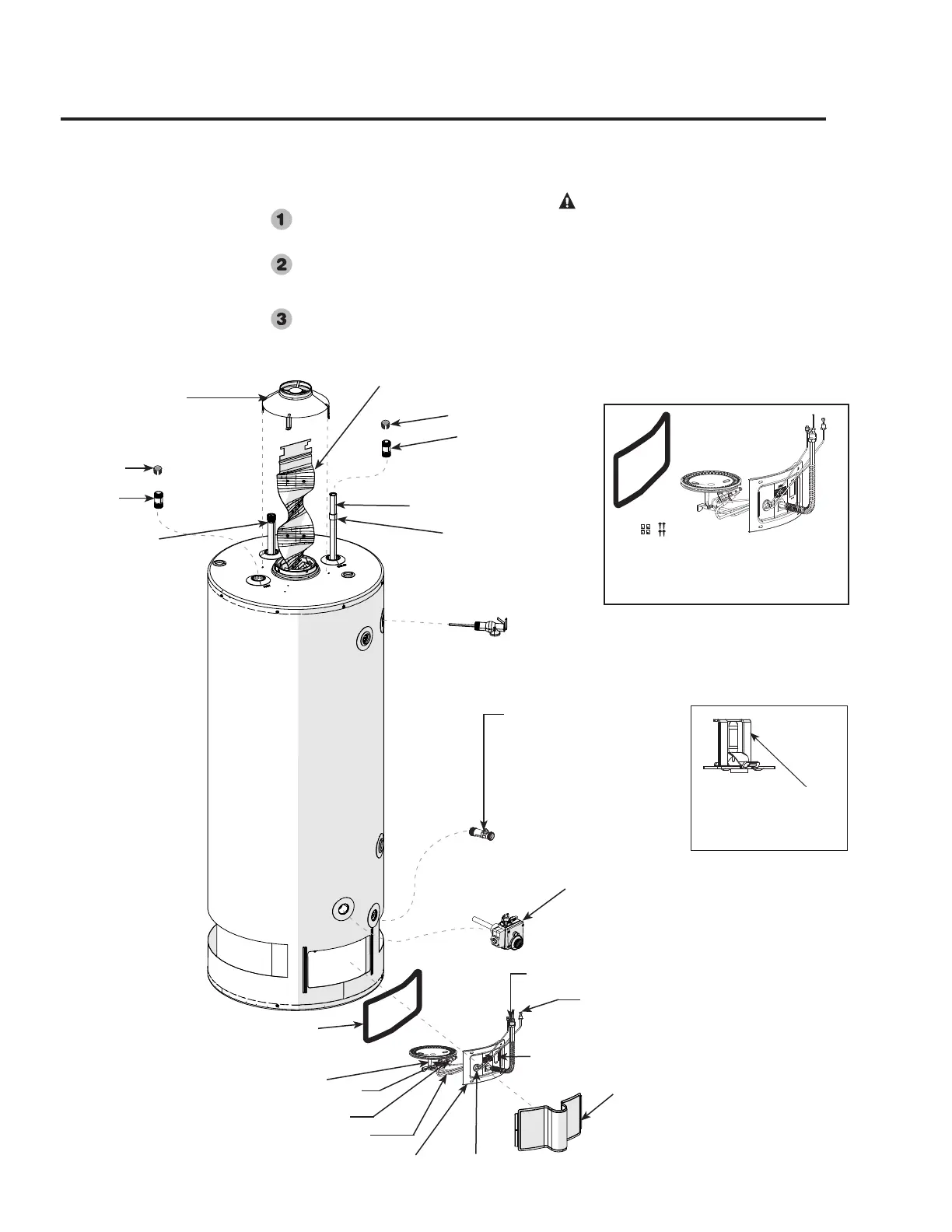

*Thermocouple
*Pilot Burner and Piezo Electrode
*Burner supply tube
*Pilot Supply Tube
*Piezo Ignitor Wire
*Burner Assembly Kit
The kit provides extra speed clips
and tamper resistant screws.
**Not supplied with all models.
23
Draft hood
Flue baffle and hanger
Anode rod
**Heat Trap
**Heat Trap
**Nipple
**Nipple
Dip tube
Dip tube gasket
Drain valve*
Temperature and pressure
relief valve
(Side T&P equipped models)
Gas Control (Thermostat)
*Burner
Jacket Door
*Burner Access
Door Grommet
*Sight Glass
*Burner Access Door
*Burner Access
Door Gasket
*Burner orifice
*Combustion Shut-off Device
(enlarged view)
Located inside the
combustion chamber.
To Next Page
