39
When ordering replacement parts, it is necessary to order by part number and include
with the order the complete model number and serial number from the unit data plate.
(See parts list for unit component part numbers).
14.0 ACCESSORIES-KITS-PARTS
• Combustible Floor Base RXHB- for downflow applications.
• Jumper Bar Kit 3 Ckt. to 1 Ckt. RXBJ-A31 is used to convert single phase multiple
three circuit units to a single supply circuit. Kit includes cover and screw for line side
terminals.
• Jumper Bar Kit 2 Ckt. to 1 Ckt. RXBJ-A21 is used to convert single phase multiple
two circuit units to a single supply circuit. Kit includes cover and screw for line side
terminals.
NOTE: No jumper bar kit is available to convert three phase multiple two circuit units
to a single supply circuit.
• External Filter Base RXHF- (See Figure 16)
• External Filter Rack: RXHF-B (See Figure 17)
Combustible Floor
Model Cabinet Size Base Model Number
17 RXHB-17
21 RXHB-21
24 RXHB-24
Model Cabinet Size Filter Size Part Number AB
17 16 x 20 [406 x 508] RXHF-17 15.70 17.50
21 20 x 20 [508 x 508] RXHF-21 19.20 21.00
24 25 x 20 [635 x 508] RXHF-24 22.70 25.50

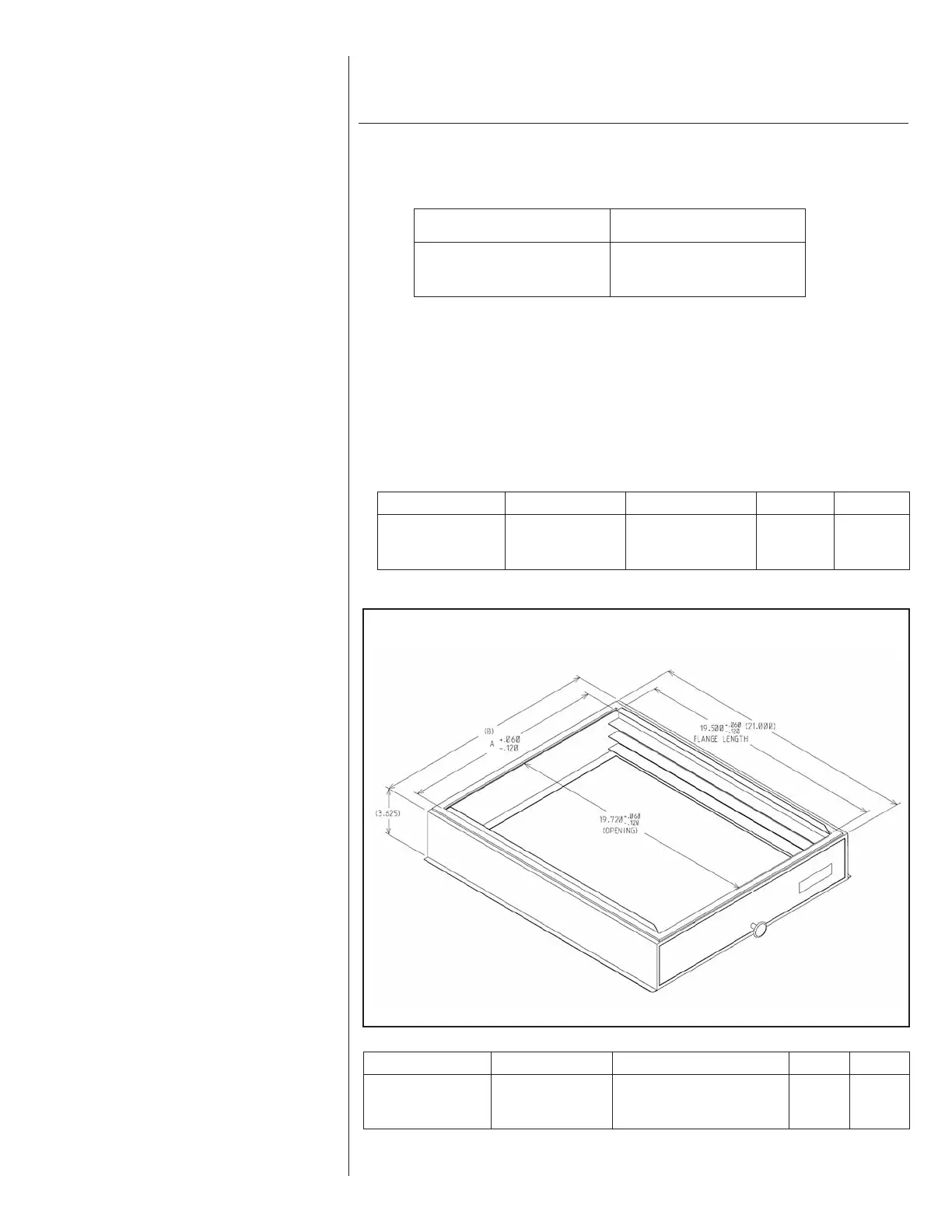

FIGURE 16
EXTERNAL FILTER BASE: RXHF-
Accommodate
1” or 2”
filter
Model Cabinet Size Filter Size Part Number AB
17 16 x 20 RXHF-B17 16.90 20.77
21 20 x 20 RXHF-B21 20.40 20.77
24 25 x 20 RXHF-B24 25.00 21.04
Accommodate
1” filter
