ASSEMBLY
NOTE: Remove Powerhead Assembly
from Dust Drum prior to assembly of
Casters and Caster Feet.
1. Turn Dust Drum upside down on floor.
2. Place Caster Foot on floor. Insert the
stem of a Caster into socket of Caster
Foot.
3. Push on the Caster until the Caster ball
end snaps fully into the socket and the
Caster swivel freely. Repeat for other
three Casters and Caster Feet.
4. Place Caster Foot w/Caster over post
on bottom of Dust Drum and press
firmly in place, as shown.
5. Repeat for the other three Caster/
Caster Foot assemblies.
6. Turn the Dust Drum upright.

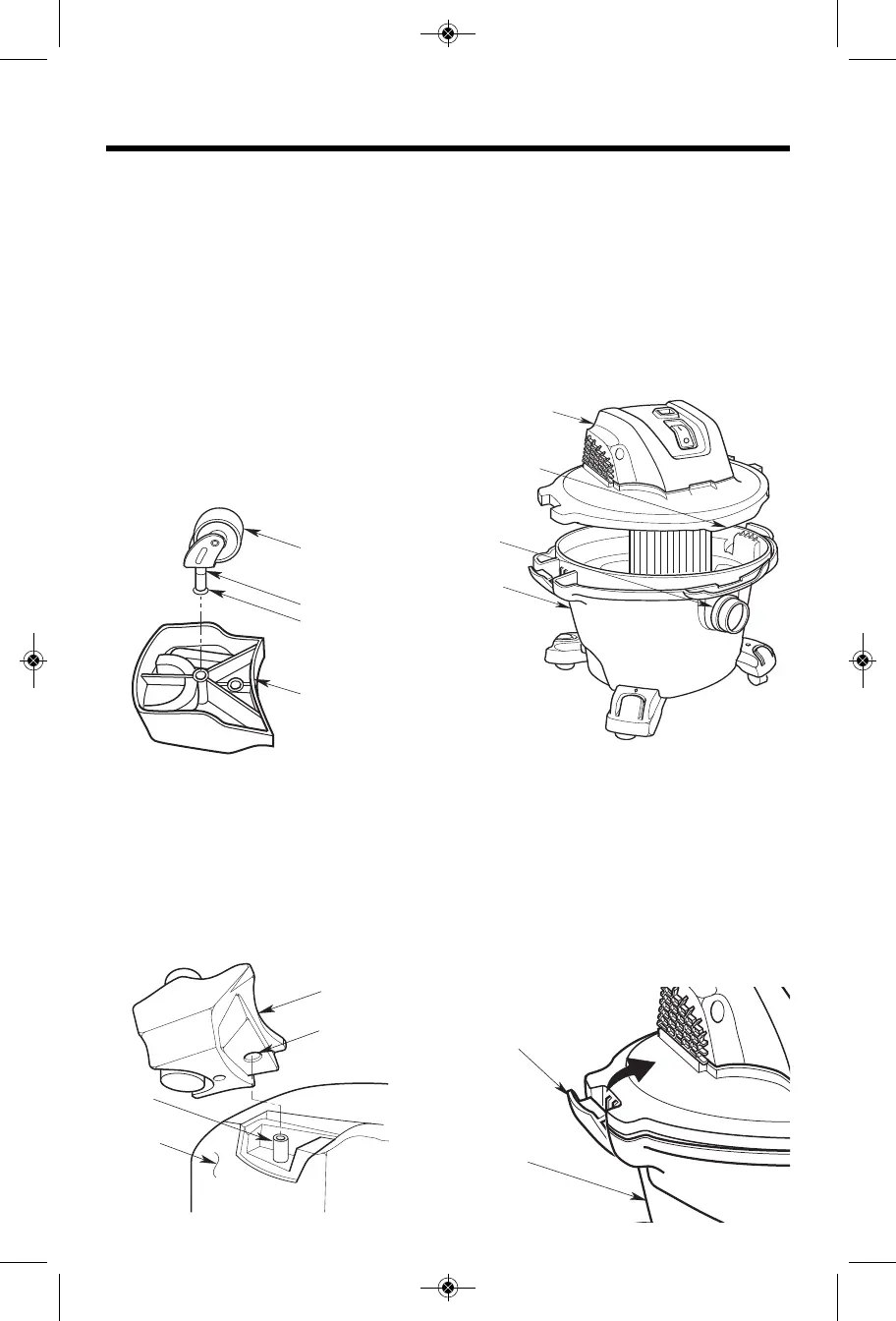

Caster/Caster Foot Assembly Wet/Dry Vac Assembly
Caster
Caster Ball
Caster Stem
Caster Foot
Post
Dust
Drum
Caster Foot
Post Hole
Caster Foot
2. Press in on the two Latches located on
either side of the Dust Drum until they
snap into place, securing the
Powerhead Assembly to the Dust Drum.
3. To remove the Powerhead Assembly,
pull out on the two Latches and lift
Powerhead Assembly from the Dust
Drum. Do not force the latches to rotate
more than slightly outside drum flange.
Dust
Drum
Drum
Latches (2)
Attaching Powerhead Assembly
to Dust Drum
1. Place Powerhead Assembly on top of
Dust Drum with the extended lip of the
lid aligned with the Dust Drum inlet.
Be sure Powerhead Assembly is fully
seated on the Dust Drum.
Extended
Lip
Inlet
Dust
Drum
Powerhead
Assembly
