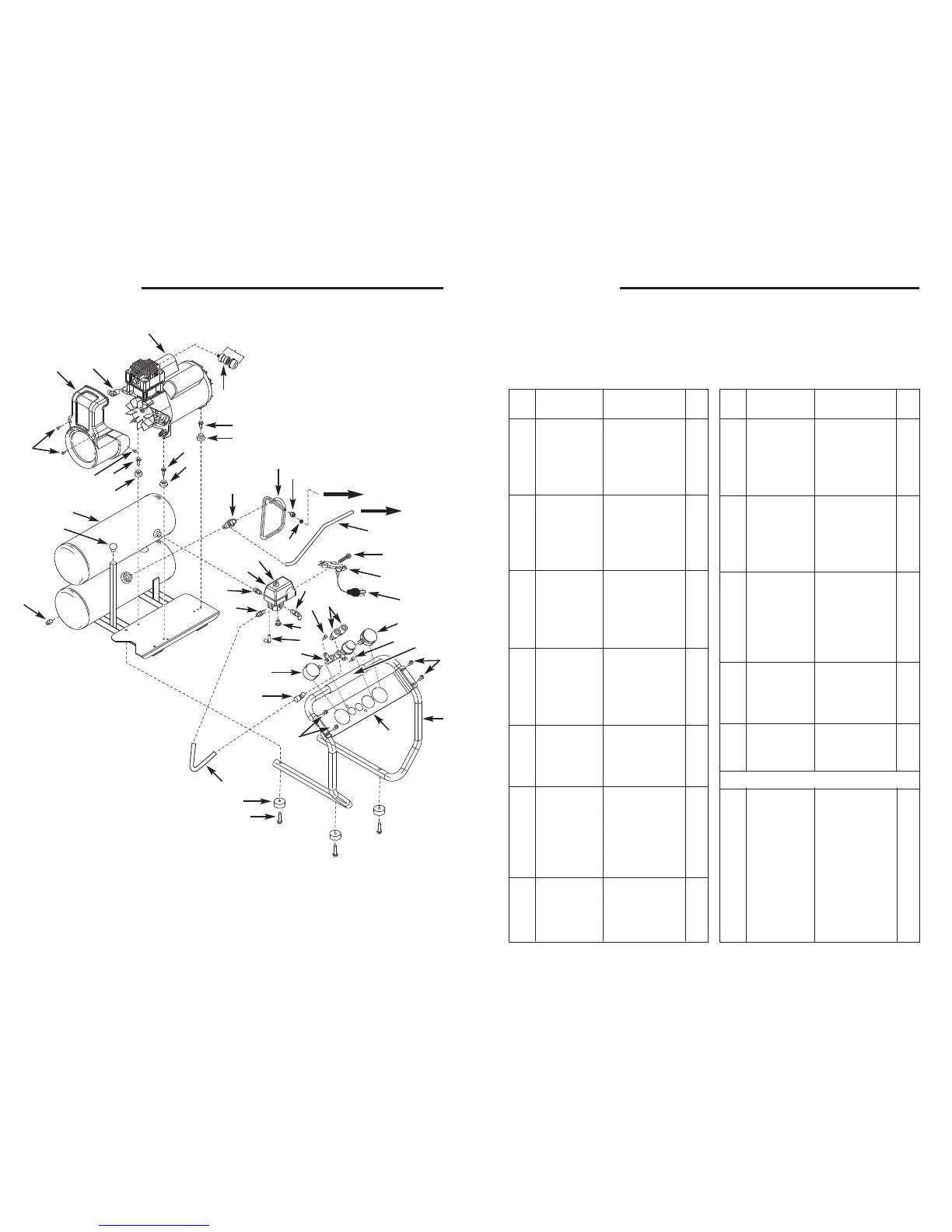

Repair Parts
19
Repair Parts
18
1
21
22
23
24
25
26
27
28
29
30
31
33
34
35
36
37
38
39
40
2
3
4
5
6
7
8
9
10
11
13
14
15
16
17
18
19
20
4
4
6
To Pump Head
To Unloader
12
19
17
32
41
For Repair Parts, Call 1-800-4-RIDGID
Please provide following information:
-Model number
-Serial number (if any)
-Part description and number as shown in parts list
Key Part
No Number Descriptons Qty
1 WL373000AJ Pump/motor 1
assembly
2 WL012000AV Filter 1
3 WL012300AV Filter element 1
4 ST158000AV Shoulder bolt 3
5 WL003202AV Rubber bushing 1
(Rear)
6 WL003203AV Rubber bushing
(Front) 2
7 CV222202AJ Check valve 1
8 WL016200AP l Exhaust tube 1
9 ST039700AV l Nut 1
10 ST039800AV l Ferrule 1
11 ST117802AV 1/4" Flexible 1
tube
12 ST209800AV Strain relief 1
screw
13 CW209600AV Strain relief 1
14 EC012600AV Cord 1
15 HF203300AV Coupler 2
16 GA016709AV Tank gauge 1
17 ST085405AV 1/4”-20 x 1/2” 2
Screw
18 WL012102AV Grip 1
19 ST074415AV 1/4”-20 x 1/2” 4
Thread cutting
screw
20 WL020101AV Roll bar 1
21 WL021301AV Control panel 1
bracket
22 ST073276AV Foot screw 4
23 ST158300AV Molded rubber 4
bumper
24 WL021400AV 3/8” Nylon tube 1
Key Part
No Number Descriptons Qty
25 ST119704AV 3/8” 90
o
Push to 1
connect
26 GA016705AV Outlet gauge 1
27 WL017601AV Regulator 1
28 CW210000AV Unloader 1
29 ST022500AV Plug 1
30 V-215106AV 150 psi Safety 1
valve
31 ST119305AV 3/8” Push to
connect 1
32 HF002401AV Nipple 1
33 CW211700AV Pressure switch 1
cover
34 CW211300AJ Pressure switch 1
35 D-1403 Tank drain 1
valve
36 ST073612AV Plug 1
37 AR052700CG 4.5 gal. twin 1
tank
38 ST129301AV Shroud screw 1
39 ST129302AV Shroud screw 2
40 WL012406AV Shroud 1
41 ST072224AV Exhaust fitting 1
REPAIR PARTS KITS
l WL209308AJ Exhaust tube kit 1
(without check
valve)
To Next Page
