Rigol DS1000E Series Quick Guide

RIGOL
Quick Guide for DS1000E, DS1000D Series
3
How to Connect Probe or BNC
1． Connect the probe

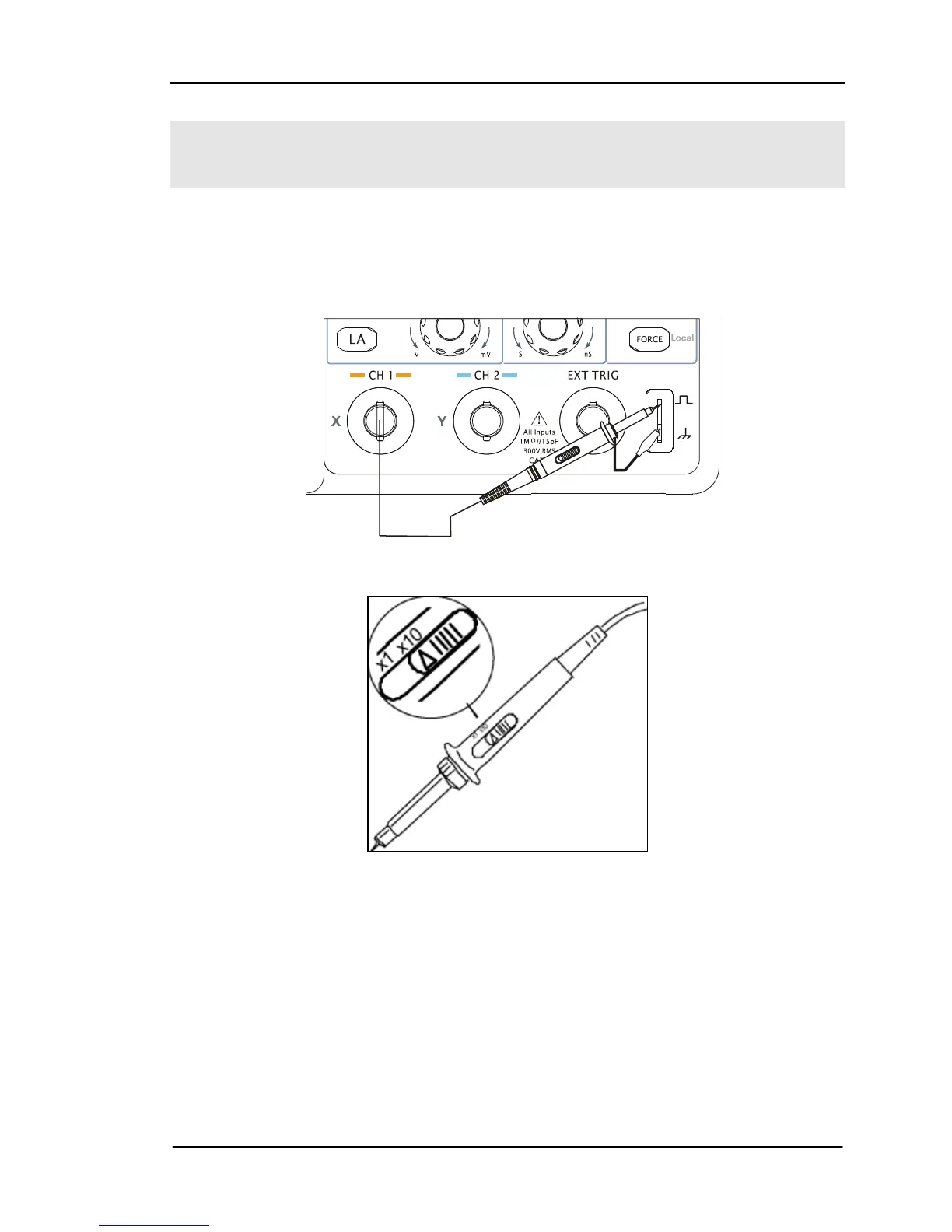

As shown in the above figures, set the attenuation switch on the
probe to 10X and connect the probe to Channel 1 on the
oscilloscope, push and rotate clockwise to lock the probe in place.
If your probe is a new one, or it is the first time you connect to the
oscilloscope, before use it, please do the following compensation
operation:

Rigol DS1000E Series Specifications

General

Bandwidth	50 MHz, 100 MHz
Sample Rate	1 GSa/s
Channels	2
Memory Depth	1 Mpts
Trigger Modes	Edge, Pulse, Video, Slope, Alternate
Vertical Resolution	8 bits
Timebase Range	5 ns/div to 50 s/div
Max Input Voltage	400 V (DC + AC peak)
Power Supply	100-240 V AC, 50/60 Hz
Input Impedance	1 MΩ ± 2%
Vertical Sensitivity	2 mV/div to 10 V/div
Interfaces	USB Host, USB Device
Dimensions	303 mm × 154 mm × 133 mm
