User’s Guide for DS1000E, DS1000D Series
1-8
To Perform a Functional Check
Perform this quick functional check to verify that the instrument is operating
correctly.
1. Turn on the instrument.
 Use the power cord designed for the oscilloscope only.
 The power requirements are 100 to 240 VAC
RMS
, 45Hz to 440Hz.
 Turn on the instruments, and wait until the display shows the waveform window.
 Press the Storage button, select Storage in the menu. Rotate the multiple
function knob to select Factory and press the knob down. Then, press Load .

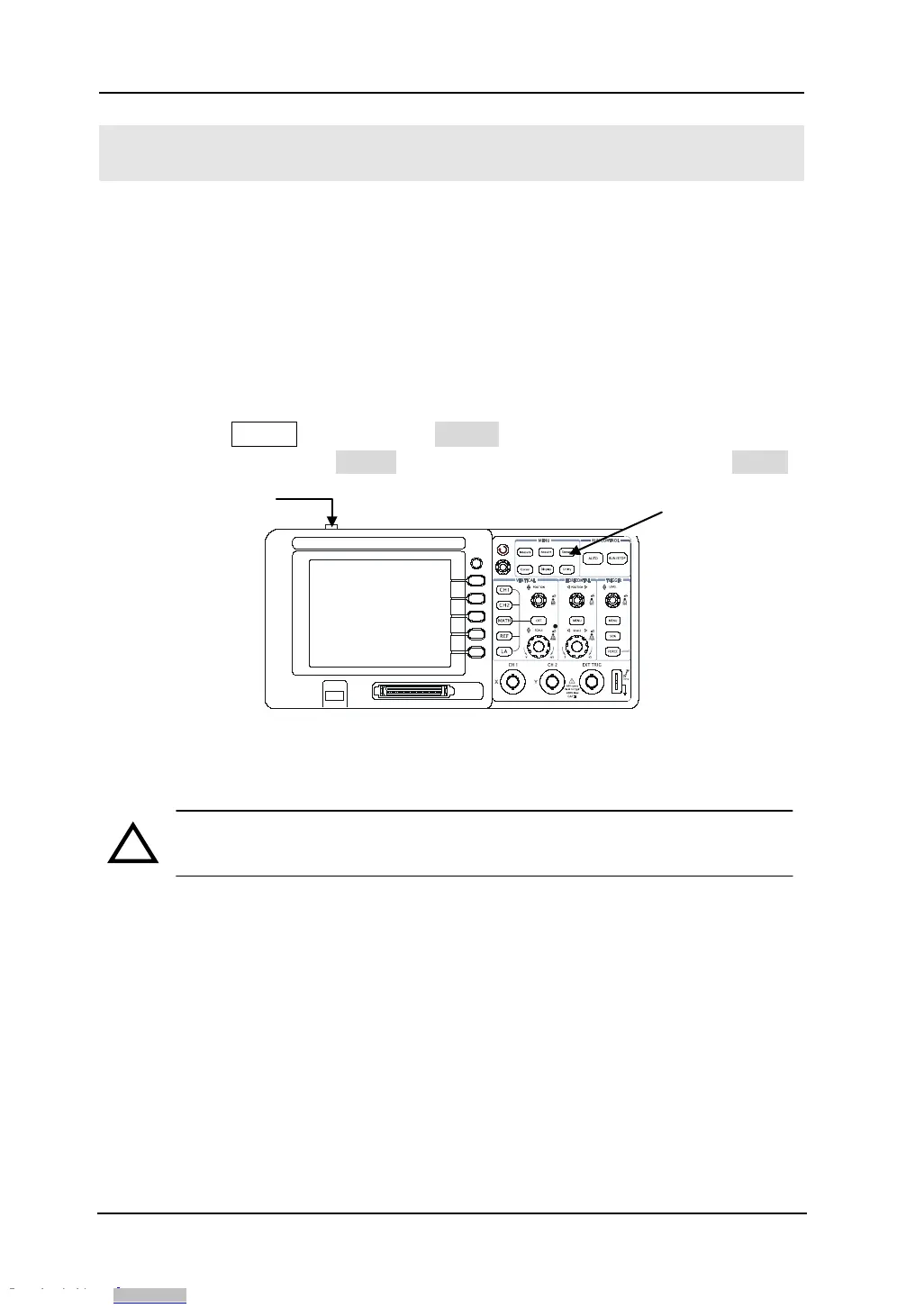

Figure 1- 9
Turn on and Check the instrument
WARNING:
To avoid electric shock, be sure the oscilloscope is properly grounded.
2. Input a signal to a channel of the oscilloscope
DS1000E series: 2 channels input + 1 external trigger channel input
DS1000D series: 2 channels input + 1 external trigger channel input +16 channels
digital input
Do the following steps:
① Set the switch on the probe to 10X and connect the probe to Channel1 on the
oscilloscope:
Power button
Storage button
!
