 Select Real-time acquisition to observe the single-shot or pulse signals.
 Select Equ-Time to observe high frequency repetitive signals.
 To reduce the displayed random noise, select Average Acquisition. And this
mode would make the screen refresh slower.
 To Avoid signal aliasing, select Peak Detect Acquisition.
The waveform displayed on the screen will change in conjunction with the setting of
Acquire menu.

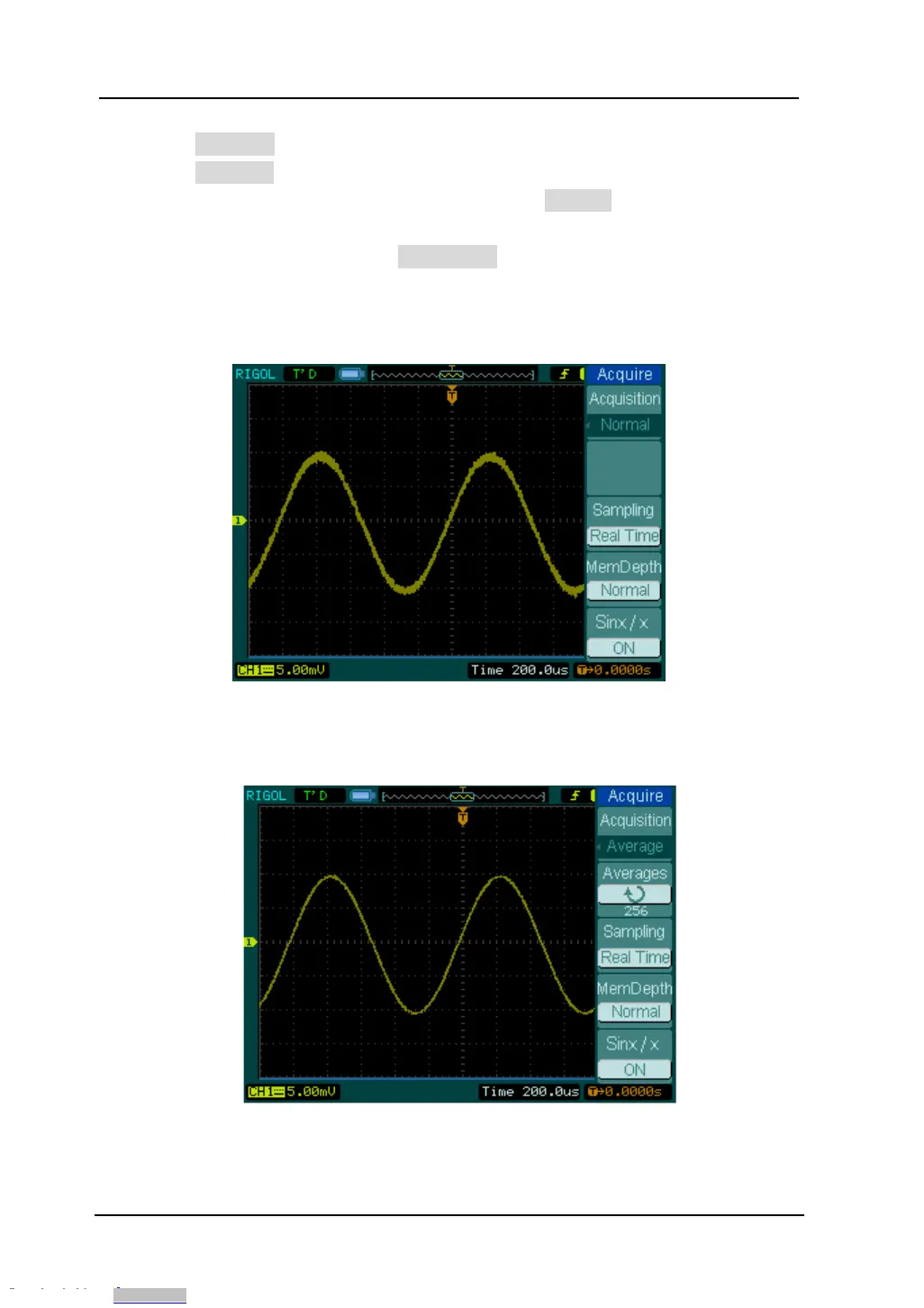

Figure 2- 69
Signal that contains noise, and without average sampling
Figure 2- 70
Display signal after average sampling
