RIGOL Chapter 19 System Utility Function Setting
19-10 MSO7000/DS7000 User Guide

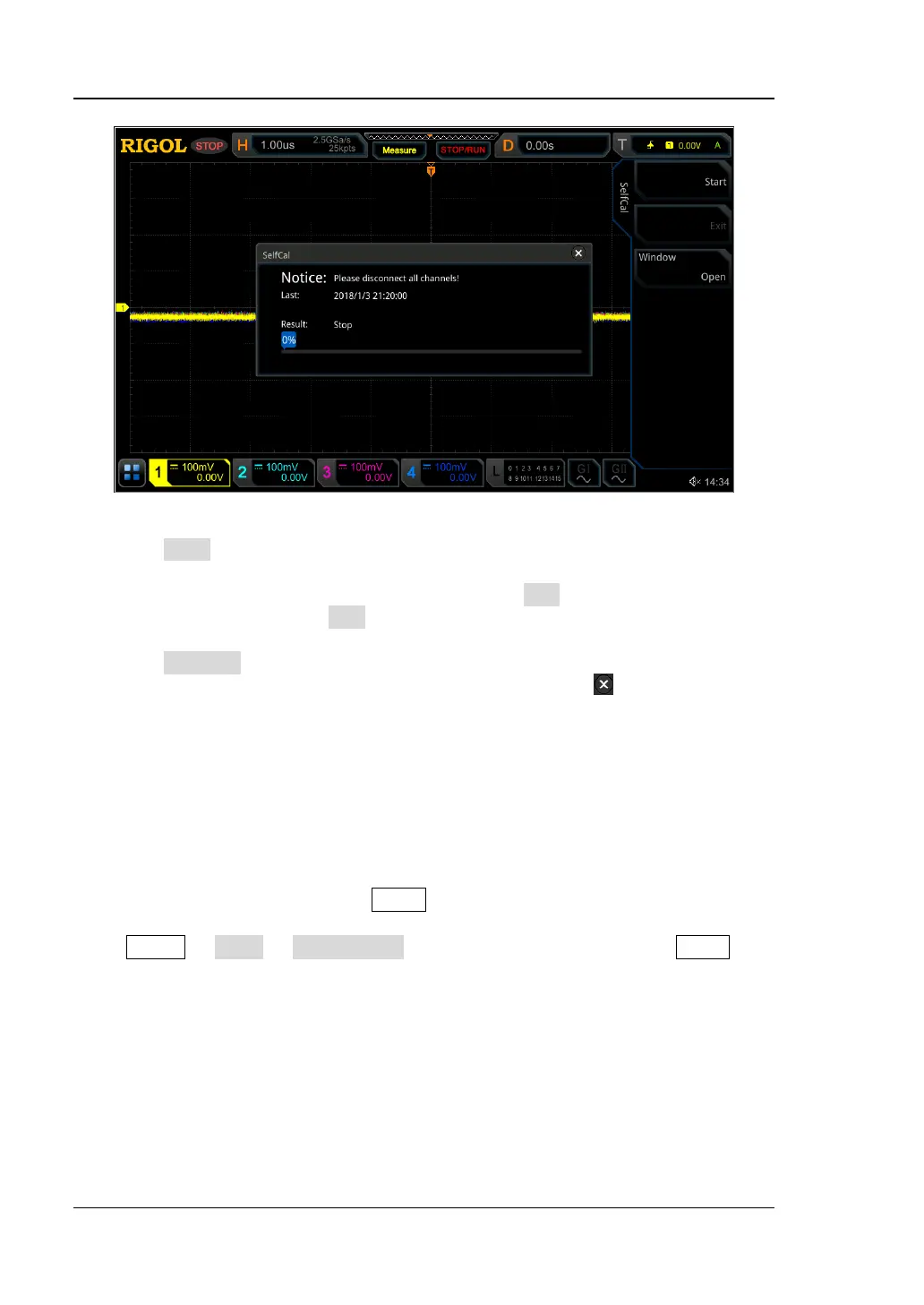

Figure 19-2 Self-calibration Interface
 Press Start, and then the oscilloscope will start to execute the self-calibration
program.
 After the self-calibration program is launched, the Exit menu is no longer grayed
out and is enabled. Press Exit to give up the self-calibration operation at any
time.
 Press Window continuously to open or close the self-calibration information
window. You can also enable the touch screen to tap the icon at the
upper-right corner of the self-calibration information window to close the
window.
Note: Most of the keys are disabled during the self-calibration.
Auto Config
You can set the parameters for the AUTO menu.
Press Utility  More  Auto Config, and set the parameters for the AUTO key.
For detailed settings, refer to descriptions in "Quick Measurement after AUTO".
Print Setting
Connect the oscilloscope to the local area network via the network cable. The
MSO7000/DS7000 series supports printing the whole screen to the USB printer or
network printer. You can connect the oscilloscope to the printer directly via the USB
