Rigol DS1102D User Manual

RIGOL
© 2008 RIGOL Technologies, Inc.
User’s Guide for DS1000E, DS1000D Series
2-2
To Set up the Vertical System
Settings of the Channels
This series oscilloscopes offer dual channels. Each channel has an operation menu
and it will pop up after pressing CH1 or CH2 button. The settings of all items in the
menu is shown in the table below.

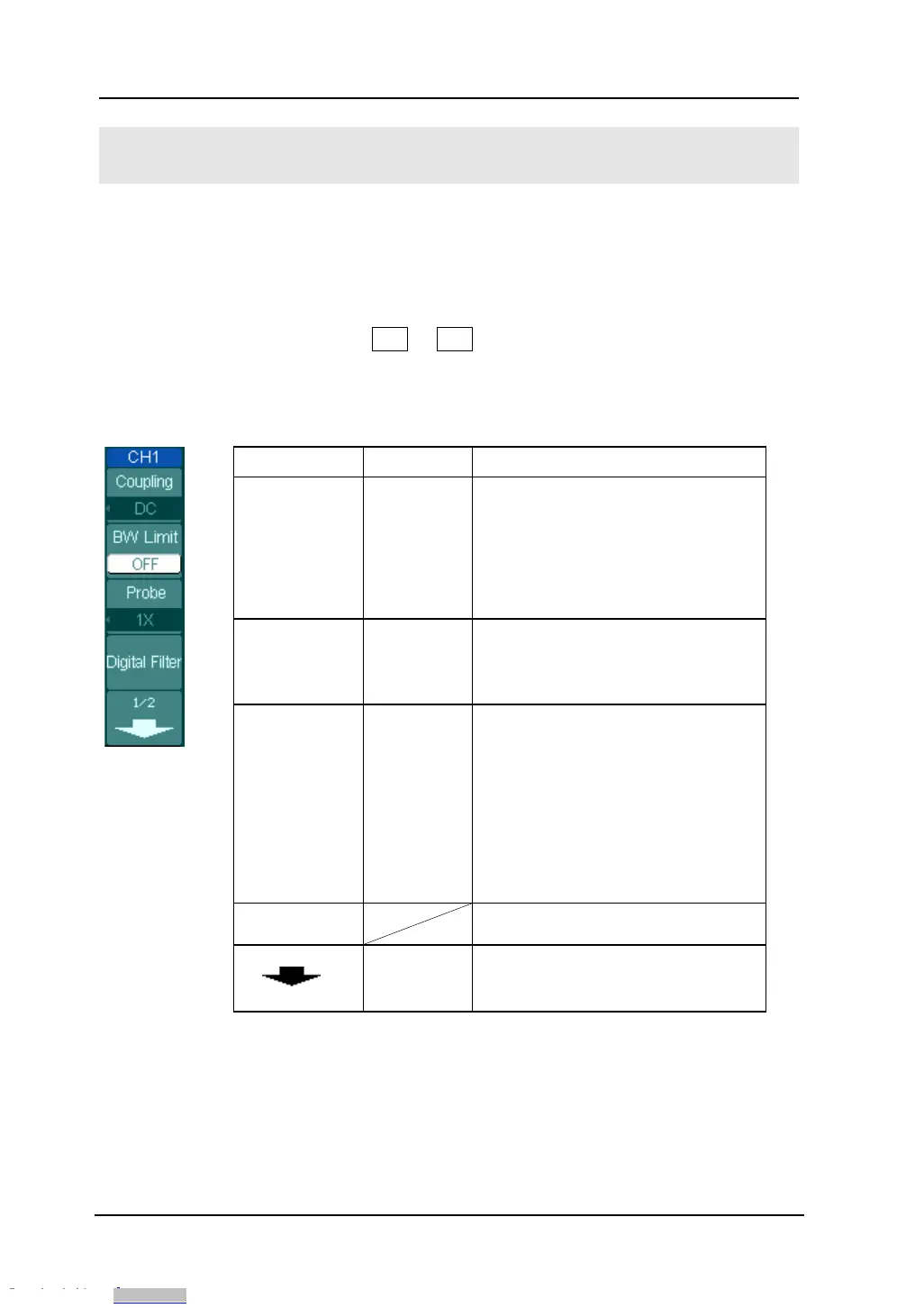

Figure 2- 1 Table 2- 1 The Channel menu (Page 1/2)
Menu Settings Comments
Coupling
AC
DC
GND
Blo
cks the DC component of the
input Signal
Passes both AC and DC
components of the input signal
Disconnects the input signal
BW Limit
ON
OFF
Limits the channel bandwidth to
20MHz to reduce display noise.
Get full bandwidth.
Probe
1X
5X
10X
50X
100X
500X
1000X
Set this to match your probe
attenuation factor to make the
vertical scale readout correct
Digital filter
Setup digital filter (See table 2-4)
1/2
Go to the next menu page (The
followings are the same, no
more explanation)
