Power-on Inspection
When the oscilloscope is energized, press the power key
at the lower-left corner
of the front panel to turn on the oscilloscope. During the start-up process, the
oscilloscope performs a series of self-test items and you can hear the sound of relay
switching. After the self-test is finished, the welcome screen is displayed. The
instrument is installed with the trial versions of the options before leaving factory and
the remaining time is about 2000 minutes. The “Current Options” dialog box will be
displayed if your instrument currently installs the trial versions of options. From this
dialog box you can view the types, names, versions and the remaining time of the
options currently installed.
To Connect the Probe
RIGOL provides passive probes for DS2000A as well as passive probes and logic
probes for MSO2000A. For detailed technical information of the probes, please refer
to corresponding Probe User’s Guide. The following are the probes recommended for
use with the oscilloscope.
Model Description
PVP2350 350 MHz, passive probe, standard
RP3500A 500 MHz, passive probe, optional
RPL2316 Logic probe, standard
Connect the Passive Probe:
1. Connect the BNC terminal of the probe to an analog channel input of the
oscilloscope at the front panel.
2. Connect the ground alligator clip of the probe to the circuit ground terminal and
then connect the probe tip to the circuit point under test.

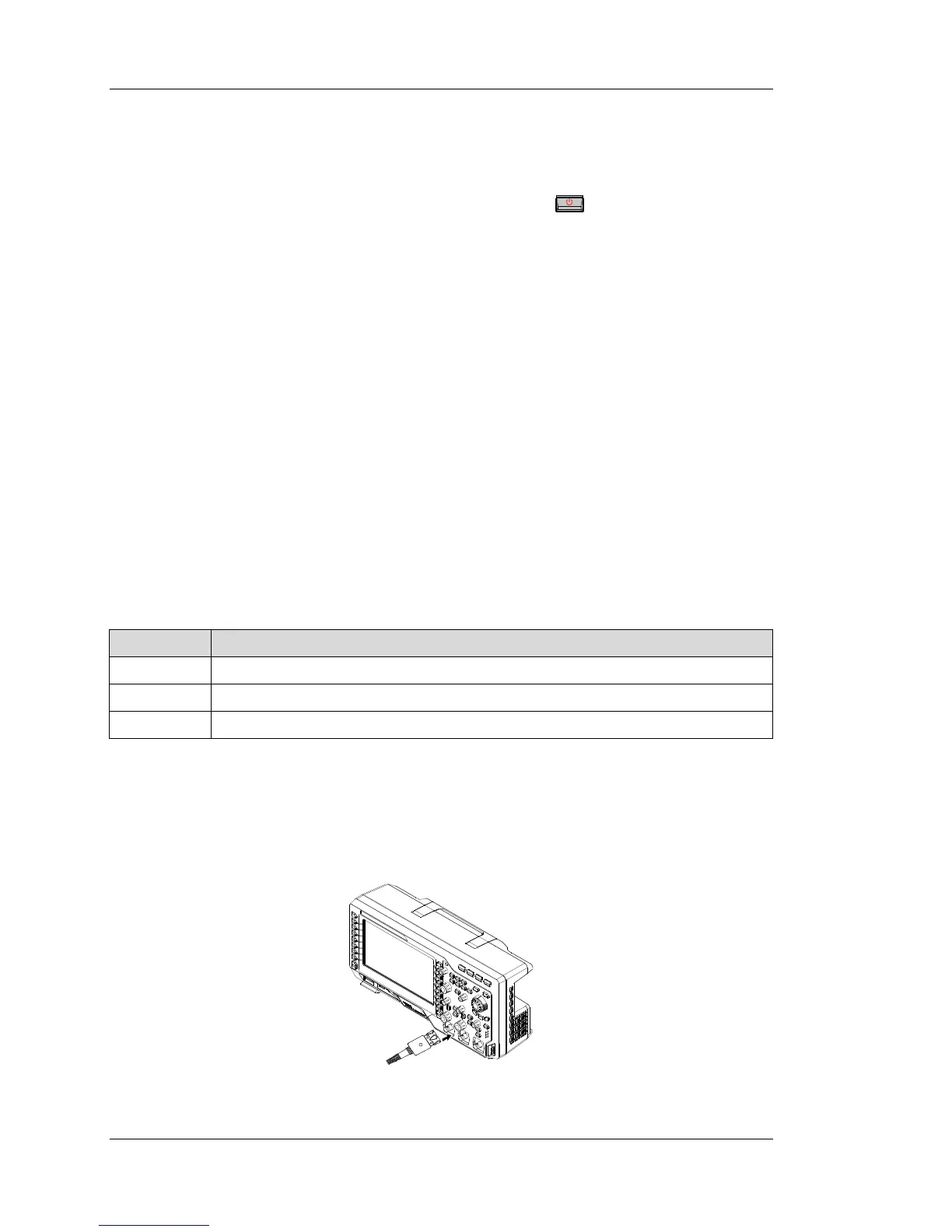

Figure 5 To Connect the Passive Probe
