RIGOL
DS6000 Quick Guide
23
PH2 Phillips Screwdriver (recommended).
Installation Space
The following requirements must be fulfilled by the machine cabinet in which the
instrument is mounted.
The machine cabinet must be a standard 19-inch one.
At least 6U (266.7 mm) space should be provided by the machine cabinet.
The depth inside the machine cabinet should not be less than 400 mm.

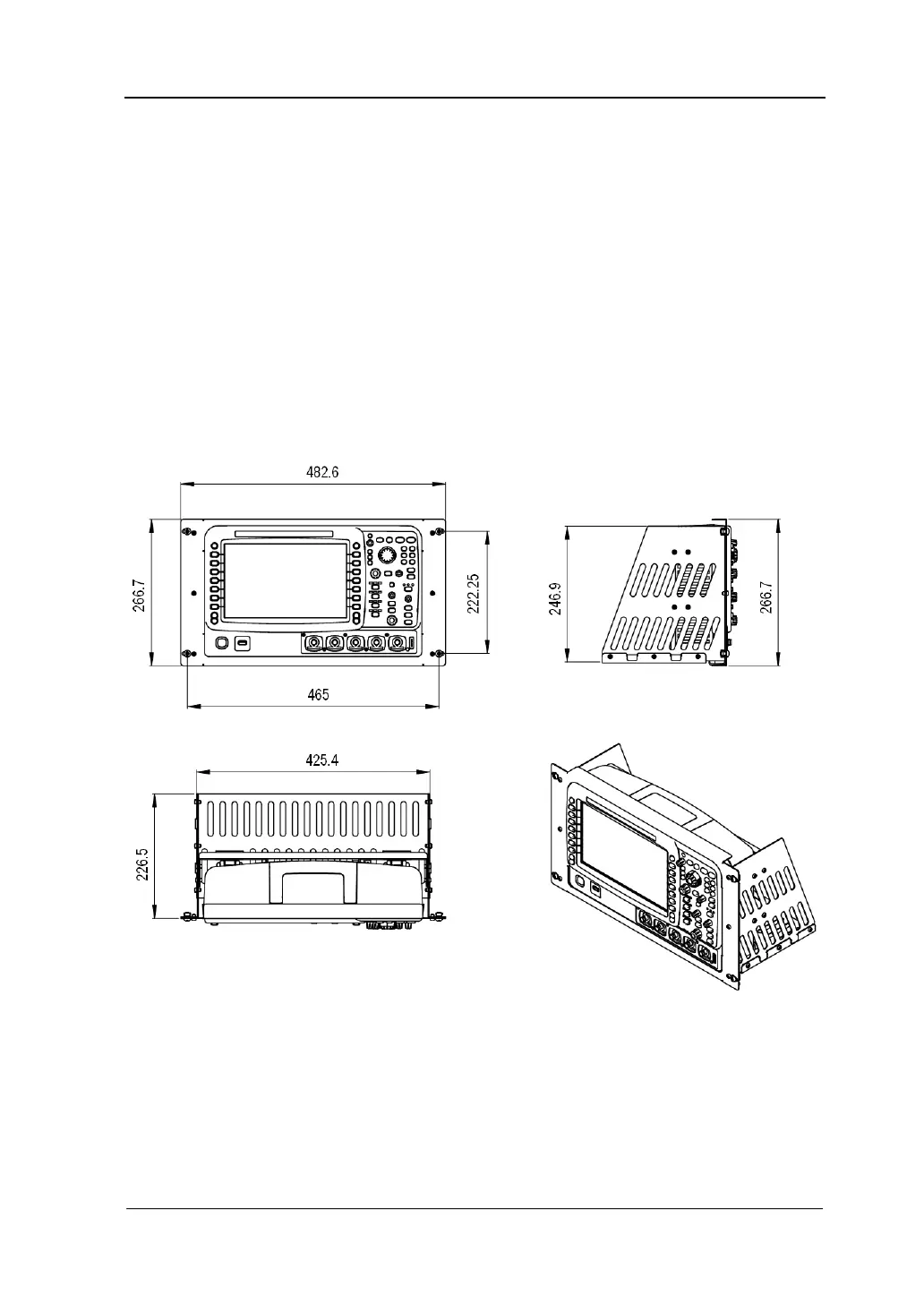

The dimension of the instrument after being installed is shown below.

Other manuals for Rigol DS6104

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Rigol DS6104 and is the answer not in the manual?

Rigol DS6104 Specifications

General IconGeneral
Bandwidth1 GHz
Channels4
Vertical Resolution8 bits
Input CouplingAC, DC, GND
Max Input Voltage400 V (DC + AC peak)
Timebase Range1 ns/div to 1000 s/div
Memory Depth140 Mpts
Input Impedance1 MΩ ± 1%
Trigger TypesEdge, Pulse, Video, Runt, Window
Display10.1 inch TFT LCD
InterfaceUSB Host, USB Device, LAN, HDMI
Power Supply100 V - 240 V AC, 50/60 Hz
Vertical Sensitivity10 V/div
