RIGOL Chapter 6 Operations and Measurements

6-46 MSO7000/DS7000 User Guide

Track Mode

In this mode, you can adjust the two pairs of cursors (Cursor A and Cursor B) to

measure the X and Y values on two different sources respectively. The points being

measured on Cursor A and Cursor B are marked by and respectively. When

the cursors are moved horizontally/vertically, the markers will position on the

waveform automatically. When the waveform is expanded or compressed

horizontally/vertically, the markers will track the points being marked at the last

adjustment of the cursors.

Note: When the delayed sweep function is enabled, the track cursor is within the

expanded area.

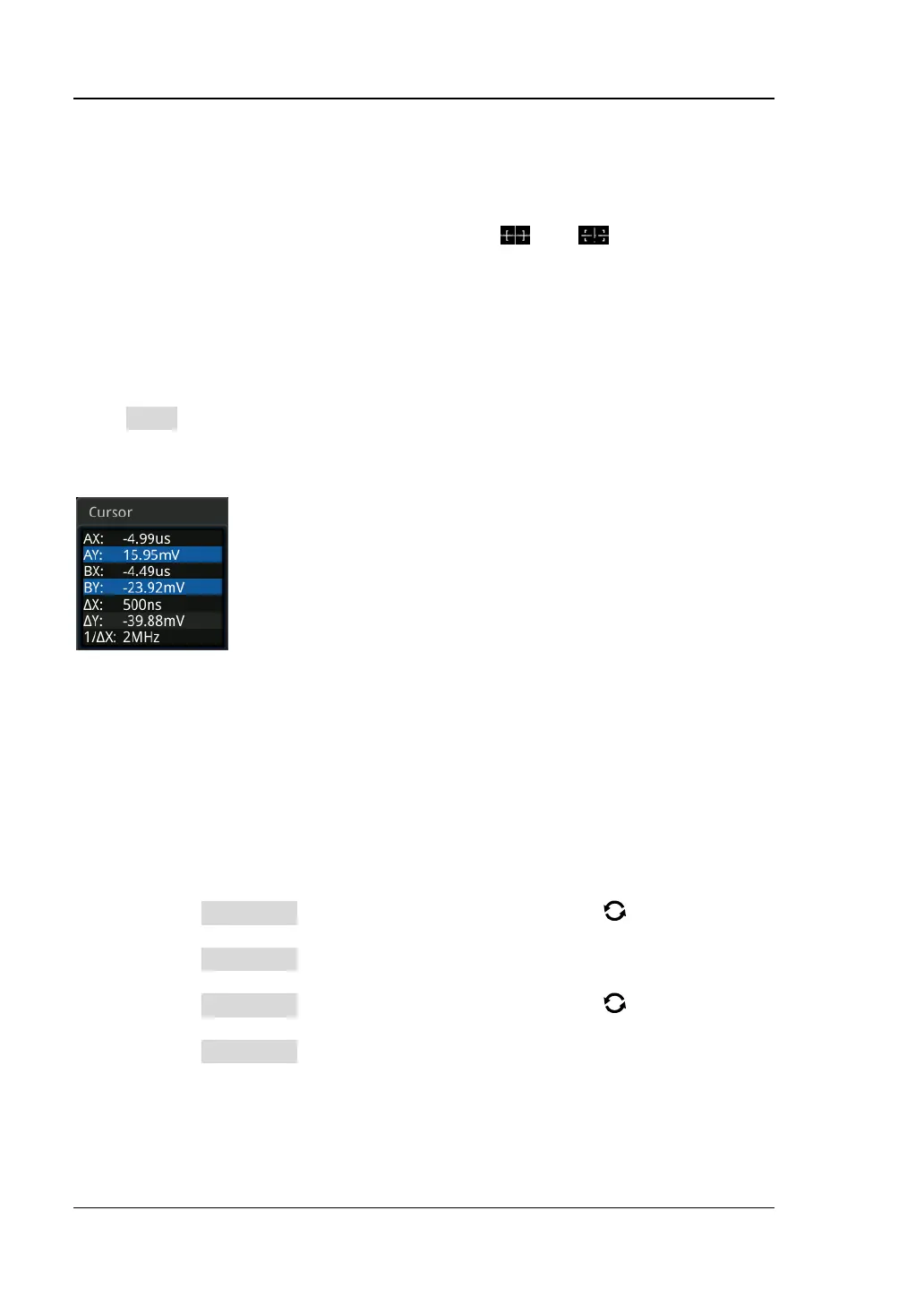

Press Mode to select "Track" to enable the cursor track function, and the

measurement results will be displayed at the upper-left corner of the screen, as

shown in the following figure. When you change the measurement parameter for the

track mode, the measurement results will be changed accordingly.

⚫ AX: indicates the X value at Cursor A.

⚫ AY: indicates the Y value at Cursor A.

⚫ BX: indicates the X value at Cursor B.

⚫ BY: indicates the Y value at Cursor B.

⚫ △X: indicates the horizontal spacing between Cursor A and Cursor B.

⚫ △Y: indicates the vertical spacing between Cursor A and Cursor B.

⚫ 1/△X: indicates the reciprocal of the horizontal spacing between Cursor A and

Cursor B.

1. Select Measurement Source

⚫ Press AX Source, then rotate the multifunction knob to select the

desired measurement source. Press down the knob to select it. You can also

press AX Source continuously or enable the touch screen to select it. The

available source channels are NONE, CH1-CH4, and Math1-Math4.

⚫ Press BX Source, then rotate the multifunction knob to select the

desired source (CH1-CH4). Press down the knob to select it. You can also

press BX Source continuously or enable the touch screen to select it. The

available source channels are NONE, CH1-CH4, and Math1-Math4.

Note: Only channels currently enabled can be selected.
