36
Manual - Rinnai Condensi
ng Water Heaters
T

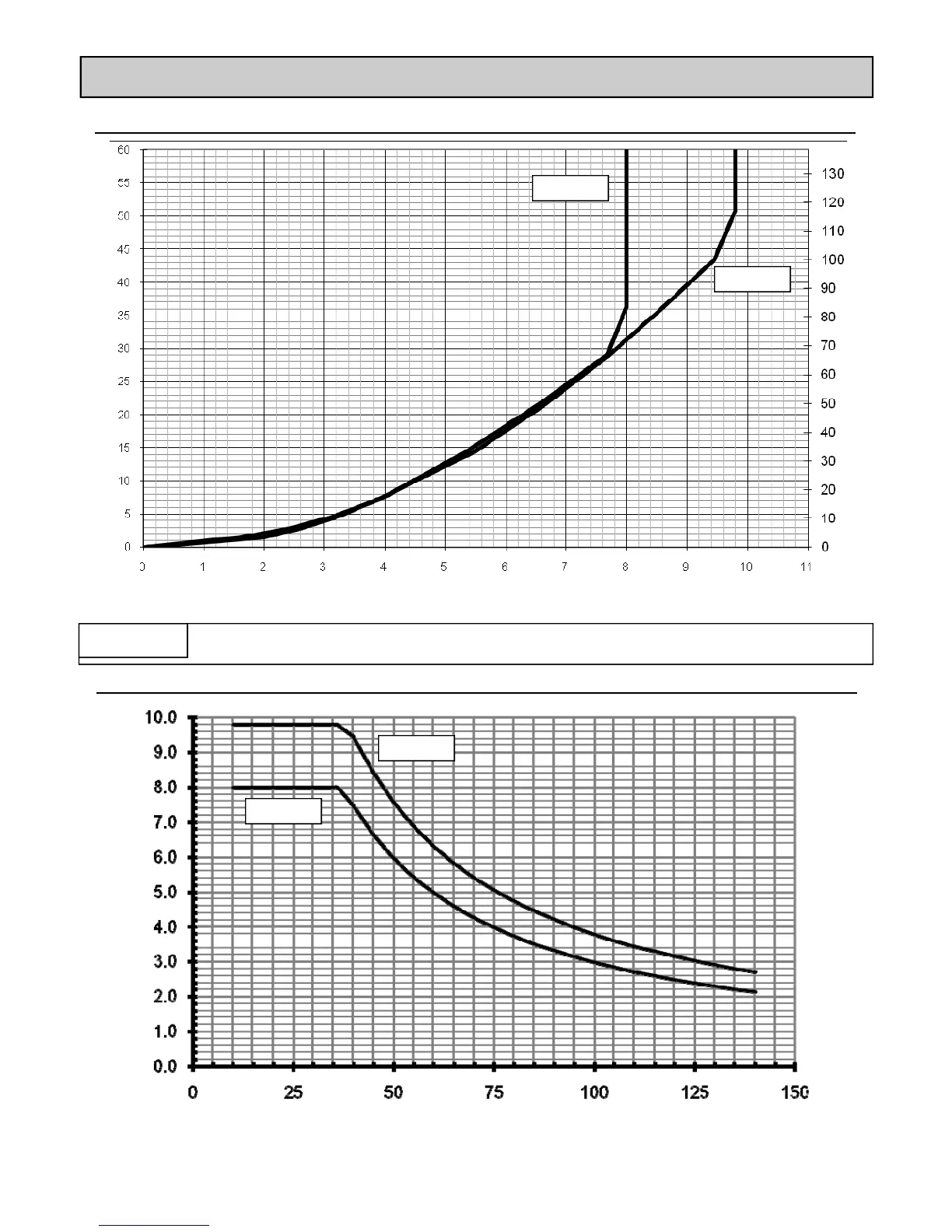

echnical Data
Pressure
Drop
Curve
Outlet
Flow
Data
RC98
Water Flow (gpm)
delta T - Temperature Rise (ºF)
Pressure Loss (ft head)
Water Flow (gpm)
Pressure Loss (psi) )
RC98
The chart below only applies to incoming water tem
peratures of 70°F (21°C) o
r less. For
incoming water temperatures greater than 70°F
(21°C) please contact Rinnai.
NOTICE
RC80
RC80
35
37
Table of Contents
English
2
Default Chapter
1
Table of Contents
1
Table of Contents
2
Specifications
3
Consumer Safety Information
4
Safety Definitions
4
Safety Behaviors and Practices
4
Safety Features
4
Operating Instructions
5
Description of Operation
5
Features Available on Temperature Controllers
5
Temperature Controller
6
How to Set the Temperature
7
Temperature Controller Settings
7
Temperature Controller Settings
8
Temperature Options Without a Temperature Controller
8
Setting the Sound Volume
8
Using the Water Smart / Bath Fill Function
9
Overview
9
Setting the Water Volume
9
Filling the Tub
10
Setting Controller to Mute
10
Setting the Clock
10
Maintenance
11
Cleaning
11
Vent System
11
Air Intake
11
Motors
11
Temperature Controller
11
Lime / Scale Buildup
11
Snow Accumulation
11
Visual Inspection of Flame
11
Error Codes
12
Error Code Table
12
Trouble Shooting for Common Issues
14
Accessing Operating Information
14
Water Quality
14
Flushing the Heat Exchanger
15
Clean Thermistors
15
Connection Scheme
15
Error Code: LC or
15
Installation Instructions
16
General Instructions
16
Clearances from Appliance
17
Attachment of the Water Heater
17
Electrical Connection
18
Error Indication or Air Handler Control Switch18
18
Gas Piping General Instructions
18
Pipe Sizing Procedure - Example
19
Water Piping
20
Isolation Valves and Pressure Relief Valves
20
General Instructions
21
Pressure Relief Valve
21
Freeze Protection
21
Freeze Protection Piping
22
Recommended Piping for Basic Installation
23
Recommended Piping for Circulation Systems
24
Venting Instructions Intake / Exhaust Guidelines
25
Condensate
25
Maximum Vent Length
26
Vent Products
26
Flue Terminal Clearances (ANS Z21.10.3, CSA 4.3 )
27
Additional Clearances - Vent Terminal (Rc80I, Rc98I)
28
Additional Clearances (Rc80E, Rc98E)
29
Flue Installation (Rc80I, Rc98I)
30
Connecting Multiple Water Heaters
31
High Altitude Installation
31
Temperature Controller Installation
33
Location
33
Configurations
33
Cable Lengths and Size
33
Mounting the Controller
34
Operating Instructions
35
Technical Data
36
Pressure Drop Curve
36
Outlet Flow Data
36
Space Heating
37
Dimensions
38
Ladder Diagram
39
State Regulations
40
Consumer Support
41
Warranty Information
41
Limited Warranty
41
Limited Warranty
42
Français
43
French Version
43
Instructions D'utilisation
44
Comportements Et Pratiques de Sécurité
44
Réglage de Température
44
Plages de Température Avec un Contrôleur de Température
45
Options de Température Sans Contrôleur À Distance
45
Entretien
46
Instructions D'installation
47
Instructions Générales
47
Écartements Par Rapport À L'appareil
48
Fixation du Chauffe-Eau
48
Installations À Haute Altitude
49
Tuyauterie de Gaz
50
Tuyauterie D'eau
51
Qualité de L'eau
52
Tuyauterie Recommandée Pour Installation de Base
53
Instructions de Ventilation Consignes Pour Aspiration/Évacuation
54
Condensat
54
Longueur de Ventilation Maximum
55
Produits de Ventilation
56
Espacement Pour Terminaison de Cheminée
57
Installation de Conduit de Cheminée
58
Horizontal Termination
58
Vertical Termination
58
Instructions D'utilisation
59
Instructions de Mise en Marche
59
Diagramme en Escalier
60
Support À la Clientele
61
