~CAUTION:
SAFETY
Before installation,
disconnect
the
battery
negative
(-)
terminal
to
prevent damage
to
the
unit, fire
and/or
possible injury.
PRACTICE SAFE
SOUND™
Continuous exposure
to
sound pressure levels over
IOOdB
may
cause permanent hearing
loss.
High powered auto sound systems
may produce sound pressure levels well over
130dB.
Use common
sense
and practice
safe
sound.
(I)
Punch Pro
Tweeter
Mounting hardware
CARTON CONTENTS
INSTALLATION
CONSIDERATIONS
Before beginning
any
installation, follow these simple rules:
I.
Be
sure
to
carefully read and understand
the
instructions before attempting
to
install these speakers.
2.
For safety, disconnect the negative
lead
from the battery prior
to
beginning
the
installation.
3. For easier assembly, we suggest you run
all
wires prior
to
mounting your speakers
in
place.
4. Use
high
quality connectors
for
a reliable installation and
to
minimize signal
or
power
loss.
5.
Think
before
you drill! Be careful
not
to
cut
or
drill into gas tanks,
fuel
lines,
brake
or
hydraulic lines, vacuum lines
or
electrical wiring when working
on
any
vehicle.
If
installation
in
a boat, take care
not
to
cut
or
drill
through
the
main
hull.
6. Never run wires underneath
the
vehicle. Running
the
wires inside the vehicle
or
hull
area provides
the
best protection.
7.
Avoid running wires over
or
through sharp edges. Use rubber
or
plastic
grommets
to
protect
any
wires routed through metal, especially the firewall.
MOUNTING
I. Determine where
the
speakers
will
be mounted. Ensure
an
area large enough for
the
speaker
to
mount
evenly.
Be
sure
that
the
mounting location
is
deep enough
for
the
speaker
to
fit;
if
mounting
in
a
door
,
operate
all
functions (windows, locks,
etc.) through their entire operating range
to
ensure
there
is
no obstruction.
2. Refer
to
the
specification chart
to
determine
the
proper
diameter hole
to
cut
for your speaker model.
The
template provided also gives the proper
cutout
size.
3.
Mark
the
locations for
the
mounting screws. Drill
the
holes with a
1/8"
bit.
4. Feed
the
speaker wires through
the
cutout
and
connect
to
the
speaker terminals.
Be
sure
to
observe
proper
polarity when connecting
the
wires.
The
speaker's
positive terminal
is
indicated with a red
ring
.
5.
Tighten
the
screws until
the
speaker
is
snug
in
place
to
prevent rattling.
Do
not
over tighten the screws.
2
:j~
',,/~/
,
,
/ _ _ Align Holes
__
,
I
.....
_____
_

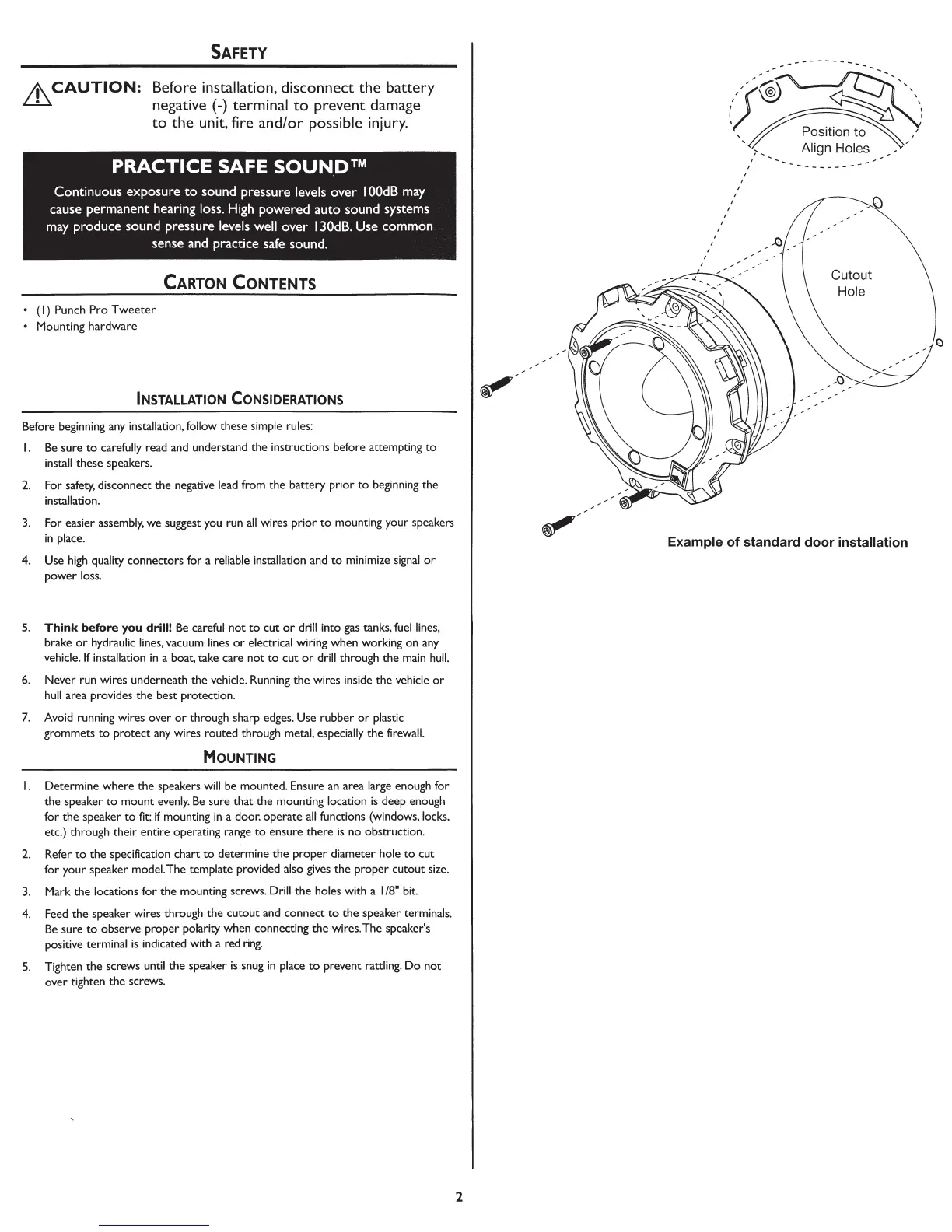

Example of standard door installation
