FLEX 5000 EtherNet/IP Adapters with RJ45 Ports
System Planning
Follow these rules when planning your system configuration:
• The adapter is the left-most module in the rack.
• Local FLEX 5000 I/O modules are installed to the right of the adapter.
• The 5094-AENTR and 5094-AENTRXT adapters support as many as 8 FLEX 5000 I/O modules.
• The 5094-AEN2TR and 5094-AEN2TRXT adapters support as many as 16 FLEX 5000 I/O modules.
• Before powerup, verify that the end cap is installed on the right-most installed FLEX 5000 terminal base.

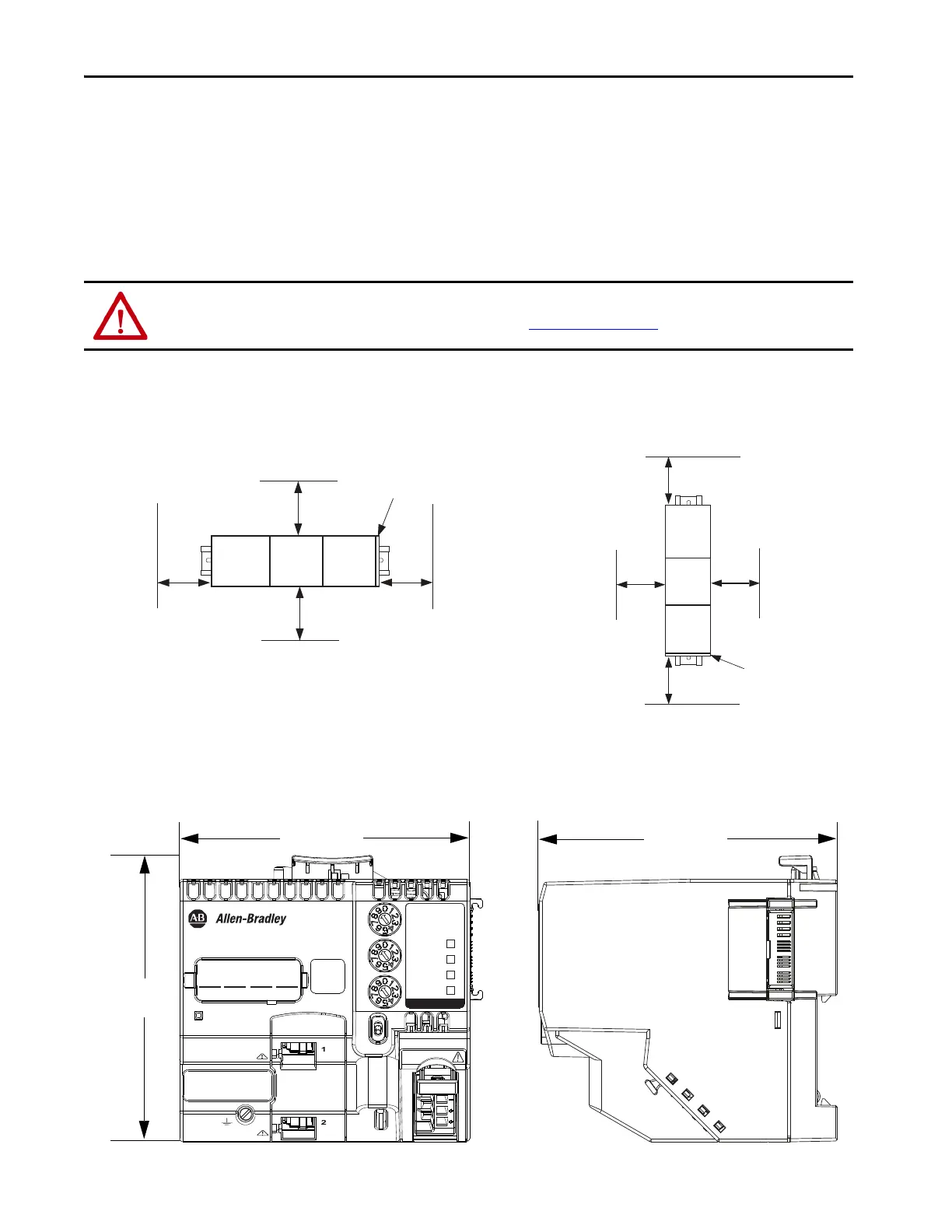

Spacing
Maintain spacing from enclosure walls, wireways, and adjacent equipment. You can mount the DIN rail horizontally or vertically.
FLEX 5000 EtherNet/IP Adapter with RJ45 Ports Spacing
Adapter Dimensions
FLEX 5000 EtherNet/IP Adapter with RJ45 Ports Dimensions
ATTENTION: Do not discard the end cap. Use this end cap to cover the exposed interconnections on the adapter module or the last terminal base on the DIN rail.
Failure to do so could result in equipment damage or injury from electric shock. See Install the End Cap
on page 12 for more information.
Top
Bottom
Side
Side
End cap
IMPORTANT: Allow 25.4 mm (1.00 in.) of space on all sides for adequate ventilation.
Adapter
FLEX 5000
I/O
FLEX 5000
I/O
Horizontal Mounting
Top
Bottom
SideSide
End cap
Vertical Mounting
Adapter
FLEX 5000
I/O
FLEX 5000
I/O
STATUS
NET
LINK 1
LINK 2
5094-AENTR
EtherNet/IP
™
Adapter
FLEX 5000
TM
I/O
PRP
DLR
POWER
X100
X10
X1
IP ADDRESS
94.0 mm (3.70 in.)
92.7 mm
(3.65 in.)
96.5 mm (3.80 in.)
