9
Sep. 2012 A-49-BK, A-49-WH
Plane View Parts List
View 1
View 2, 3

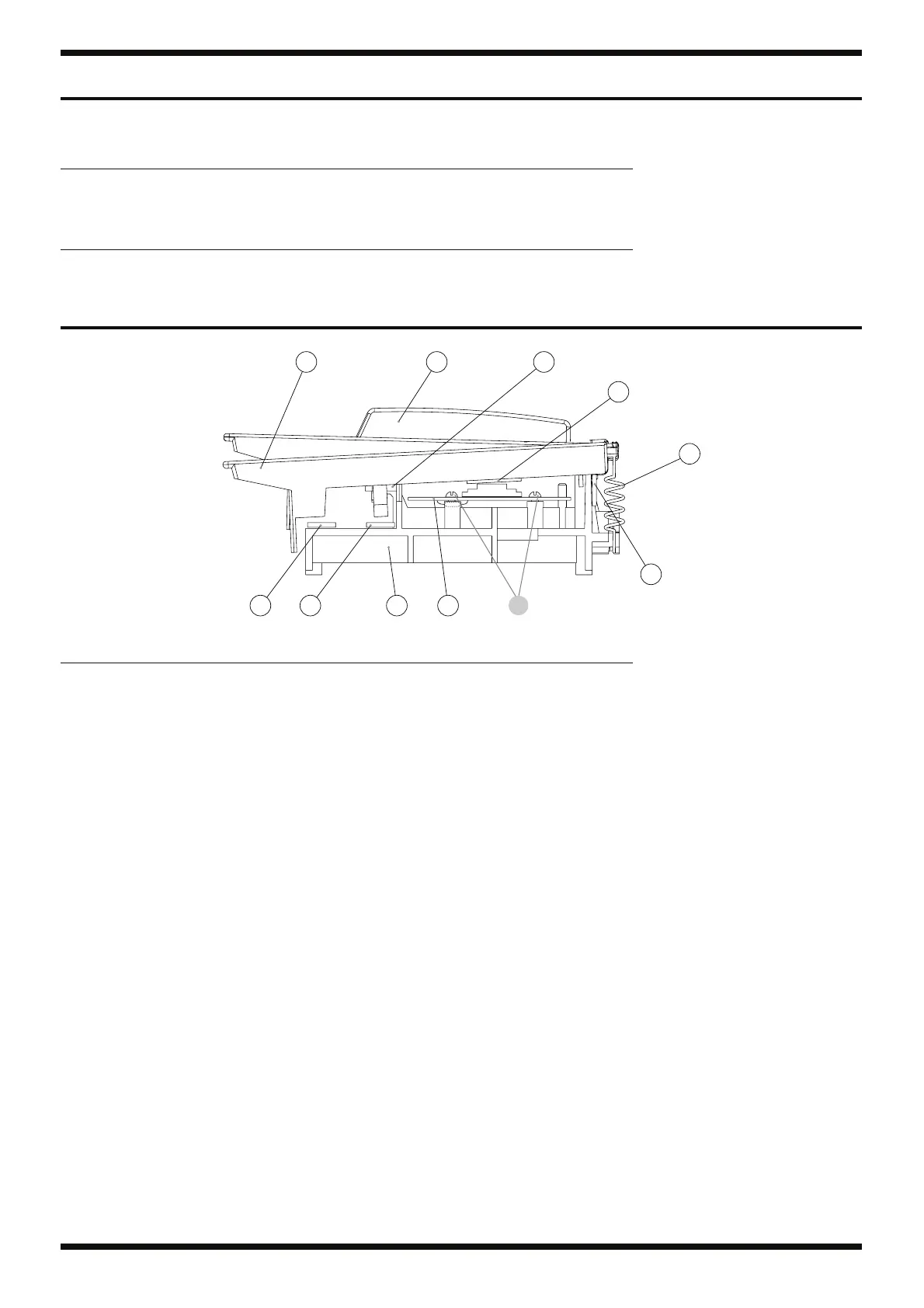

Keyboard Parts List
fig.key-MSK2.eps
No. Part Code Part Name Description Q’ty
a 40011323 SCREW 3X10 BINDING TAPTITE P BZC 21
No. Part Code Part Name Description Q’ty
b 40011312 SCREW 3X8 BINDING TAPTITE P FE BZC 14
a
1 2
4
3
6
5
78910
No. Part Code Part Name Description Q’ty
5100009999 KEYBOARD ASSY MSK-249 W/O CABLE (990-08028-10-09)
1 03786378 NATURAL KEY C FOR MSK-2 (710-03111-11-00) 4
03786389 NATURAL KEY D FOR MSK-2(710-03111-12-00) 4
03786390 NATURAL KEY E FOR MSK-2 (710-03111-13-00) 4
03786401 NATURAL KEY F FOR MSK-2 (710-03111-18-00) 4
03786412 NATURAL KEY G FOR MSK-2 (710-03111-15-00) 4
03786423 NATURAL KEY A FOR MSK-2 (710-03111-16-00) 4
03786434 NATURAL KEY B FOR MSK-2 (710-03111-07-00) 4
03786445 NATURAL KEY C’ FOR MSK-2 (710-03111-14-00) 1
2 03786456 SHARP KEY FOR MSK-2 (710-03111-21-01) 20
3 5100009931 KEY FELT MSK-2 HOOK T2.5X695X5.5 1
4 03456967 COILED SPRING NATURAL KEY(752-01015-01-02) 29
03456978 COILED SPRING SHARP KEY 20
5 5100009933 KEY FELT MSK-2 BACK T3.0X677X6 1
6 04230834 RUBBER SWITCH 12P FOR MSK-1/2(722-01015-01-05) 3
04230845 RUBBER SWITCH 13P MSK-1/MSK-2(722-01015-02-05) 1
7 03897389 PWB KEYBOARD ASSY 990-02067-10-00 1
8 ******** CHASSIS KEYBOARD FOR MSK-2 1
9 5100010749 KEY FELT MSK-2 BOTTOM L T2.5X677X15 1
10 5100009935 KEY FELT MSK-2 BOTTOM M T2.5X677X10 1
a 40011189 SCREW 3X8 PAN TAPTITE-P FE ZC 28
To Next Page
