Roland PX-7B User Manual

3
Oct. 2013 PX-7B, PX-7C

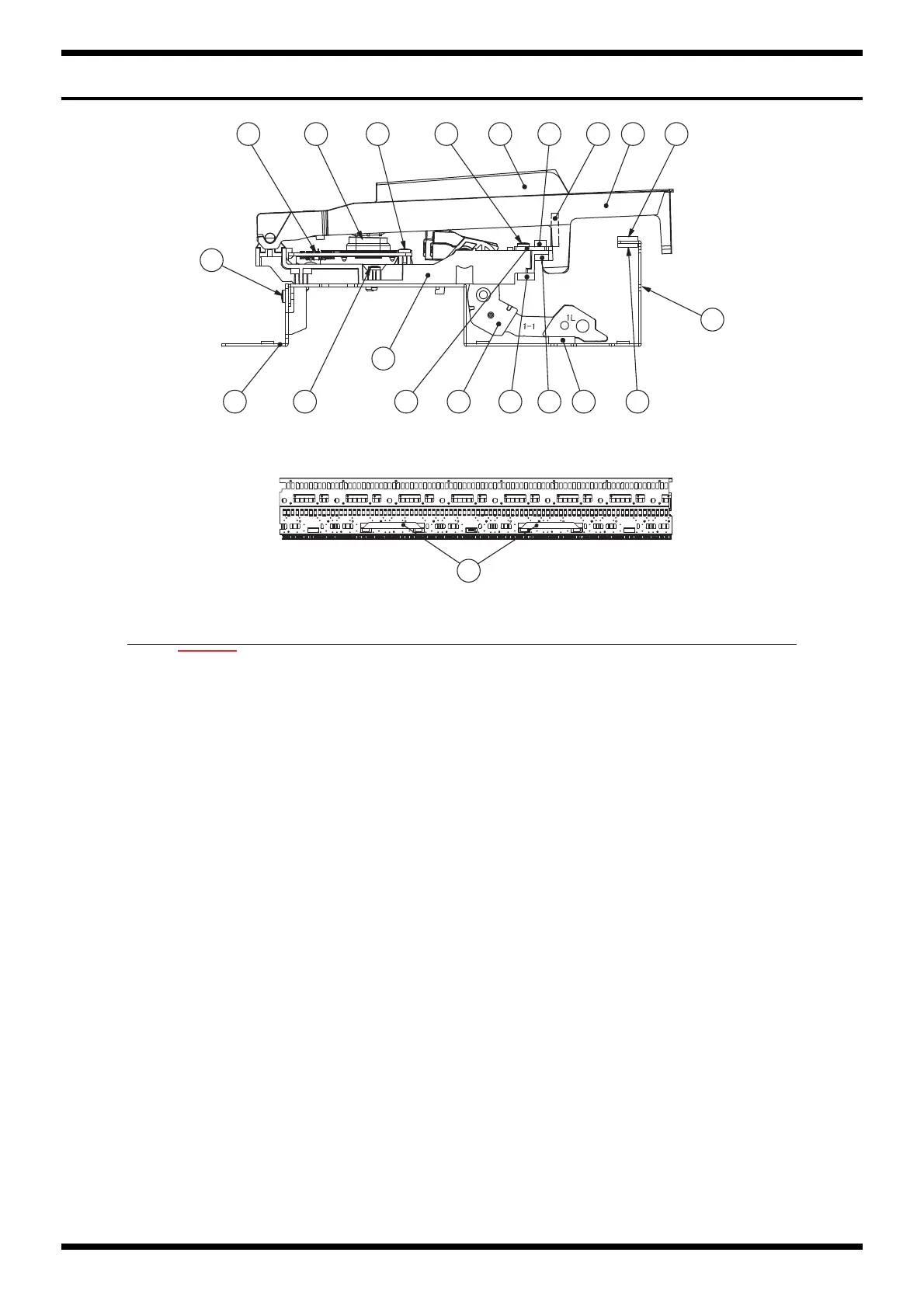

Keyboard Parts List (PX-7C)
fig.key-PX-7C.eps
9821
37
18
6
5
4
10 9
11
1217 13
14
15
1619 16
No. Part Code Part Name Description Q'ty
5100053166 KEYBOARD ASSY PX-7C SV SERVICE ASSY
5100054674
1 5100046363 N-KEY C PX-7C 7
5100046364 N-KEY D PX-7C 7
5100046365 N-KEY E PX-7C 7
5100046366 N-KEY F PX-7C 7
5100046367 N-KEY G PX-7C 7
5100046361 N-KEY A PX-7C 7
5100046362 N-KEY B PX-7C 8
5100046368 N-KEY A DASH PX-7C 1
5100046369 N-KEY C DASH PX-7C 1
2 5100046370 S-KEY PX-7C 36
3 5100048710 HAMMER-1 FOR N-KEY PX-7C 13
5100048711 HAMMER-2 FOR N-KEY PX-7C 13
5100048712 HAMMER-3 FOR N-KEY PX-7C 13
5100048713 HAMMER-4 FOR N-KEY PX-7C 13
5100048714 HAMMER-1 FOR S-KEY PX-7C 9
5100048715 HAMMER-2 FOR S-KEY PX-7C 9
5100048716 HAMMER-3 FOR S-KEY PX-7C 9
5100048717 HAMMER-4 FOR S-KEY PX-7C 9
4 ******** CHASSIS 88P PX-7 1
5 ******** SUB CHASSIS 12P PX-7 7
******** SUB CHASSIS 4P PX-7 1
6 ******** GUIDE HOLDER PX-7 1
7 5100046729 KEYBOARD HOLDER PX-7C 6
8 5100046717 GUIDE BUSHING PX-7C 88
9 5100048726 KEY STOP CUSHION A PX-7C 2
10 5100019663 KEY CUSHION B PX-7 1
11 5100048727 KEY STOP CUSHION B PX-7 1
12 5100019111 HAMMER CUSHION A PX-7 1
13 5100019664 HAMMER CUSHION B PX-7 1
14 5100048968 PWB SET PX-7C 1
15 40011056 SCREW 3X6 BINDING TAPTITE B ZC 12
16 40011312 SCREW 3X8 BINDING TAPTITE P FE BZC 52
17 40012256 SCREW 3X10 BINDING TAPTITE B FE ZC 60
18 5100048969 FLAT CABLE SML2CD-20X222-BDX8(BL)-P1.0-S4 2
19 5100047674 RUBBER SWITCH 12P 8
