6
Oct. 2013 PX-7B, PX-7C

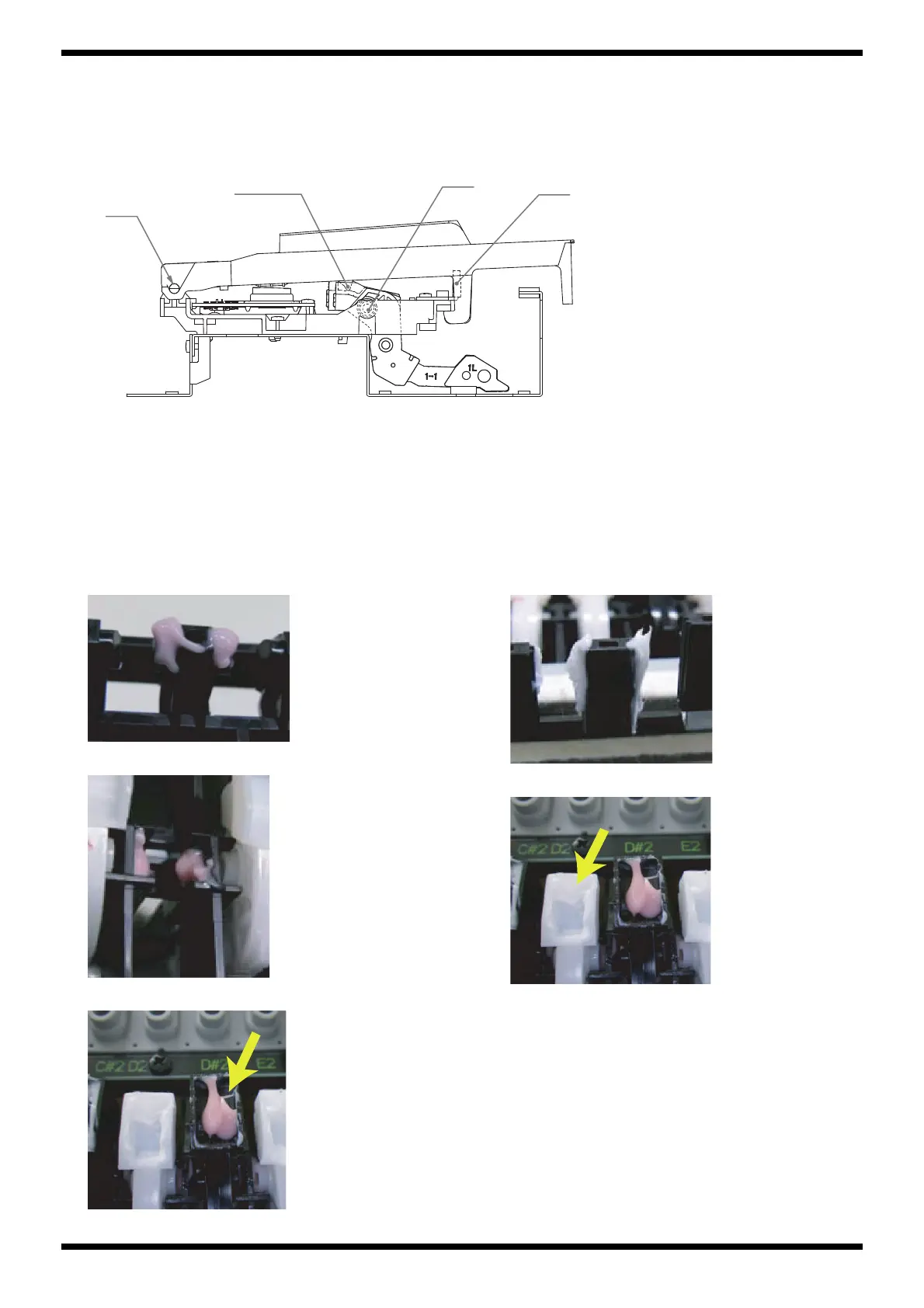

Application of Grease
Greasing Points
After the key or hammer has been replaced, the specified grease must be applied to the following points as shown in the figure.
fig.key-grease.eps
1.MORICOAT G-1039...........pink (#17041858)
(a) Key pivot
(b) Hammer pivot
(c) Contact between sharp key and hammer (actuator area)
2.FLOIL G-336A............white (#17049543)
(a) Key guide
(b) Contact between natural key and hammer (actuator area)
The Reasonable Amount of Grease
fig.key-grease-1a.eps
1-(a) Key pivot
fig.key-grease-1b.eps
1-(b) Hammer pivot
fig.key-grease-2b.eps
1-(c) Contact between sharp key and hammer
fig.key-grease-2a.eps
2-(a) Key guide
fig.key-grease-2b.eps
2-(b) Contact between natural key and hammer
1-(a)
1-(b)
2-(a)
1-(c), 2-(b)
