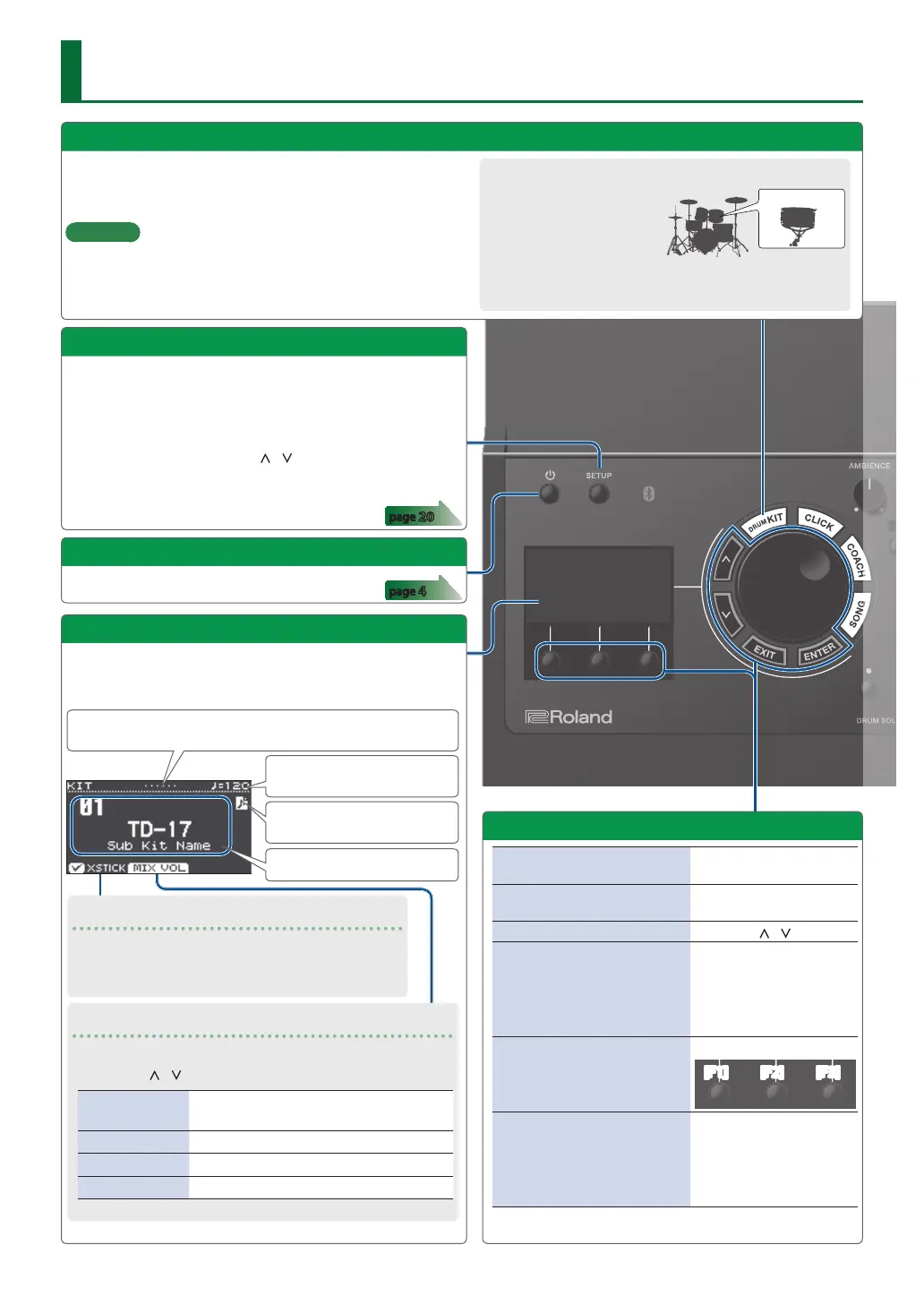

Operating Guide (Panel Descriptions)
Selecting a Kit
This unit lets you enjoy performing with a variety of sounds.
1. Press the [DRUM KIT] button.
2. Turn the dial to select a kit.
Reference
For details on the kits, refer to “Data List” (PDF).
* The illustration shows the TD-17.
Viewing the Display
The kit name, tempo, and currently available functions are
shown here.
Screen at startup (KIT screen)
Using cross stick technique
Each time you press the [F1] (XSTICK) button, you
switch between sounding or not sounding the
snare pad’s cross stick sound (p. 7).
Adjusting various volumes
1. Press the [F2] (MIX VOL) button.
2. Use the [ ] [ ] buttons and the dial to adjust the value.
Audio In
Input volume of the device connected
to the MIX IN jack and Bluetooth
Click Volume of the click
Song Volume of the song
Guide Track Volume of the guide track (p. 13)
Kit number and name
Tempo: when click is on
Speed: when a song is playing back
The trigger meter shows the level of the trigger signal that’s received
when you strike a pad.
User sample icon:
When using a user sample (p. 15)
Making Overall Settings
Here’s how to make overall settings for the entire unit.
1. Press the [SETUP] button.
2. Use the dial to select a menu item, and press the [ENTER]
button.
3. Use the function buttons, [ ] [ ] buttons, or dial to edit
the value.
Conrming an Operation / Editing a Value
Conrm an operation /
Proceed to the next screen
Press the [ENTER]
button.
Cancel an operation / Return
to the previous screen
Press the [EXIT] button.
Move the cursor up/down Press the [
] [ ] buttons.
Edit the value
Turn the dial.
If you hold down the
[ENTER] button and
turn the dial, the value
changes rapidly.
Specify a function shown in
the bottom of the display
Press a function button.
[F1] [F2] [F3]
Stop all currently-heard
sound (All Sound O)
Hold down the [ENTER]
button and press the
[EXIT] button.
You can stop (mute) all
currently-playing sound.
Kits and Instruments
On this unit, the sound
you hear when you strike
each pad is called an
“instrument.” A “kit” is a set
of sounds (instruments)
assigned to the pads.
Instrument
Kit
Turning the Power On/O
Turns the power on/o.
page
4
page
20
