Roland V-Drums CY-13R User Manual

4

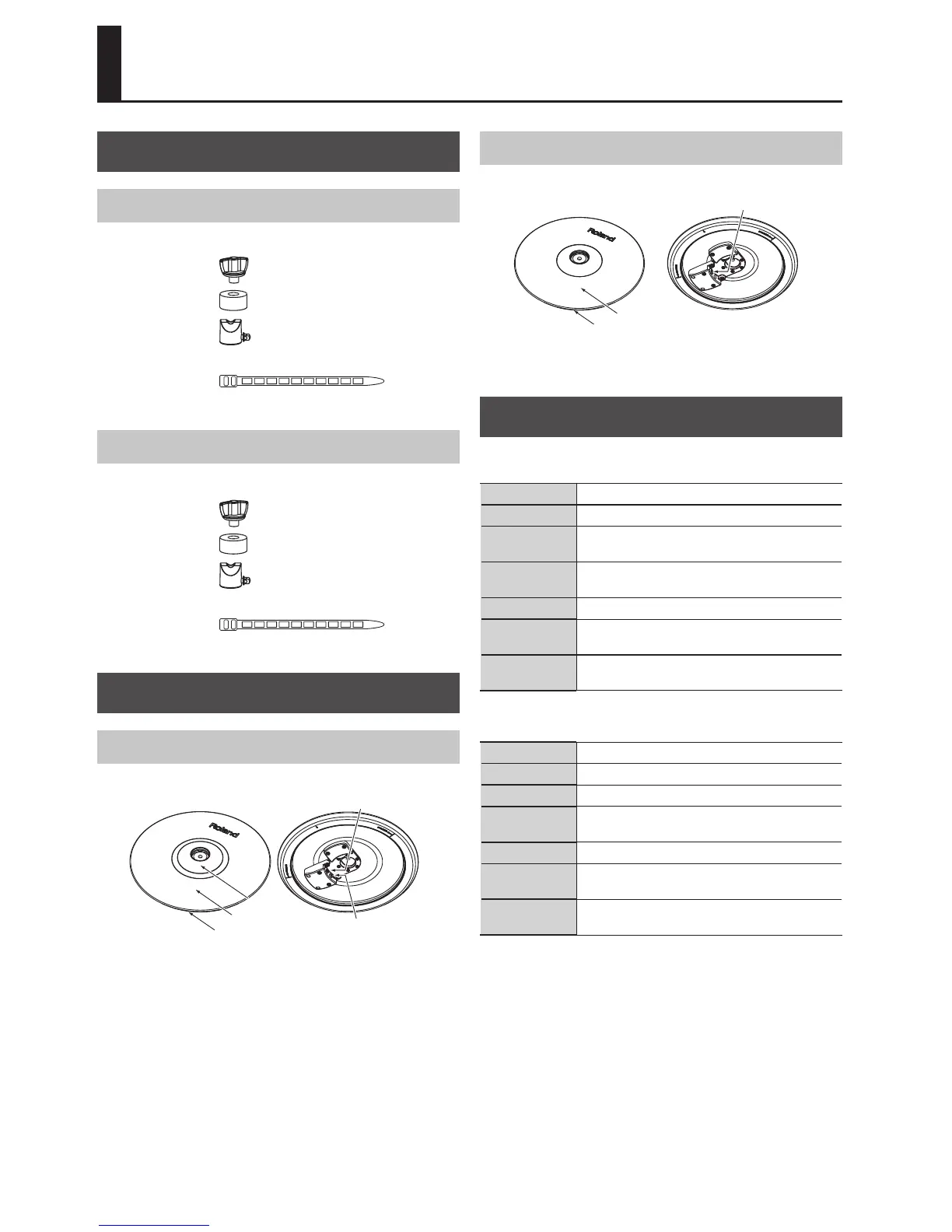

What’s in the Package
CY-13R (Ride)
• CY-13R Cymbal pad
• Wing nut
• Felt washer
• Stopper
• Connection cable (stereo) x 2
• Cable tie
• Owner´s manual (this document)
CY-12C (Crash)
• CY-12C Cymbal pad
• Wing nut
• Felt washer
• Stopper
• Connection cable (stereo)
• Cable tie
• Owner´s manual (this document)
Denitions & Names of Parts
CY-13R
Bow
Edge
Bell
BOW/EDGE
OUTPUT jack
BELL
OUTPUT jack
Diameter: 13 inches
* The CY-13R is not capable of detecting the striking
position.
If you’re using a Roland percussion sound module that is
capable of detecting the striking position, you’ll need to
set the ride’s Position Ctrl to OFF.
For details on how to make the setting, refer to the
owner’s manual that came with your percussion sound
module.
CY-12C
BOW/EDGE
OUTPUT jack
Diameter: 12 inches
Bow
Edge
* The CY-12C has no BOW/BELL OUTPUT jack.
Main Specications
CY-13R (Ride)
Size 13 inches
Trigger 3 (Bow/Bell/Edge)
Connectors
BELL OUTPUT jack,
BOW/EDGE OUTPUT jack
Dimensions
331 (W) x 331 (D) x 48 (H) mm
13-1/16 (W) x 13-1/16 (D) x 1-15/16 (H) inches
Weight 1.1 kg / 2 lbs 7 oz
Accessories
Owner’s manual, Wing nut, Felt washer, Stopper,
Connection cable (stereo) x 2, Cable tie
Options
Cymbal mount (MDY series)
Cymbal parts set (CYM-10)
CY-12C (Crash)
Size 12 inches
Trigger 2 (Bow/Edge)
Connectors BOW/EDGE OUTPUT jack
Dimensions
305 (W) x 305 (D) x 45 (H) mm
12-1/16 (W) x 12-1/16 (D) x 1-13/16 (H) inches
Weight 940 g / 2 lbs 2 oz
Accessories
Owner’s manual, Wing nut, Felt washer, Stopper,
Connection cable (stereo), Cable tie
Options
Cymbal mount (MDY series)
Cymbal parts set (CYM-10)
* In the interest of product improvement, the specica-
tions and/or appearance of this unit are subject to
change without prior notice.
Getting Started
