6. While holding the unit in the operating position
(Fig. 3), position the J-handle to the location
that provides you the best grip.
7. Tighten the clamp screws evenly, until the J-handle
is secure.
INSTALLING THE CUTTING ATTACHMENT
SHIELD
Use the following instructions if the cutting attachment
shield on your unit is not installed.
WARNING: Never operate the trimmer
without the cutting attachment shield in
place to prevent serious personal injury.
1. Slide the cutting attachment shield into the shield
mount on the cutting attachment. Align the screw
holes in the shield with the holes in the cutting
attachment (Fig. 4).

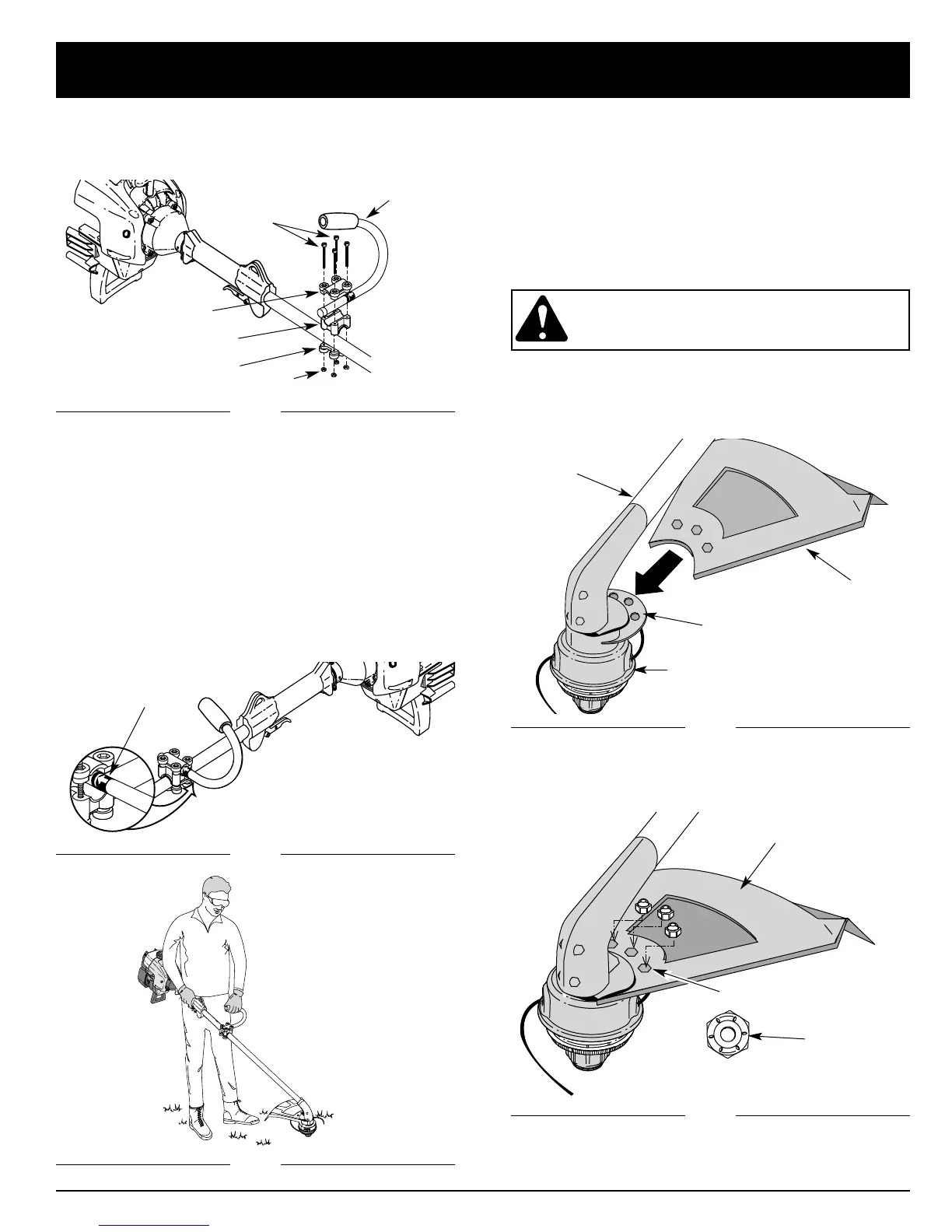

ASSEMBLY INSTRUCTIONS
8
Decal
INSTALLING AND ADJUSTING THE J-HANDLE
1. Place the J-handle between the top and middle
clamp pieces (Fig. 1).
(4) Screws
Top Clamp
J-Handle
Middle Clamp
Bottom Clamp
Nuts
2. While holding the three pieces together, install the
four (4) screws through the top clamp and into
middle clamp.
NOTE: The holes in the top and middle clamp will line up
only when assembled correctly.
3. Place the clamps and J-handle the over the shaft
housing and onto the bottom clamp.
4. Hold each hex nut in the bottom clamp recess with a
finger. Start screws with a large Phillips screwdriver.
Do not tighten until you make the handle adjustment.
5. Slide the J-handle in or out until the arrow/white line
on the decal touches the clamp assembly (Fig. 2).
Fig. 1
Fig. 4
Fig. 5
Fig. 2
Fig. 3
Cutting Attachment
Shield
Shaft Housing
Hex Lock Nut
Cutting Attachment
Shield
Cutting Attachment
2. Place a hex lock nut into one of the three recessed
holes on the top of the cutting attachment shield
(Fig 5).
Recessed Holes
Shield Mount
