Page 20

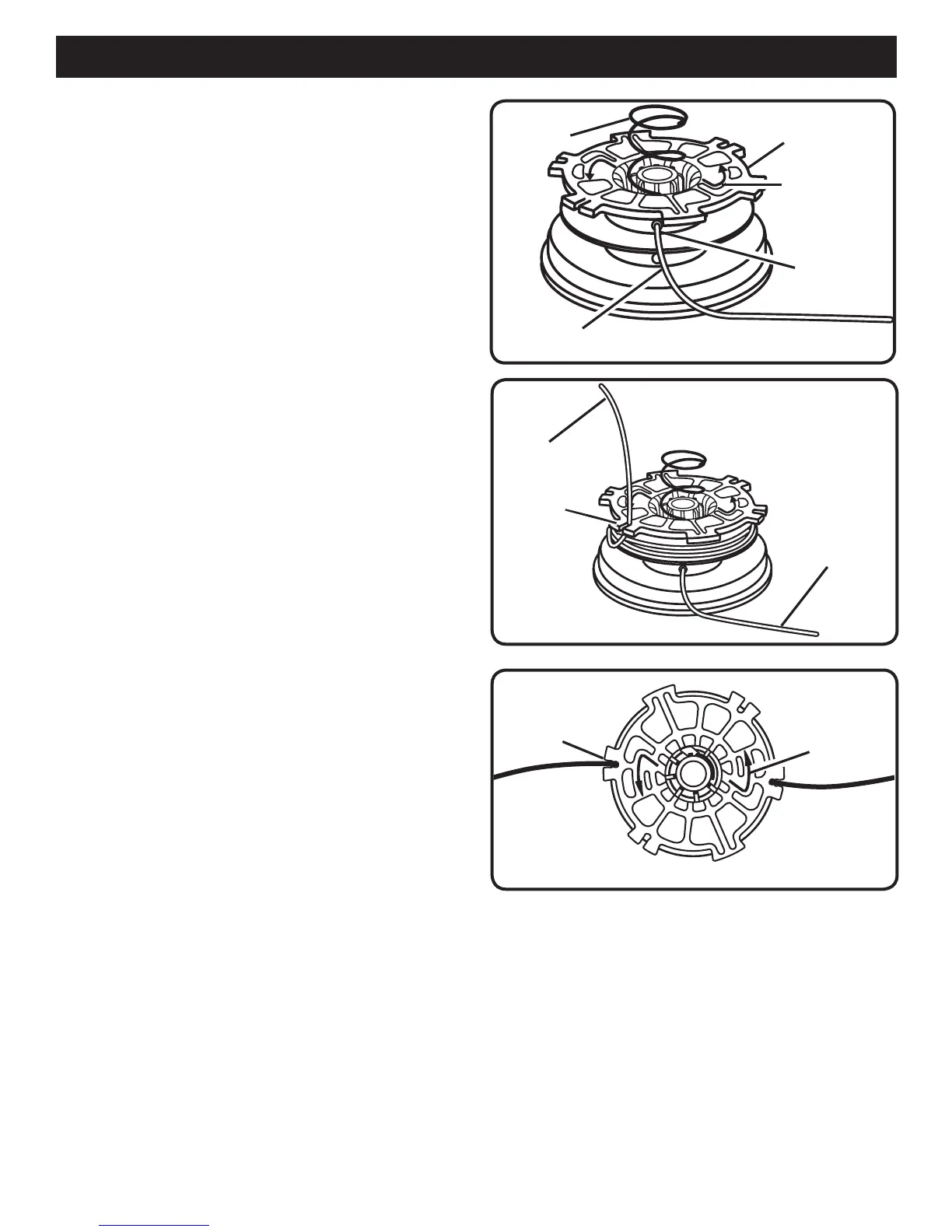

STRING REPLACEMENT
See Figures 26 - 28.
Use only monofilament string. Use original manufacturer's
replacement string for best performance.
String Diameter:
CS30 - .080 in. (2.0 mm)
SS30 - .095 in. (2.4 mm)
BC30 - .095 in. (2.4 mm)
1. Stop the engine, disconnect the spark plug wire. Hold the
string head and unscrew the spool retainer.
To remove the spool retainer:
Turn the spool retainer counterclockwise for models
CS30.
Turn the spool retainer clockwise for models SS30 and
BC30.
2. Remove the spool from the string head.
NOTE: Keep the spring attached to the spool. Remove
any old string remaining on the spool.
3. Cut two pieces of string, each being approximately 9 ft.
(2.7 m) long.
4. Insert the first string into the anchor hole in the upper part
of the spool. Wind the first string around the upper part of
the spool counterclockwise, as shown by the arrows on
the spool. Place string in the slot on upper spool flange,
leaving about 6 in. (152 mm) extended beyond the slot.
Do not overfill. After winding the string, there should be
a
t least 1/4 in. (6 mm) bet
ween the wound string and the
outside edge of the spool.
5. Repeat above step with second string, using the bottom
part of spool. Do not overfill.
6. Replace the spool and the spool retainer. Refer to “Spool
Replacement” earlier in this manual.
Fig. 27
Fig. 28
SPRING
SLOT
ARROWS ON
SPOOL
SECOND
STRING
FIRST STRING
Fig. 26
SPOOL
ANCHOR
HOLE
ARROWS ON
SPOOL
FIRST STRING
SLOT
MAINTENANCE
