8 9
QUICK MODE
SELECTOR
FEATURES

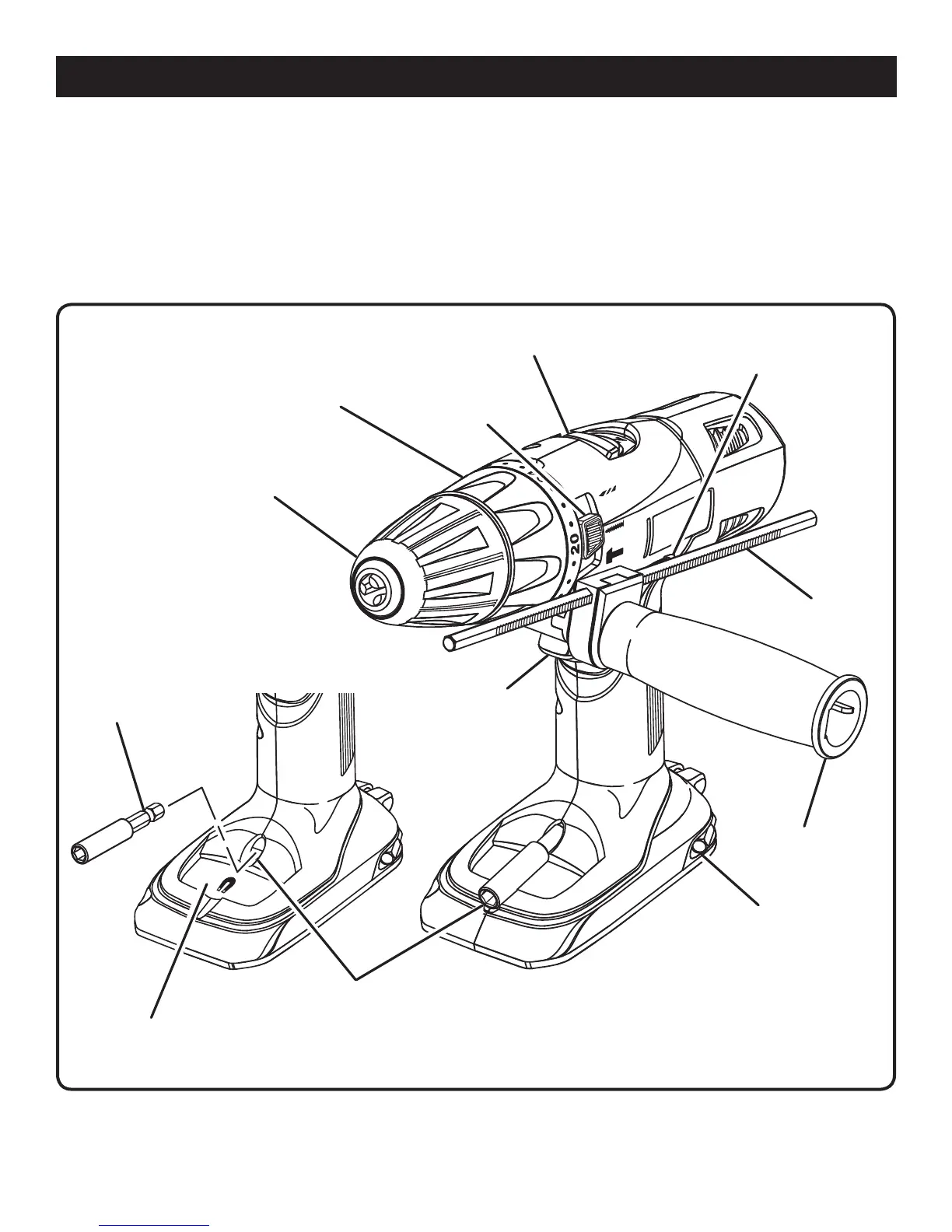

Fig. 1
PRODUCT SPECIFICATIONS
Chuck .......................................................... 1/2 in. Keyless
Motor..................................................................18 Volt DC
Switch..........................................................Variable Speed
No Load Speed ....................................0-440/0-1,600/min.
Hammer Speed ............................. 0-5,720/0-20,800 BPM*
*Blows Per Minute
Clutch.................................................................24 position
Torque.................................................. Maximum 330 in.lb.
Charger Input ................................... 120 V, 60 Hz, AC only
Charge Rate .............................................................1 Hour
SWITCH
TRIGGER
TWO-SPEED
GEAR TRAIN (HI-LO)
DIRECTION OF
ROTATION SELECTOR
(FORWARD/REVERSE/CENTER LOCK)
KEYLESS CHUCK
BIT
STORAGE
TORQUE
ADJUSTMENT RING
AUXILIARY
HANDLE
ASSEMBLY
DEPTH
STOP ROD
MAG TRAY™
MAGNETIC BIT
HOLDER
MAGNETIC BIT HOLDER
STORAGE
