Page 8

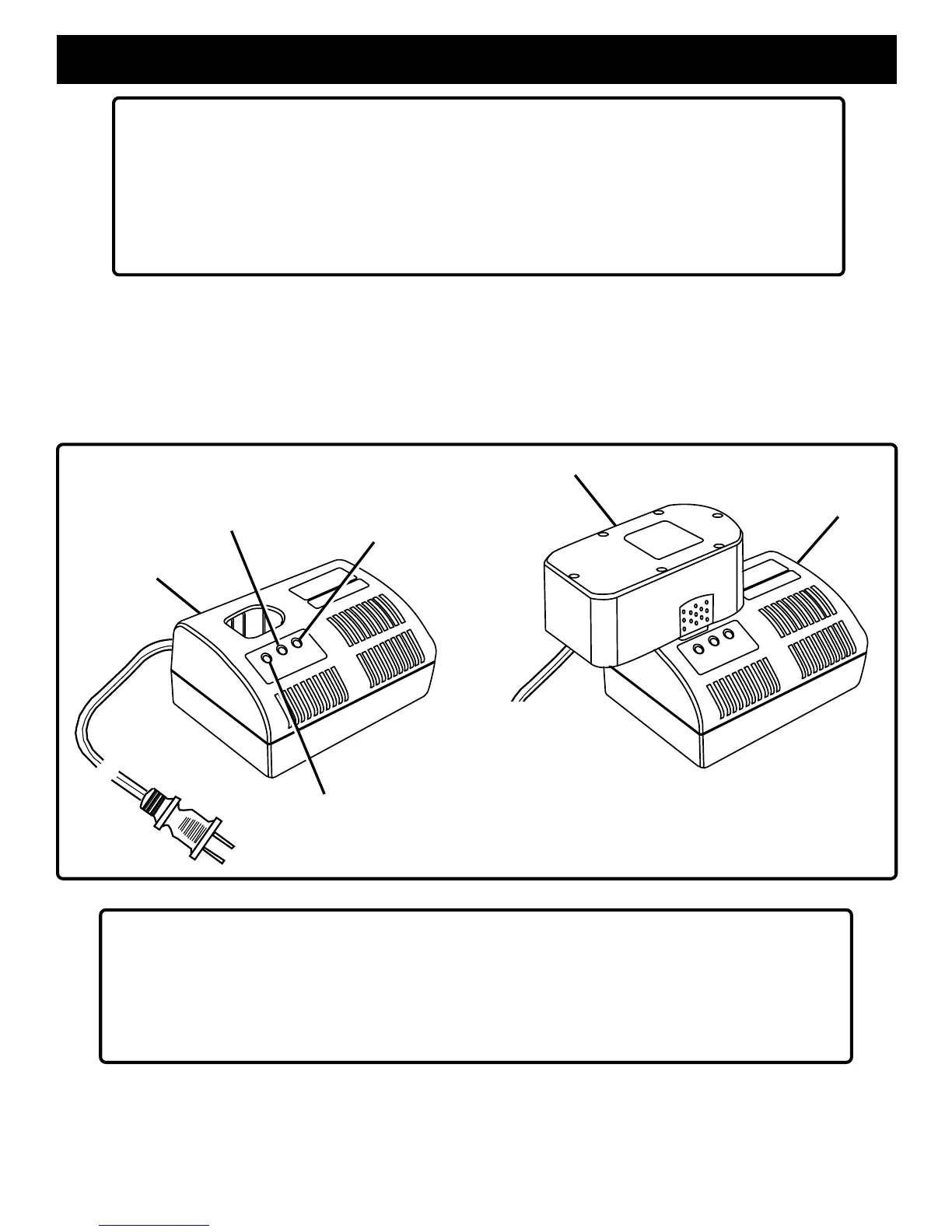

Fig. 3
YELLOW AND GREEN LIGHTS
INDICATE SOFT START MODE
RED LIGHT "ON"
INDICATES FAST
CHARGING MODE
CHARGER
BATTERY PACK
CHARGER
GREEN LIGHT "ON"
INDICATES FULLY CHARGED
OR IN SLOW CHARGING
MODE
OPERATION
CHARGING WITH CHARGER 1400666, 1400656, OR 1400667
See Figure 3.
■ Normally, the yellow and green lights on charger will come on. This indicates charger is in control charge mode and
should switch to fast charge mode within 5 minutes. When charger is in fast charge mode the red light will come on. If
after a period of 15 minutes the yellow and green lights remain on, remove battery pack, wait 1 minute and reinsert
battery pack in charger. If the yellow and green lights continue to remain on after an additional 15 minutes, the battery
pack is damaged and will not accept a charge.
LED FUNCTION OF CHARGER 1400677
LED WILL BE LIGHTED TO INDICATE STATUS OF CHARGER AND BATTERY PACK:
■ Red LED Lighted = Fast Charging Mode.
■ Green LED Lighted = Fully Charged Or In Slow Charging Mode To Maintain Battery Pack Charge.
■ Red LED Flashing = Hot or Deeply Discharged Battery Pack. Also Defective Battery Pack After 1 hour.
■ Yellow LED Lighted and Red LED Flashing = Defective Battery Pack.
LED FUNCTION OF CHARGER 1400666, 1400656 AND 1400667
LED WILL BE LIGHTED TO INDICATE STATUS OF CHARGER AND BATTERY PACK:
■ Red LED Lighted = Fast Charging Mode.
■ Green LED Lighted = Fully Charged Or In Slow Charging Mode To Maintain Battery Pack.
■ Yellow and Green LED Lighted = Soft Start Mode Or After 1/2 Hour Equals Hot Or Defective Battery Pack.
To Next Page
