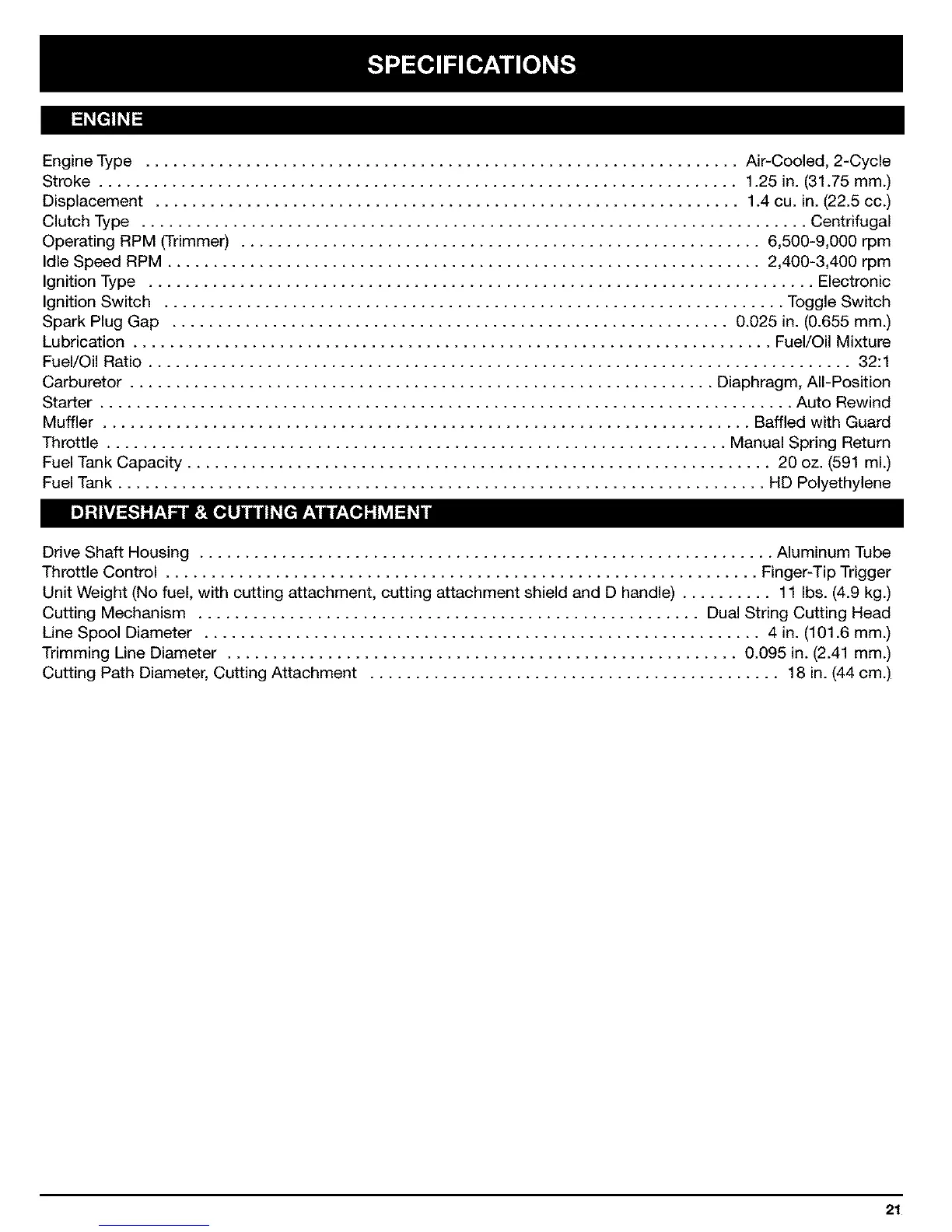

Ryobi Trimmer User Manual

Engine Type ................................................................. Air-Cooled, 2-Cycle
Stroke ...................................................................... 1.25 in. (31.75 mm.)
Displacement ................................................................ 1.4 cu. in. (22.5 cc.)
Clutch Type ......................................................................... Centrifugal
Operating RPM (Trimmer) ......................................................... 6,500-9,000 rpm
Idle Speed RPM ................................................................. 2,400-3,400 rpm
Ignition Type ......................................................................... Electronic
Ignition Switch .................................................................... Toggle Switch
Spark Plug Gap ............................................................. 0.025 in. (0.655 mm.)
Lubrication ...................................................................... Fuel/Oil Mixture
Fuel/Oil Ratio ............................................................................. 32:1
Carburetor ................................................................ Diaphragm, All-Position
Starter ............................................................................ Auto Rewind
Muffler ....................................................................... Baffled with Guard
Throttle .................................................................... Manual Spring Return
Fuel Tank Capacity ................................................................ 20 oz. (591 ml.)
Fuel Tank ....................................................................... HD Polyethylene
Drive Shaft Housing ............................................................... Aluminum Tube
Throttle Control ................................................................. Finger-Tip Trigger
Unit Weight (No fuel, with cutting attachment, cutting attachment shield and D handle) .......... 11 Ibs. (4.9 kg.)
Cutting Mechanism ....................................................... Dual String Cutting Head
Line Spool Diameter ............................................................. 4 in. (101.6 mm.)
Trimming Line Diameter ........................................................ 0.095 in. (2.41 mm.)
Cutting Path Diameter, Cutting Attachment ............................................. 18 in. (44 cm.)
