SABROE SAB 193 S User Manual

Engineering manual - SAB 193-233-283 S A-frame (including ATEX)
008831 en 2022.02
93/175
Technical data
Compressor
SAB
Compressor
SGC
Approx. weight
lbs.
Approx. weight
kg
SAB 193 S SGC 1913 1720 780
SAB 193 L SGC 1918 1895 860
SAB 233 S SGC 2313 2670 1210
SAB 233 L SGC 2317 2950 1340
SAB 233 E SGC 2321 3300 1500
SAB 283 S SGC 2813 4100 1860
SAB 283 L SGC 2817 4400 2000
SAB 283 E SGC 2821 4700 2136
SAB 283 X SGC 2824 5100 2315
Table 21: Compressor weight (without coupling)
6.3 Planning the machine room
When planning the machine room, make sure that there is enough space around the plant to
allow easy access for repair and maintenance tasks.
See also complete dimensioned sketches of the individual compressor types and units.

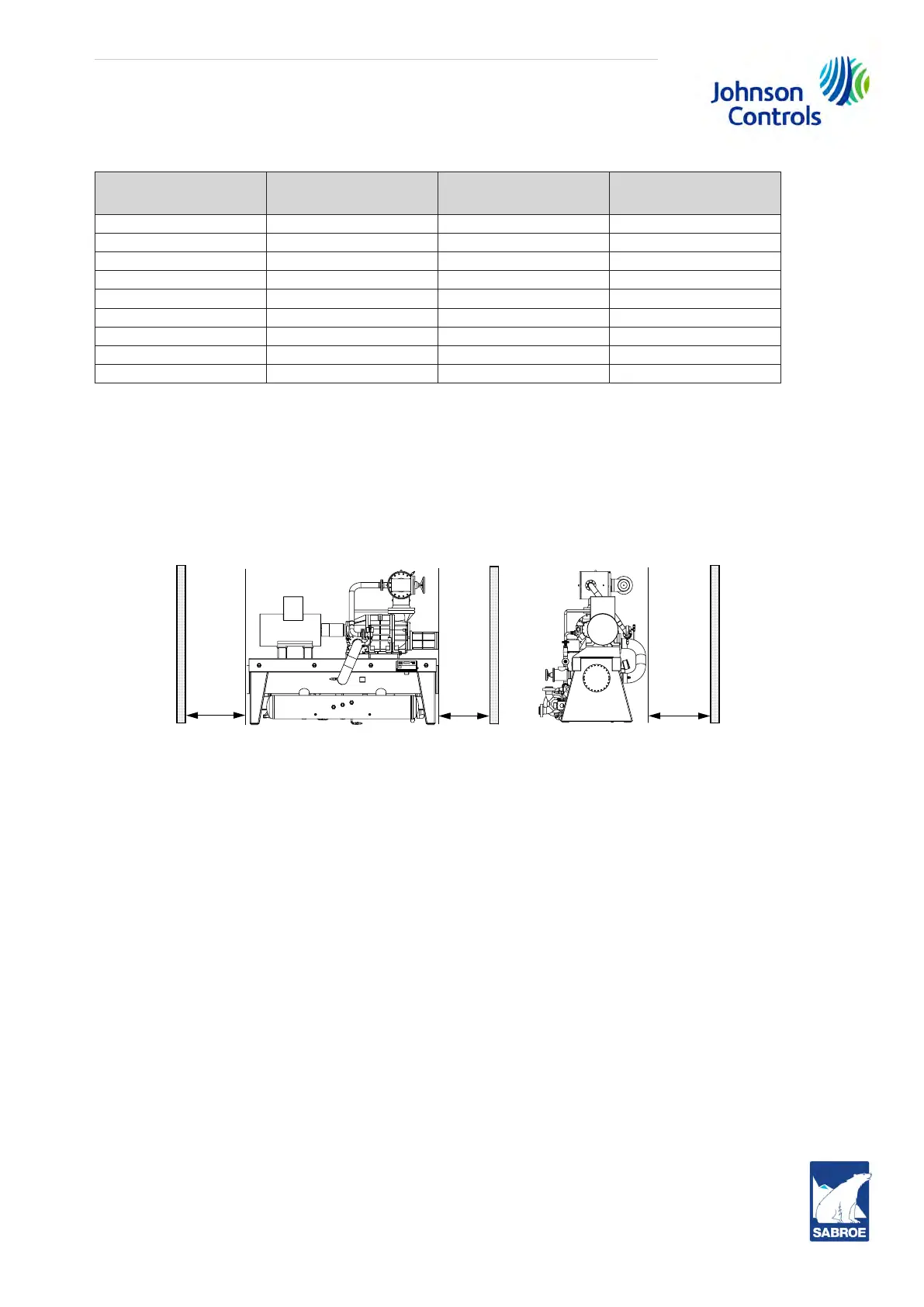

Fig. 65: Planning the machine room
