Chapter 4 Start-up and Operation
4.1 Keypad Description

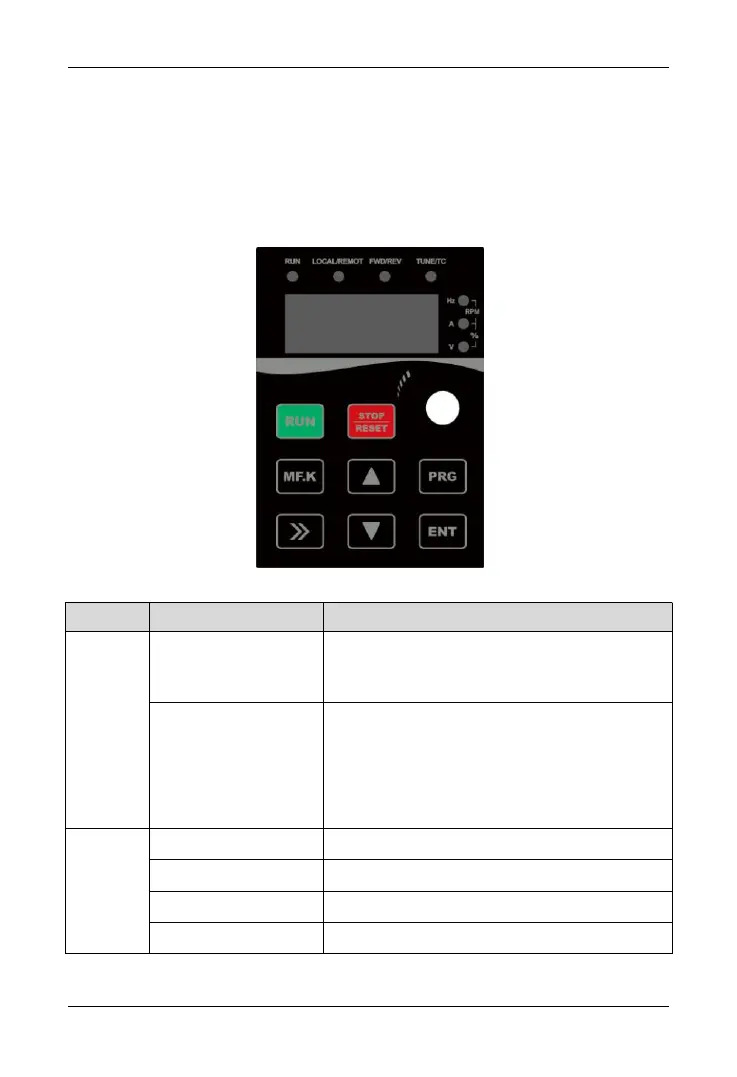

Figure 12 Keypad Schematic Diagram
Item
Name
Function
Indicator
light
Unit indicator light
HZ: Frequency unit； A：Current unit； V：Voltage
unit；
RPM（Hz+A）：Speed unit；%（A+V）：Percentage
Status indicator light
RUN: On/Running；Off/Stopped
FWD/REV：On/FWD；Off/REV；Flickering/Switching
between FWD & REV
TUNE/TC：Flickering /Fault status
LOCAL/REMOTE：On/Terminal control；
Flickering/Communication control；Off/Keypad control
Key
PRG（Programming key）
Enter or exit first class parameters
ENT（Enter key）
Enter next class menu and confirm parameter setting
△（Increment key）
Increment of data and function codes
▽（Decrement key）
Decrement of data and function codes
