R5 Series
- 34 -
5.5 Communication Connection
R5 inverter is standardly equipped with a RS485 interfaceand a RS232 interface .

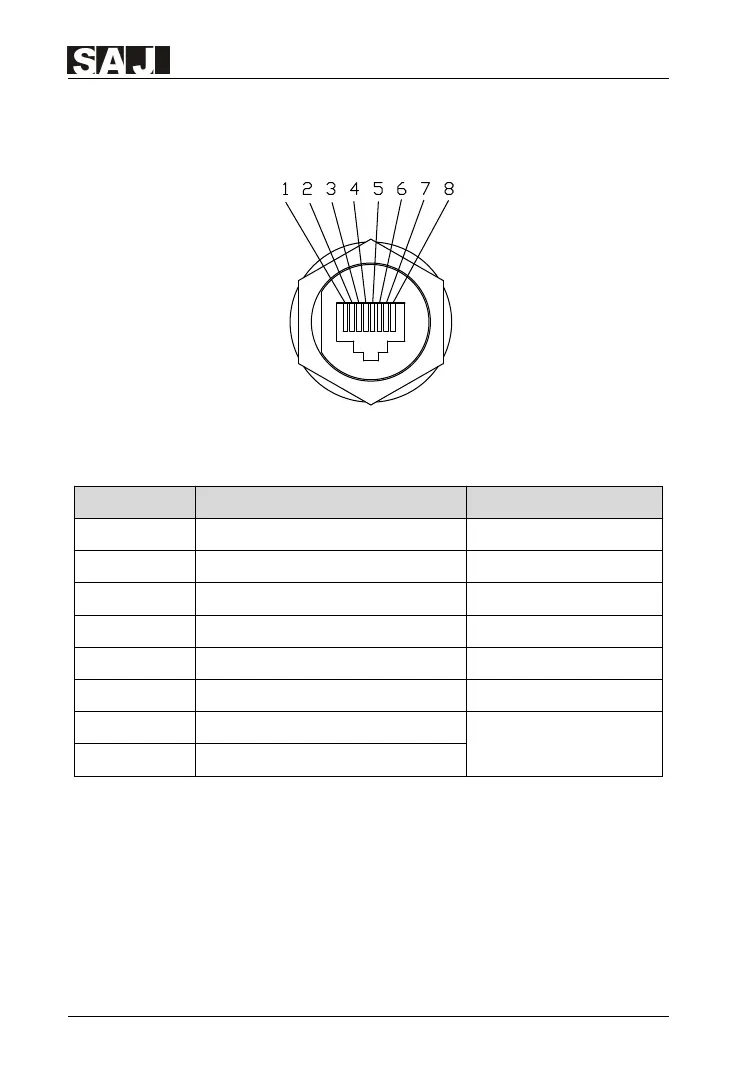

Figure5.16 RS485 pin
Pin Number
Description
Effect
1
Empty
2
GND_W
Ground wire
3
+7V_W
Power source
4
Empty
5
Empty
6
Empty
7
RS485-A
Transmission RS485
differential signal
8
RS485-B
Table 5.5 RS485 pin port definition
