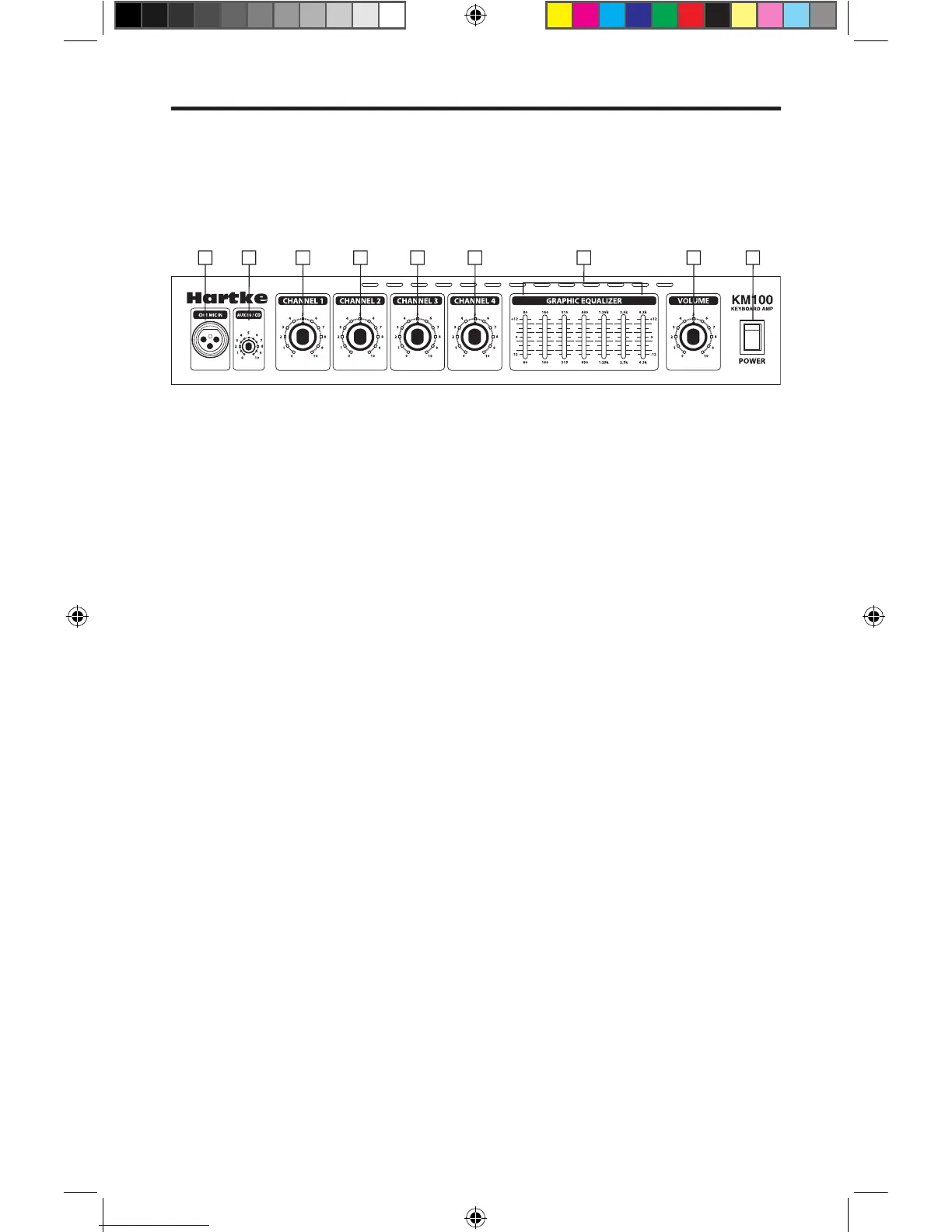

1. Channel 1 MIC IN - XLR input connector for connecting to Channel 1’s Low-noise
Microphone Pre-amp.
2. AUX IN/CD - Your KM Series amplifier features a CD input which you can use with a por-
table CD player, cassette, mini disk or MP3 player. You can use the CD input to jam with pre-
recorded tracks or to learn a riff from a favorite recording.
3. Channel 1 Volume
- Control knob is used to control the overall level of the Channel 1 input.
4. Channel 2 Volum
e – This control knob used to control the overall level of the Channel 2
input.
5. Channel 3 Volume - Control knob
is used to control the overall level of the Channel 3 input.
6. Channel 4 Volume – This control knob
is used to control the overall level of the Channel 4
input.
7. Graphic Equalizer - These sliders allow you to “draw” the tonal response of the system by
adding 12 dB of boost or attenuation to seven different narrow-band frequency areas (100
Hz, 250 Hz, 500 Hz, 1 kHz, 2.5 kHz, 5 kHz, and 10 kHz), affecting the main output signal of
the KM100. When a slider is at its center detented (“0”) position, the selected frequency
area is unaffected (it is said to be flat). When a slider is moved up (above the “0” position,
towards the “+12” position), the selected frequency area is boosted, and when it is moved
down (below the “0” position, towards the “-12” position), the selected frequency area is
attenuated. For more information, see the “About Equalization” section on pages 9 - 10 of
this manual.
8. Volume
- Control knob used to control the overall level the KM60 or KM100 amplifier.
9. Power switch - Use this to power the KM
60 or KM100 on or off.
