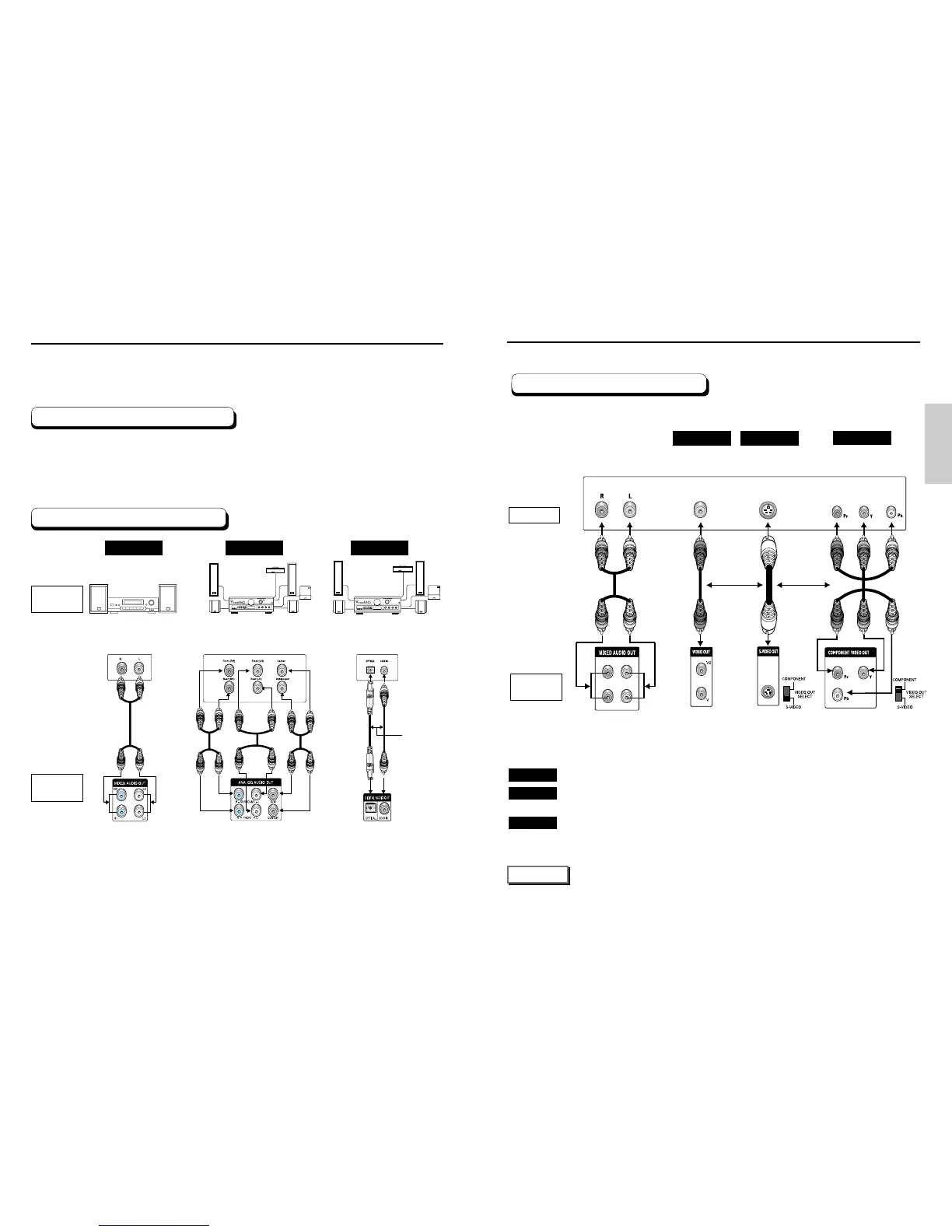

CONNECTIONS
Choosing a Connection
TV (Normal, Widescreen, Projection, etc..)
Method 1
Method 2
Method 3
Connection to a TV (For Video)
TV
Method 1
Method 2
Method 3
e.g) DVD-E537K
DVD
PLAYER
Good
Better
Best
Basic Audio
DVD Player + TV with Video Input Jack
DVD Player + TV with S-Video Input Jack
(If S-Video is selected in the VIDEO OUT SELECT.)
DVD Player + TV with Component Video Jacks
(If COMPONENT is selected in the VIDEO OUT SELECT.)
R1
R2
L1
L2
1
Audio Output
Jacks
OR
OR
AV Cable
S-Video
Cable
Video
Cables
Video Output
Jack
S-Video Jack
Component Video
Jacks
NOTE
• If COMPONENT is selected, S-Video will not work.
• If S-Video is selected, COMPONENT will not work.
20 21
Choosing a Connection
Before Connecting the DVD Player
Connection to an Audio System
Method 1 Method 2 Method 3
AUDIO
SYSTEM
DVD
PLAYER
e.g) DVD-E537K
The following show examples of connections commonly used to connect the DVD player
with a TV and other components.
• Always turn off the DVD player, TV, and other components before you
connect or disconnect any cables.
• Refer to the owner’s manual of the additional components you are connecting for
more information on those particular components.
Mixed Audio Out Analog Audio Out Digital Audio Out
2ch Amplifier
Audio Input Jacks
5.1ch Analog Amplifier
Audio Input Jacks
Dolby Digital Decoder
Digital Audio Input Jacks
OR
