Connecting to an AV Device

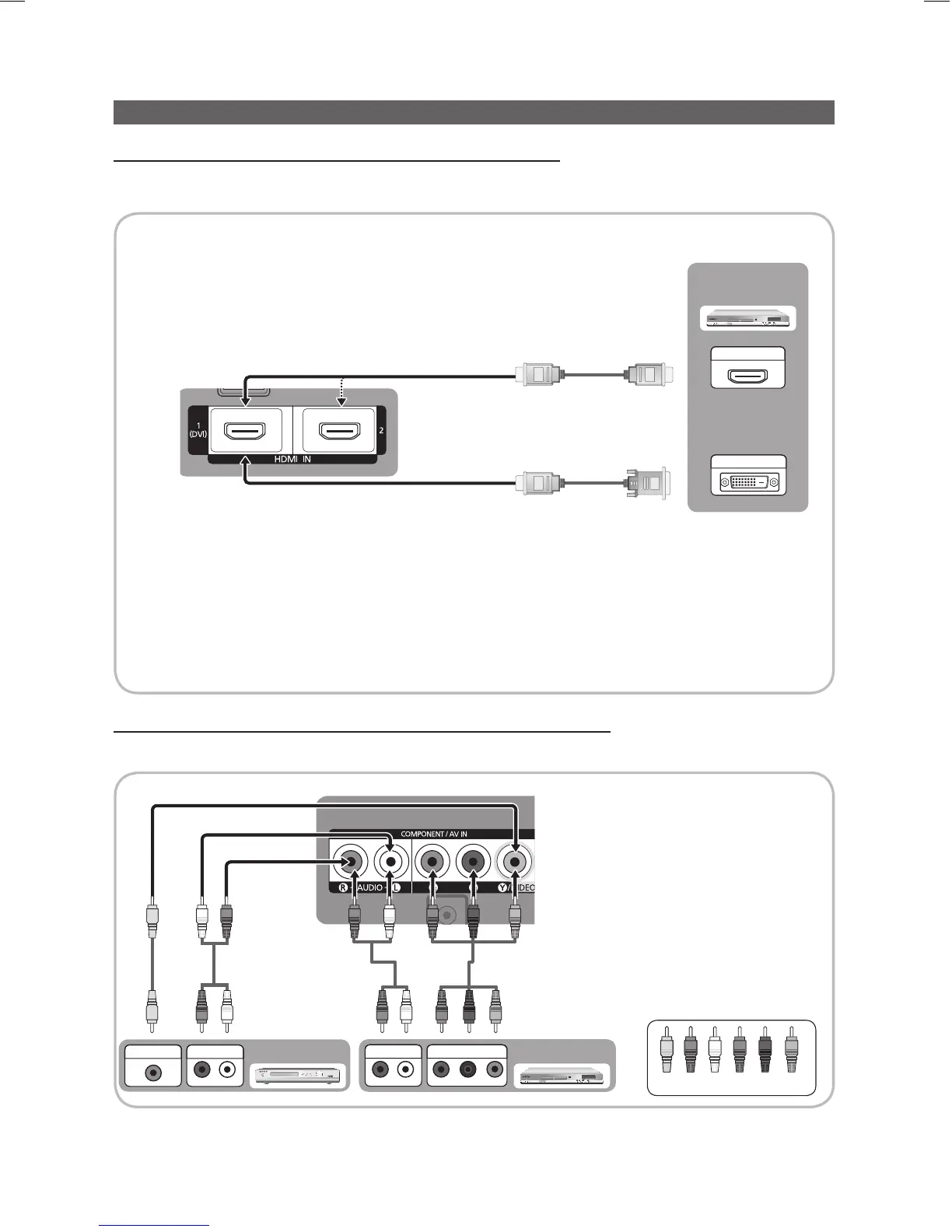

Using an HDMI cable or HDMI to DVI Cable: HD connection (up to 1080p)
We recommend using the HDMI connection for the best quality HD picture.
Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver
✎ HDMI IN 1(DVI), 2
x
When using an HDMI/DVI cable connection, you must use the HDMI/DVI IN jack for video. A DVD, Blu-ray
player, HD cable box, HD STB satellite receiver, cable box, or STB satellite receiver may require a DVI-HDMI (DVI
to HDMI) cable or DVI-HDMI (DVI to HDMI) adapter.
x
The picture may not display normally (if at all) or the audio may not work if an external device that uses an older
version of HDMI mode is connected to the TV. If such a problem occurs, ask the manufacturer of the external
device about the HDMI version and, if out of date, request an upgrade.
x
Be sure to purchase a certifi ed HDMI cable. Otherwise, the picture may not display or a connection error may
occur.
x
If an HDMI to DVI cable is connected to the HDMI IN 1(DVI) port, the audio does not work.
Using a Component Cable: (up to 1080p), Using an Audio/Video Cable: (480i only)
Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR
BD/DVD player/
HD cable/sat box
R-AUDIO-L
P
R PB Y
HDMI OUT
R-AUDIO-L
P
R PB Y
DVI OUT
TV Rear
R-AUDIO-L
P
R PB Y
COMPONENT OUT
R-AUDIO-L
P
R PB Y
AUDIO OUT
Blu-ray player
WY
W Y
B
G
R
W
W
B
G
R
R
R
R
R
R-AUDIO-L
P
R PB Y
VIDEO OUT
VCR
R-AUDIO-L
P
R PB Y
AUDIO OUT
✎ When connecting to AV IN, the color of
the AV IN [Y/VIDEO] jack (Green) does not
match the color of the video cable (Yellow).
✎ For better picture quality, the Component
connection is recommended over the A/V
connection.
W W
B
G
RR
W
Y
Yellow Red White Red Blue Green
TV Rear
English
ConnectionsConnections
