Using a touchscreen monitor (Supported models: QMR-T)
Chapter 02
Touchscreen monitor
Control a PC by tapping the screen instead of using an input device such as a keyboard or
mouse. The touch screen functions by detecting a minute electric current that runs through
your body (capacitive). Make sure to use the surface of your finger tip when tapping the screen.
Read below before using the product
• Take extra care to ensure an electrical substance does not contact the screen. The screen
may not function properly if there is static.
• Do not press hard on the touchscreen with your finger tip. Do not use a sharp object when
tapping the screen. The screen may break or get damaged.
• Do not tap the screen while wearing a glove, with a dirty finger, or using something sharp
such as your fingernail or a ballpoint pen. The screen may not function properly.
• Take extra care to ensure the screen does not contact moisture. The touch sensor may not
function properly.
• Displaying a still image on the screen for an extended period of time may cause after
images (screen degradation) or stains. Switch off the screen when not in use.
Connecting the touch overlay
"
Touch functions are not supported in applications other than the OSD menu and
administrator menu.

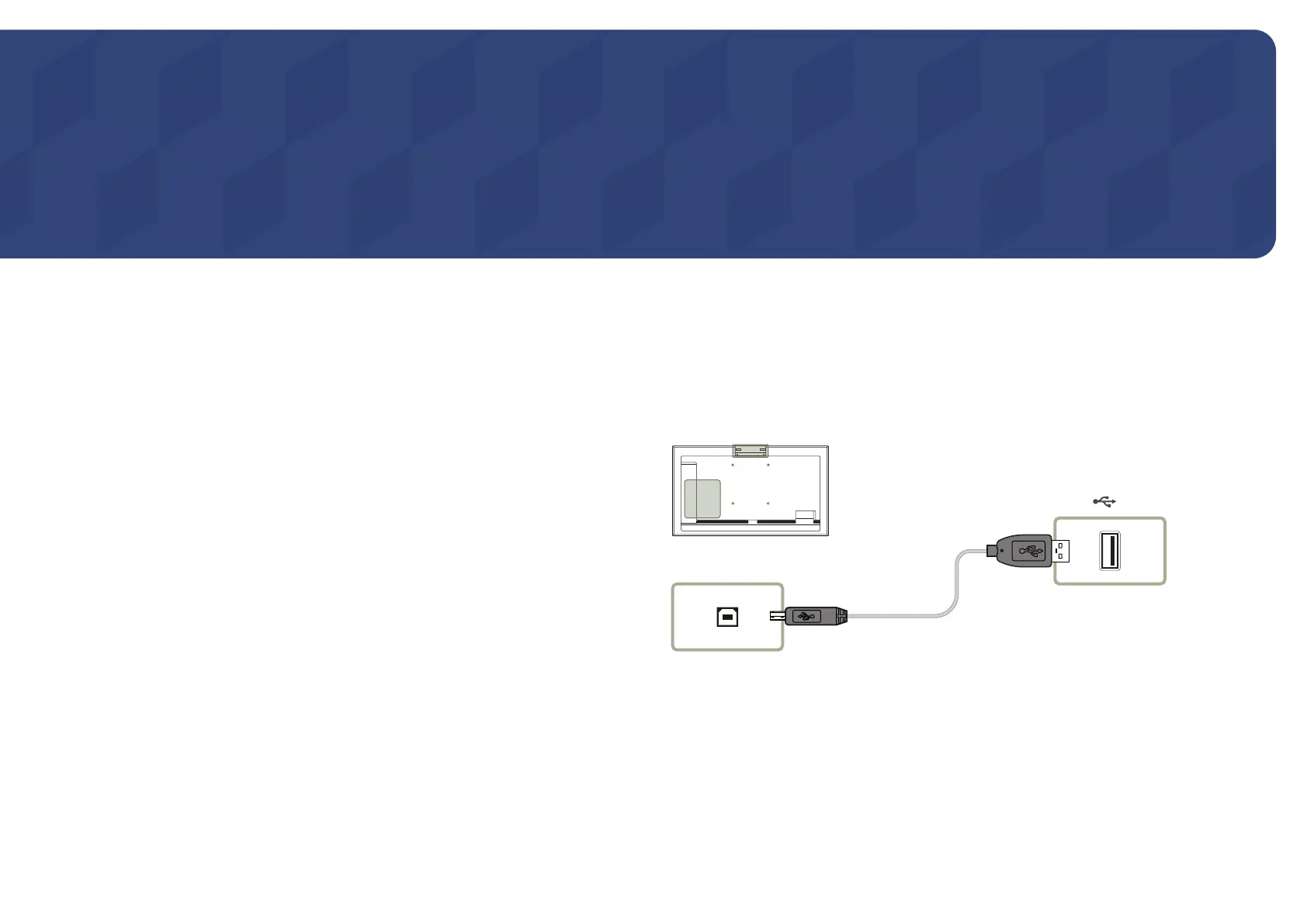

Connect the TOUCH OUT cable between TOUCH OUT SCREEN and USB 1 ¨(1.0A) or USB
2(0.5A) port on the product.
TOUCH OUT SCREEN
USB 1
(1.0A), USB 2(0.5A)

Samsung QB43R Specifications

General

Color gamut	92 %
Pixel pitch	0.2451 x 0.2451 mm
Response time	8 ms
Display diagonal	43 \
Display brightness	350 cd/m²
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	48 - 75 Hz
Horizontal scan range	30 - 81 kHz
LED backlighting type	Edge-LED BLU
Contrast ratio (typical)	5000:1
Display number of colors	16.78 million colors
Active display area (W x H)	941.184 x 529.416 mm
Dynamic contrast ratio marketing name	Mega Contrast
Product color	Black
Product design	Digital signage flat panel
Bezel width (side)	9.2 mm
Placement supported	Indoor
Bezel width (bottom)	11.2 mm
Panel mounting interface	200 x 200 mm
Purpose	Universal
Operating hours (hours/days)	16/7
RMS rated power	20 W
Number of built-in speakers	2
DVI-D ports quantity	1
VGA (D-Sub) input ports	0
Internal memory	2.5 GB
Processor cores	4
Processor family	ARM Cortex
Processor frequency	1.7 GHz
Audio formats supported	AC3
Image formats supported	JPEG, PNG
Video formats supported	AVC, AVS, H.263, H.264, HEVC, MPEG1, MPEG2, MPEG4, VC-1, VP8, VP9
Internal storage capacity	8 GB
Operating system installed	Tizen 4.0
AC input voltage	100 - 240 V
Heat dissipation	375.1 BTU/h
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (sleep)	0.5 W
Power consumption (standby)	- W
Power consumption (typical)	67 W
Package depth	151 mm
Package width	1095 mm
Package height	676 mm
Package weight	13300 g
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80 %
L2 cache	2048 KB
User memory	4.12 GB
Memory clock speed	1500 MHz
Certification	60950-1, EMC B
Cables included	AC
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	48.3 mm
Width	967.5 mm
Height	577.7 mm
Weight	10000 g
