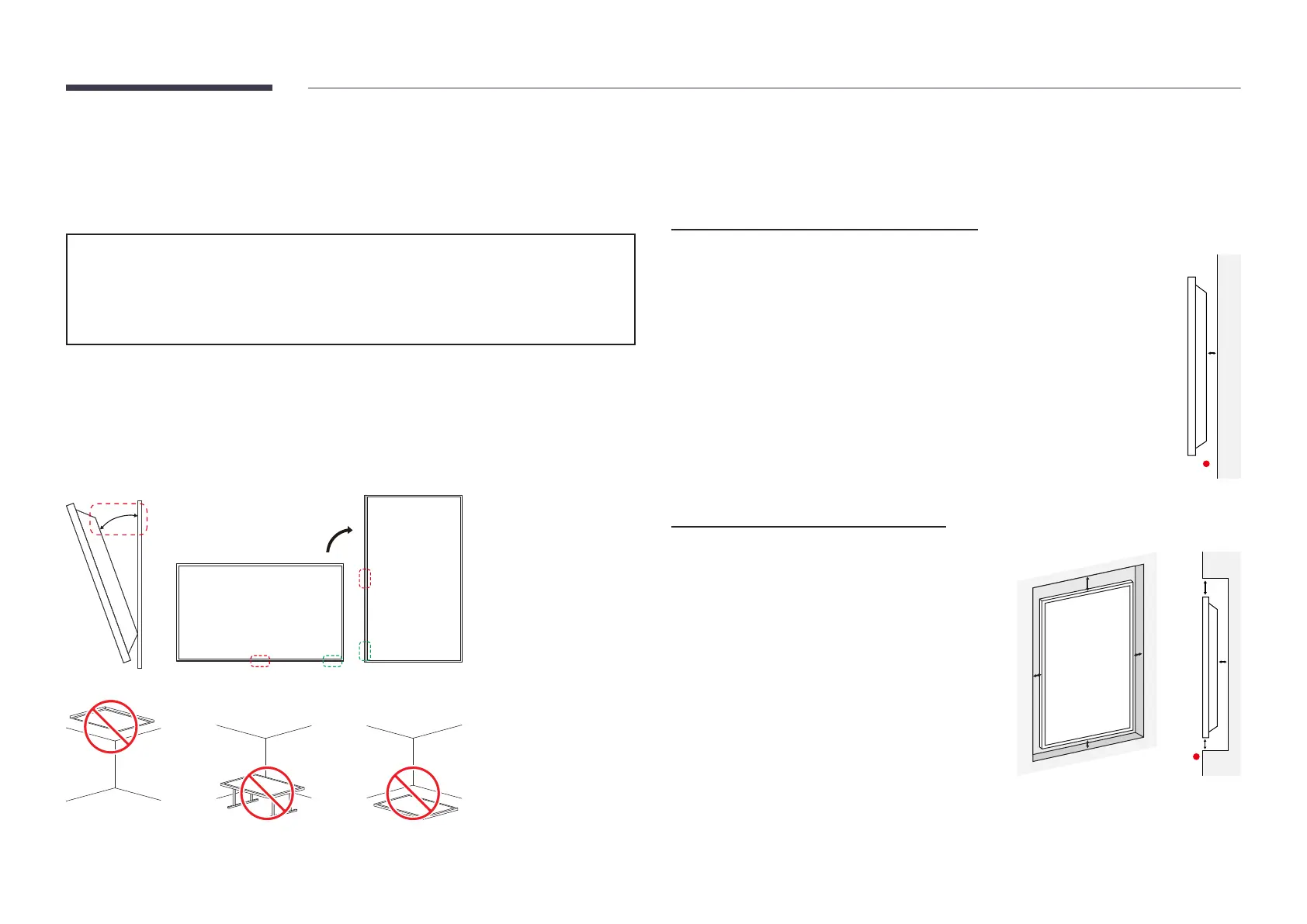

Before Installing the Product (Installation
Guide)
To prevent injury, this apparatus must be securely attached to the floor/wall in accordance
with the installation instructions.
• Ensure that an authorised installation company installs the wall mount.
• Otherwise, it may fall and cause personal injury.
• Make sure to install the specified wall mount.
Tilting Angle and Rotation
"
Contact Samsung Customer Service Centre for further details.
• The product can be tilted at a maximum angle of 15° from a perpendicular wall surface.
• To use the product in Portrait mode, rotate clockwise until the power indicator (A or B) is
positioned as shown in the images below.
15°
A
B
A
B
"
Do not use this model installed on a ceiling, floor, or table.
Ventilation
"
Contact Samsung Customer Service Centre for further details.
Installation on a Perpendicular Wall
A Minimum 40 mm
B Ambient temperature: Under 35 °C
"
When installing the product on a perpendicular wall, allow at least
40 mm of space between the product and wall surface for ventilation
and ensure that the ambient temperature is kept below 35 °C.
A
B
Installation on an Indented Wall
A Minimum 40 mm
B Minimum 70 mm
C Minimum 50 mm
D Minimum 50 mm
E Ambient temperature: Under 35 °C
"
When installing the product on an indented
wall, allow at least the space specified above
between the product and wall for ventilation
and ensure that the ambient temperature is
kept below 35 °C.
B
D
C
D
B
C
E
A

Samsung QB43R Specifications

General

Color gamut	92 %
Pixel pitch	0.2451 x 0.2451 mm
Response time	8 ms
Display diagonal	43 \
Display brightness	350 cd/m²
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	48 - 75 Hz
Horizontal scan range	30 - 81 kHz
LED backlighting type	Edge-LED BLU
Contrast ratio (typical)	5000:1
Display number of colors	16.78 million colors
Active display area (W x H)	941.184 x 529.416 mm
Dynamic contrast ratio marketing name	Mega Contrast
Product color	Black
Product design	Digital signage flat panel
Bezel width (side)	9.2 mm
Placement supported	Indoor
Bezel width (bottom)	11.2 mm
Panel mounting interface	200 x 200 mm
Purpose	Universal
Operating hours (hours/days)	16/7
RMS rated power	20 W
Number of built-in speakers	2
DVI-D ports quantity	1
VGA (D-Sub) input ports	0
Internal memory	2.5 GB
Processor cores	4
Processor family	ARM Cortex
Processor frequency	1.7 GHz
Audio formats supported	AC3
Image formats supported	JPEG, PNG
Video formats supported	AVC, AVS, H.263, H.264, HEVC, MPEG1, MPEG2, MPEG4, VC-1, VP8, VP9
Internal storage capacity	8 GB
Operating system installed	Tizen 4.0
AC input voltage	100 - 240 V
Heat dissipation	375.1 BTU/h
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (sleep)	0.5 W
Power consumption (standby)	- W
Power consumption (typical)	67 W
Package depth	151 mm
Package width	1095 mm
Package height	676 mm
Package weight	13300 g
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80 %
L2 cache	2048 KB
User memory	4.12 GB
Memory clock speed	1500 MHz
Certification	60950-1, EMC B
Cables included	AC
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	48.3 mm
Width	967.5 mm
Height	577.7 mm
Weight	10000 g
