installation & connection
14_ installation & connection
INITIAL SETUP

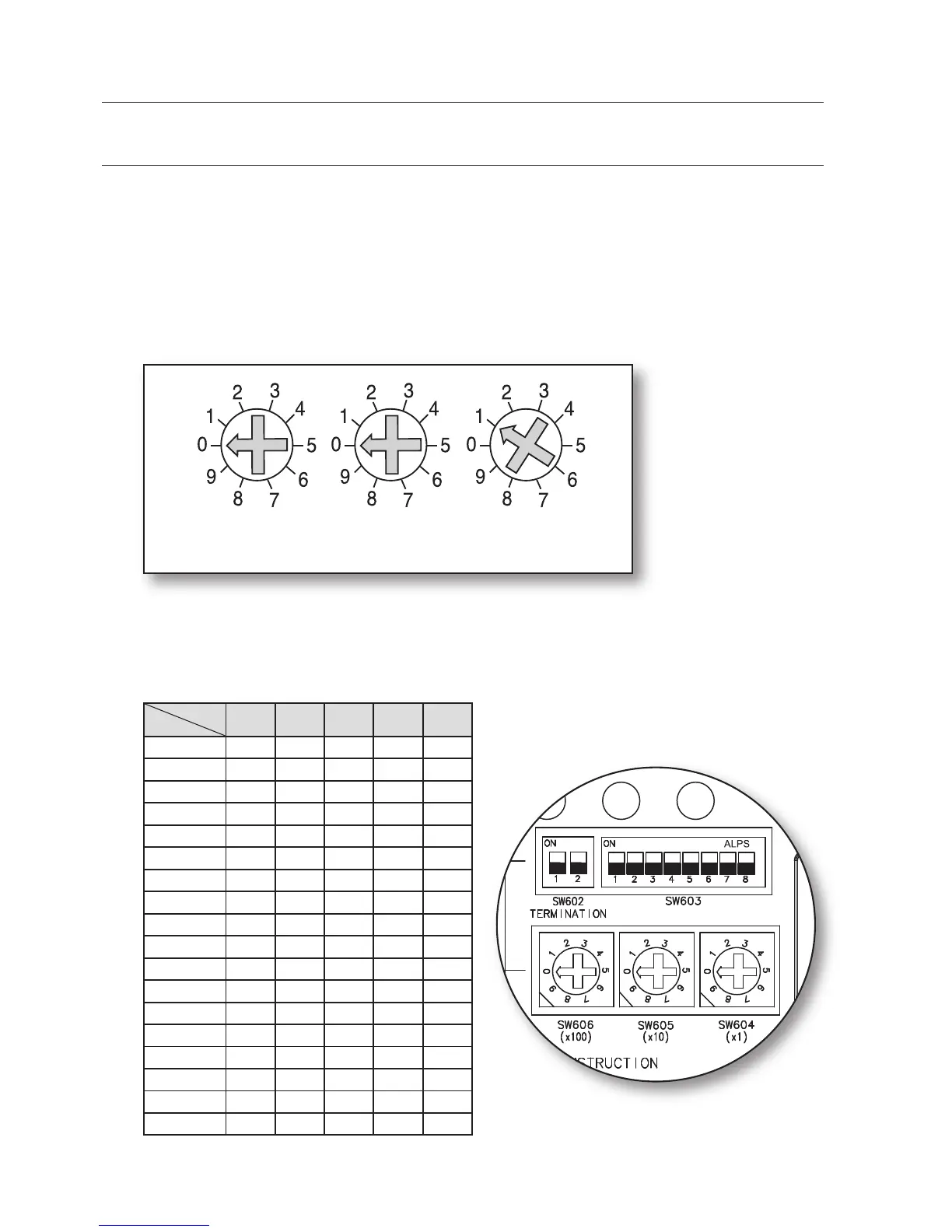

Camera Address Setup
Use SW606, SW605, and SW604 to specify the camera address.
You can specify between 0 and 255 for the address, where the hundreds digit is
with SW606, the tens digit with SW605, and the ones digit with SW604.
ex) Camera address: If the address is 1, follow the steps in the figure below.
Communication Protocol Setup
Use pins #1~#4 of SW603 to specify the communication protocol.
PIN
Comp
PIN1 PIN2 PIN3 PIN4 PIN7
A OFF OFF OFF OFF OFF
B ON OFF OFF OFF OFF
C OFF ON OFF OFF OFF
D ON ON OFF OFF OFF
E OFF OFF ON OFF OFF
--- ON OFF ON OFF OFF
--- OFF ON ON OFF OFF
H ON ON ON OFF OFF
I OFF OFF OFF ON OFF
J ON OFF OFF ON OFF
--- OFF ON OFF ON OFF
--- ON ON OFF ON OFF
--- OFF OFF ON ON OFF
N ON OFF ON ON OFF
O OFF ON ON ON OFF
P ON ON ON ON OFF
Q OFF OFF OFF OFF ON
R ON OFF OFF OFF ON
A : SAMSUNG HALF
B : SAMSUNG FULL
<Bottom of the camera holder>
SW606
(x100)
SW605
(x10)
SW604
(x1)
To Next Page
