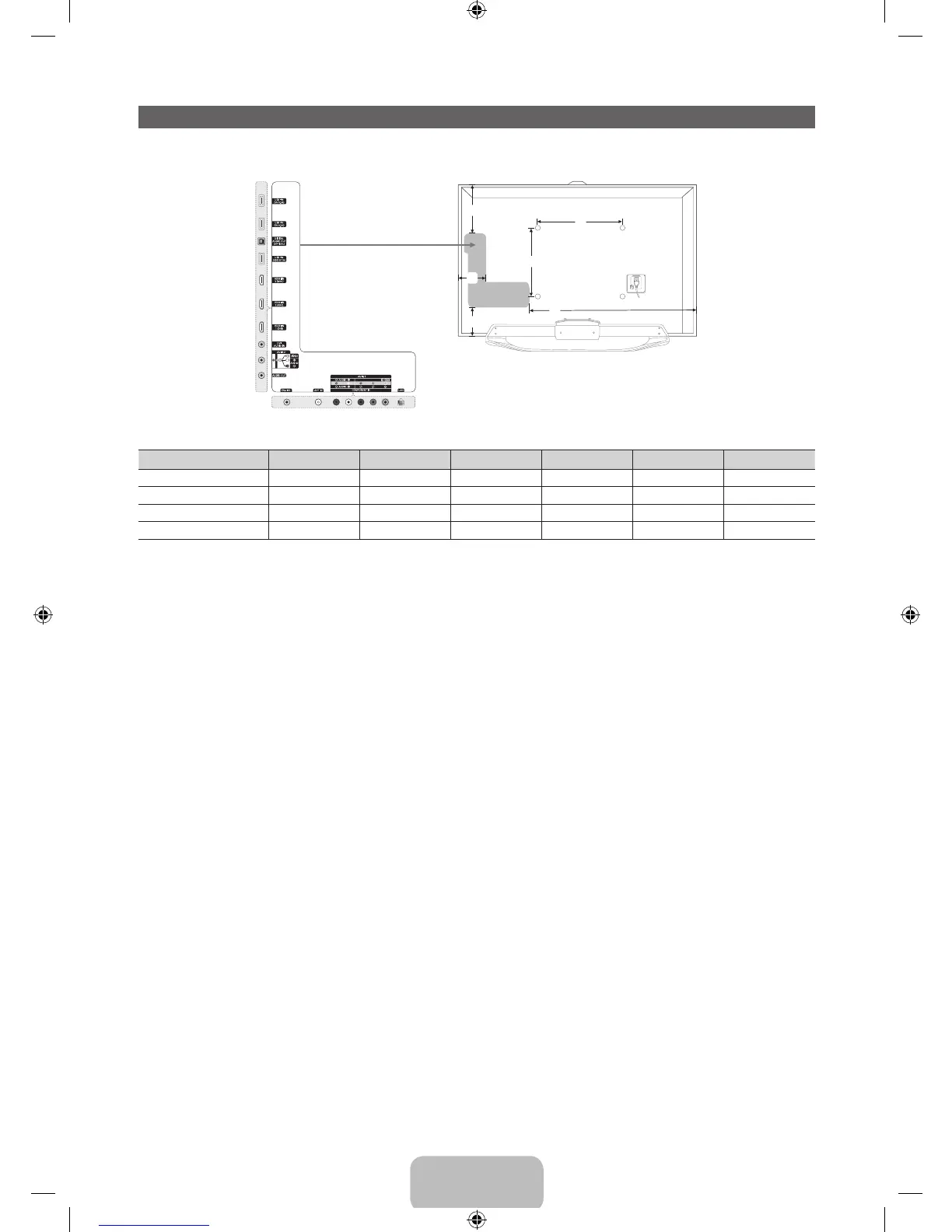

Dimensions
■ Jack panel detail / Rear view
4
5
6
3
1
2
(Unit: inches)
Model name
1 2 3 4 5 6
UN46ES8000 15.7 15.7 27.7 4.9 4.7 3.8
UN55ES8000 15.7 15.7 33.1 6.2 4.6 7.3
UN60ES8000 15.7 15.7 35.8 8.9 6.0 9.3
UN65ES8000 15.7 15.7 38.0 11.1 6.1 11.9
NOTE: All drawings are not necessarily to scale. Some dimensions are subject to change without prior
notice. Refer to the dimensions prior to performing installation of your TV. Not responsible for typographical
or printed errors.
