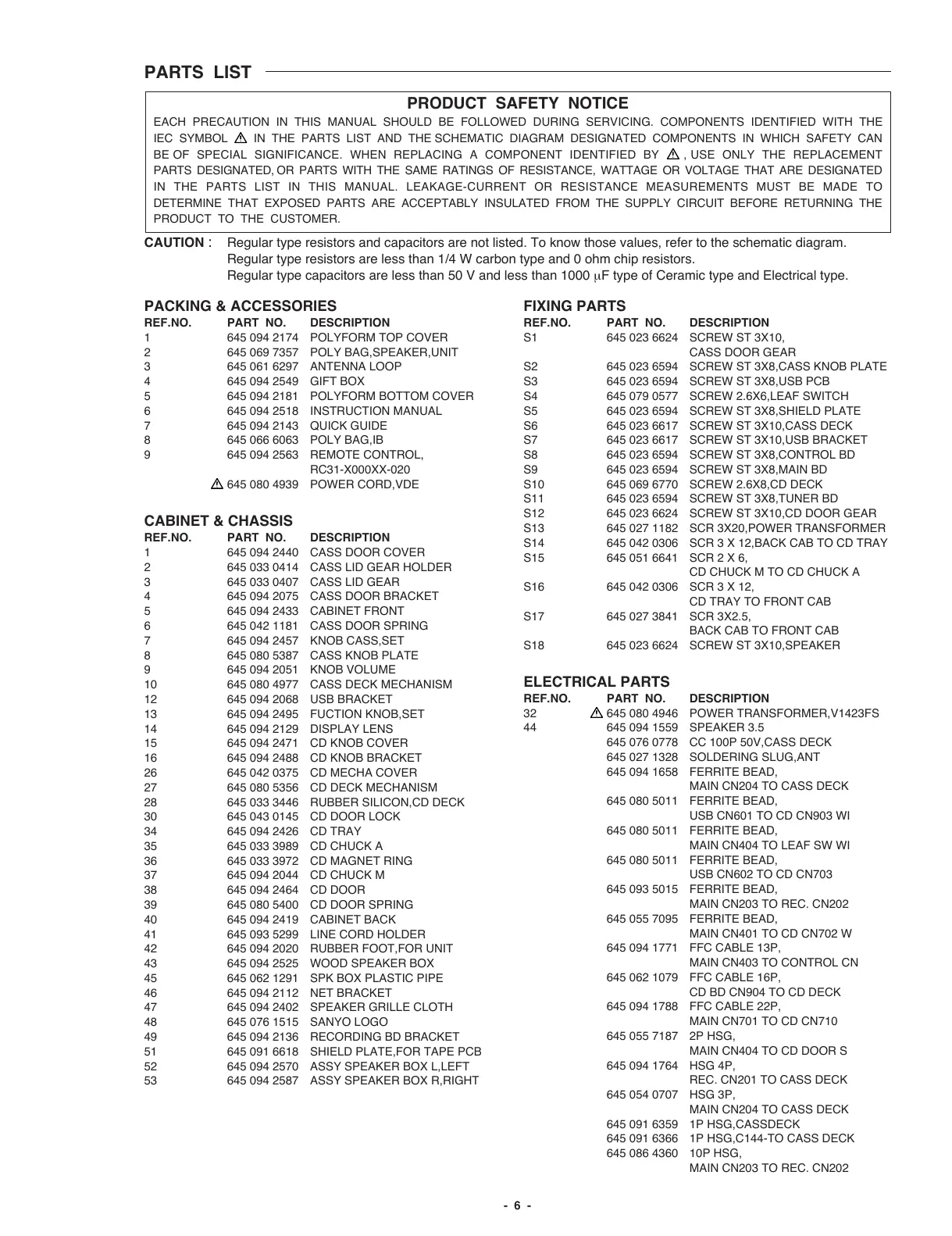

PARTS LIST
PRODUCT SAFETY NOTICE
EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH THE
IEC SYMBOL IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATED COMPONENTS IN WHICH SAFETY CAN
BE OF SPECIAL SIGNIFICANCE. WHEN REPLACING A COMPONENT IDENTIFIED BY , USE ONLY THE REPLACEMENT
PARTS DESIGNATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THAT ARE DESIGNATED
IN THE PARTS LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST BE MADE TO
DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE RETURNING THE
PRODUCT TO THE CUSTOMER.
CAUTION : Regular type resistors and capacitors are not listed. To know those values, refer to the schematic diagram.
Regular type resistors are less than 1/4 W carbon type and 0 ohm chip resistors.
Regular type capacitors are less than 50 V and less than 1000 µF type of Ceramic type and Electrical type.
PACKING & ACCESSORIES
REF.NO. PART NO. DESCRIPTION
1 645 094 2174 POLYFORM TOP COVER
2 645 069 7357 POLY BAG,SPEAKER,UNIT
3 645 061 6297 ANTENNA LOOP
4 645 094 2549 GIFT BOX
5 645 094 2181 POLYFORM BOTTOM COVER
6 645 094 2518 INSTRUCTION MANUAL
7 645 094 2143 QUICK GUIDE
8 645 066 6063 POLY BAG,IB
9 645 094 2563 REMOTE CONTROL,
RC31-X000XX-020
645 080 4939 POWER CORD,VDE
CABINET & CHASSIS
REF.NO. PART NO. DESCRIPTION
1 645 094 2440 CASS DOOR COVER
2 645 033 0414 CASS LID GEAR HOLDER
3 645 033 0407 CASS LID GEAR
4 645 094 2075 CASS DOOR BRACKET
5 645 094 2433 CABINET FRONT
6 645 042 1181 CASS DOOR SPRING
7 645 094 2457 KNOB CASS,SET
8 645 080 5387 CASS KNOB PLATE
9 645 094 2051 KNOB VOLUME
10 645 080 4977 CASS DECK MECHANISM
12 645 094 2068 USB BRACKET
13 645 094 2495 FUCTION KNOB,SET
14 645 094 2129 DISPLAY LENS
15 645 094 2471 CD KNOB COVER
16 645 094 2488 CD KNOB BRACKET
26 645 042 0375 CD MECHA COVER
27 645 080 5356 CD DECK MECHANISM
28 645 033 3446 RUBBER SILICON,CD DECK
30 645 043 0145 CD DOOR LOCK
34 645 094 2426 CD TRAY
35 645 033 3989 CD CHUCK A
36 645 033 3972 CD MAGNET RING
37 645 094 2044 CD CHUCK M
38 645 094 2464 CD DOOR
39 645 080 5400 CD DOOR SPRING
40 645 094 2419 CABINET BACK
41 645 093 5299 LINE CORD HOLDER
42 645 094 2020 RUBBER FOOT,FOR UNIT
43 645 094 2525 WOOD SPEAKER BOX
45 645 062 1291 SPK BOX PLASTIC PIPE
46 645 094 2112 NET BRACKET
47 645 094 2402 SPEAKER GRILLE CLOTH
48 645 076 1515 SANYO LOGO
49 645 094 2136 RECORDING BD BRACKET
51 645 091 6618 SHIELD PLATE,FOR TAPE PCB
52 645 094 2570 ASSY SPEAKER BOX L,LEFT
53 645 094 2587 ASSY SPEAKER BOX R,RIGHT
FIXING PARTS
REF.NO. PART NO. DESCRIPTION
S1 645 023 6624 SCREW ST 3X10,
CASS DOOR GEAR
S2 645 023 6594 SCREW ST 3X8,CASS KNOB PLATE
S3 645 023 6594 SCREW ST 3X8,USB PCB
S4 645 079 0577 SCREW 2.6X6,LEAF SWITCH
S5 645 023 6594 SCREW ST 3X8,SHIELD PLATE
S6 645 023 6617 SCREW ST 3X10,CASS DECK
S7 645 023 6617 SCREW ST 3X10,USB BRACKET
S8 645 023 6594 SCREW ST 3X8,CONTROL BD
S9 645 023 6594 SCREW ST 3X8,MAIN BD
S10 645 069 6770 SCREW 2.6X8,CD DECK
S11 645 023 6594 SCREW ST 3X8,TUNER BD
S12 645 023 6624 SCREW ST 3X10,CD DOOR GEAR
S13 645 027 1182 SCR 3X20,POWER TRANSFORMER
S14 645 042 0306 SCR 3 X 12,BACK CAB TO CD TRAY
S15 645 051 6641 SCR 2 X 6,
CD CHUCK M TO CD CHUCK A
S16 645 042 0306 SCR 3 X 12,
CD TRAY TO FRONT CAB
S17 645 027 3841 SCR 3X2.5,
BACK CAB TO FRONT CAB
S18 645 023 6624 SCREW ST 3X10,SPEAKER
ELECTRICAL PARTS
REF.NO. PART NO. DESCRIPTION
32 645 080 4946 POWER TRANSFORMER,V1423FS
44 645 094 1559 SPEAKER 3.5
645 076 0778 CC 100P 50V,CASS DECK
645 027 1328 SOLDERING SLUG,ANT
645 094 1658 FERRITE BEAD,
MAIN CN204 TO CASS DECK
645 080 5011 FERRITE BEAD,
USB CN601 TO CD CN903 WI
645 080 5011 FERRITE BEAD,
MAIN CN404 TO LEAF SW WI
645 080 5011 FERRITE BEAD,
USB CN602 TO CD CN703
645 093 5015 FERRITE BEAD,
MAIN CN203 TO REC. CN202
645 055 7095 FERRITE BEAD,
MAIN CN401 TO CD CN702 W
645 094 1771 FFC CABLE 13P,
MAIN CN403 TO CONTROL CN
645 062 1079 FFC CABLE 16P,
CD BD CN904 TO CD DECK
645 094 1788 FFC CABLE 22P,
MAIN CN701 TO CD CN710
645 055 7187 2P HSG,
MAIN CN404 TO CD DOOR S
645 094 1764 HSG 4P,
REC. CN201 TO CASS DECK
645 054 0707 HSG 3P,
MAIN CN204 TO CASS DECK
645 091 6359 1P HSG,CASSDECK
645 091 6366 1P HSG,C144-TO CASS DECK
645 086 4360 10P HSG,
MAIN CN203 TO REC. CN202
