GETTING STARTED

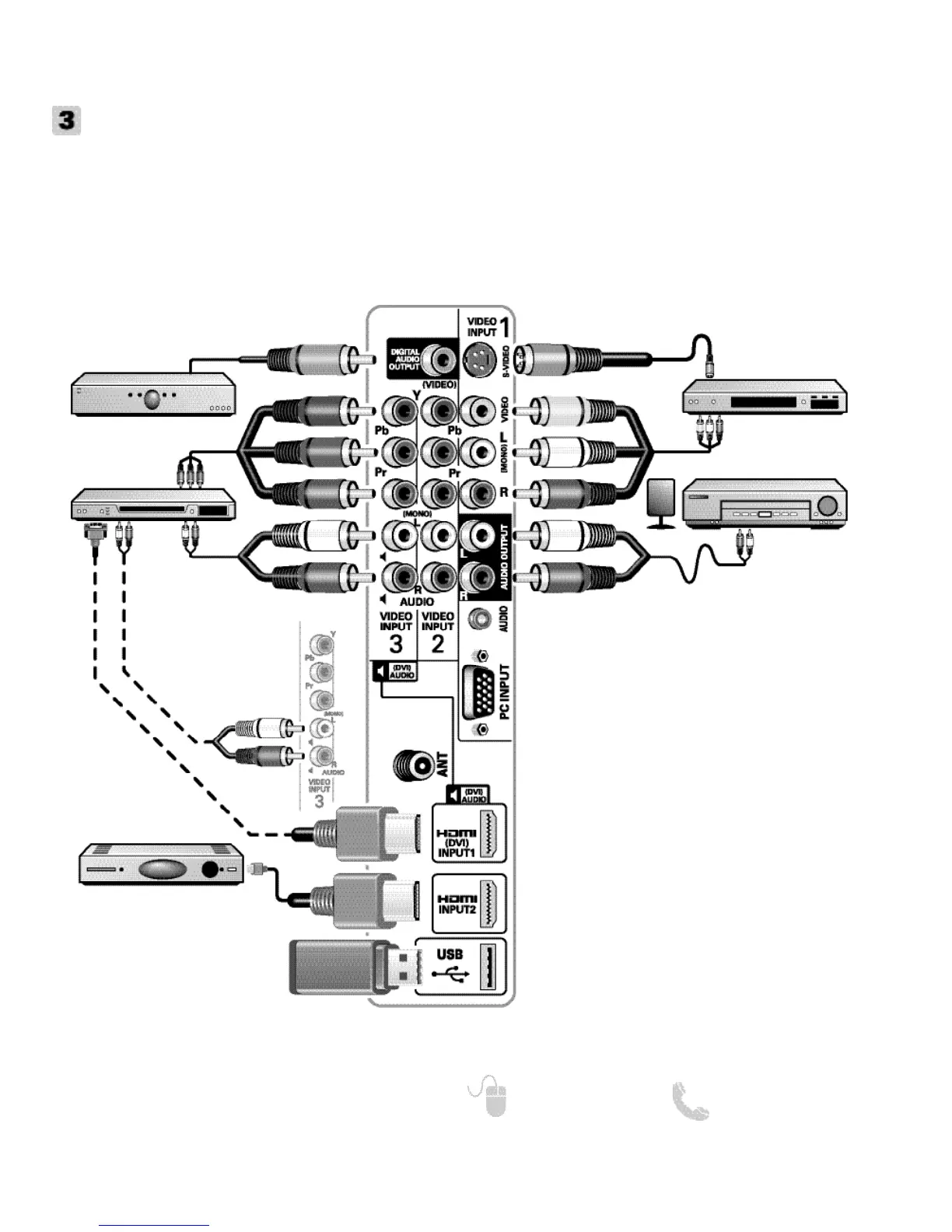

AUDIO / VIDEO CONNECTIONS
DVD PLAYER
(or similar device)
VCR
(or analog device)
MULTICHANNEL
RECEIVER
NOTE: Audio/Video cables are not supplied
Digital Audio Output is used to hookup a
multichannel receiver with the use of a phono-
type digital audio cable.
COMPONENT connections will accept SDTV,
EDTV and HDTV video signals. Use them for
great image quality from digital devices such
as a DVD player or Video Game system.
USB FLASH
DRIVE
HDMI INPUT1 & 2 are used to hookup HD
digital devices such as a Blu-ray player, HD
Cable Box, HD Satellite Receiver or Video-
game System.
HDMI (DVI) INPUT1 can be used to hookup
a DVI device with the use of an appropriate
DVI to HDMI cable or adapter.
NOTE: VIDEO3 Audio L/R jacks need to be hooked
up to the DVI device as well.
USB input jack is used
to connect a USB mass
storage device to watch
digital images (JPEG
only.)
DVI
SATELLITE RECEIVER
(or similar device)
PC INPUT is used to hook up your PC or
Laptop and use your HDTV as a computer
monitor. See page 16 for details.
COMPOSITE connections are used to hookup
your analog equipment such as a VCR or an
older DVD player.
NOTE: Always match the color of your device’s output
jack, the connector and the HDTV’s input jack.
S-Video connection can replace the yellow
Video connection for enhanced video.
