Sanyo FW50D36F User Manual

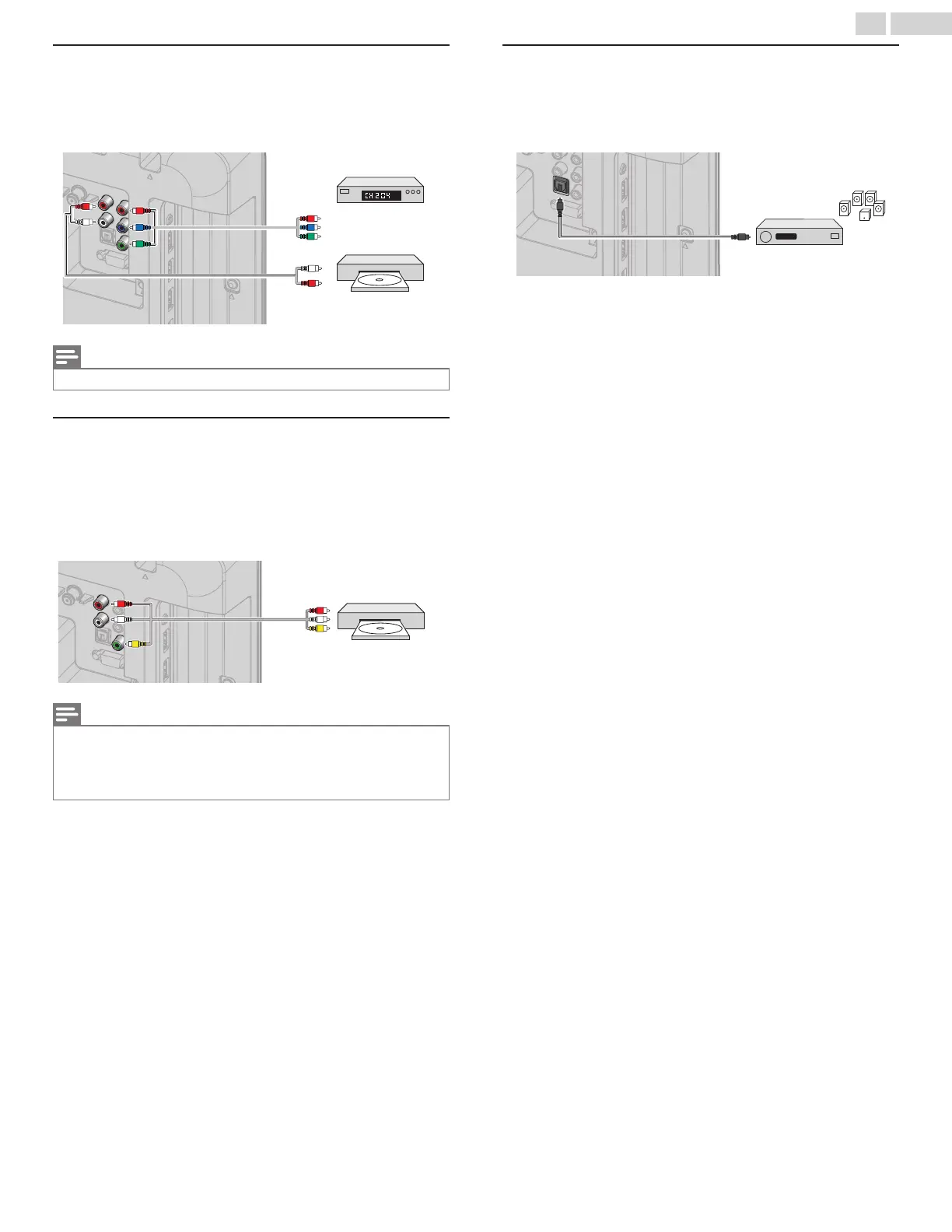

Component Analog Video Connection
Component Analog Video Connection offers Better Picture quality for
Video Devices connected to the Unit.
If you connect to the Unit’s Component Video (Y/Pb/Pr) Input jacks,
connect Analog Audio Cables to the Analog Audio (L/R) Input jacks.
Blu-ray Disc /
DVD Recorder
or
Set-top Box
Audio (L/R) cables
Audio (L/R) cables
Audio (L/R) cables
IN
IN
OUT
IN
OUT
IN
IN
IN
Component (Y/Pb/Pr)
Video cables
Component (Y/Pb/Pr)
Video cables
Component (Y/Pb/Pr)
Video cables
Note(s)
●
The Unit accepts 480i / 480p / 720p and 1080i of Video signals for this Connection.
Composite Analog Video Connection
Composite Analog Video Connection offers Standard Picture quality for
Video Devices connected to the Unit.
If you connect to the Unit’s Component/Composite Video (Y/VIDEO)
Input jack (green), connect Audio Cables to the Audio (L/R) Input jacks.
When the Audio is monaural, then only connect to the Audio L Input
jack.
DVD Player
Audio (L/R) + Video
cables
IN
IN
IN
Audio (L/R) + Video
cables
Audio (L/R) + Video
cables
Audio (L/R) + Video
cables
OUT
Note(s)
●
With this Unit, yellow cable must be connected to Y (green) jack on the Component Video
Input jacks.
●
Whenever you connect to the Composite Video Input jack (Y/VIDEO), you must disconnect
the Component Video Input jacks (Pb and Pr). If you leave those jacks connected, it may
cause an unstable picture.
Digital Audio Output Connection
If you connect this Unit to an External Digital Audio Device, you can enjoy
multi-channel Audio like 5.1ch Digital Broadcasting sound.
Use a Digital Audio Coaxial Cable to connect the Unit to External Digital
Audio Devices.
Digital Home
Theater Amplifier
OUT
OUT
OUT
ININ
Digital Audio
Optical cable
Digital Audio
Optical cable
Digital Audio
Optical cable
13 .English
Continued on next page.
